Description

Price

1

SHOCK ABSORBER ASSY, REAR

4XM-22210-30-00

Unavailable

2

DAMPER SUB ASSY

4XM-22201-30-00

Unavailable

3

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

4

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

5

CAP, AIR VALVE

509-23184-L0-00

$6.99

6

.. BUSH, REAR SHOCK ABSORBER

4MX-22216-00-00

Unavailable

7

.. RING, STOP

43M-22274-00-00

Unavailable

8

.. CIRCLIP

3Y6-23183-00-00

Unavailable

9

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

10

. SPRING (K=48)

4XM-22212-20-00

Unavailable

11

GUIDE, SPRING 1

3JD-22214-00-00

$28.99

12

. GUIDE, SPRING 2

3JD-22224-00-00

Unavailable

13

SEAL, DUST

3JD-22475-00-00

$24.99

14

. COLLAR, DISTANCE

3XJ-22253-00-00

Unavailable

15

SEAL, DUST

3JE-22475-00-00

$13.49

16

. COLLAR, DISTANCE

4EW-22253-00-00

Unavailable

17

SEAL, RING

4EW-22474-00-00

Unavailable

18

BOLT 1

3SP-22241-00-00

Unavailable

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

20

BOLT, WASHER BASED(3XJ)

90105-10614-00

Unavailable

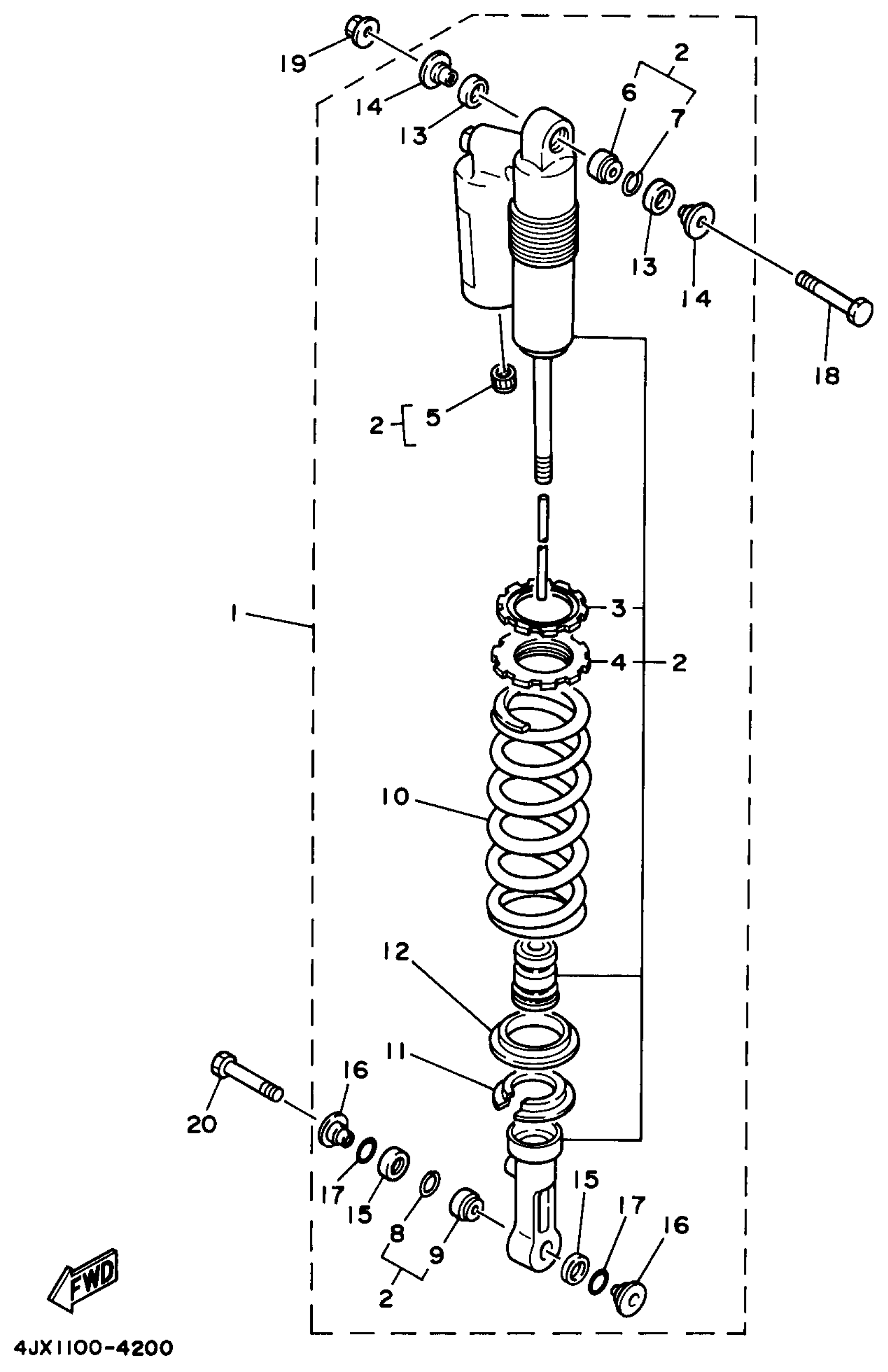

Yamaha YZ125J1 (YZ125) 4XM2 1997 REAR SUSPENSION Diagram

SHOCK ABSORBER ASSY, REAR

DAMPER SUB ASSY

GUIDE, SPRING 3

SEAT, SPRING UPPER

CAP, AIR VALVE

.. BUSH, REAR SHOCK ABSORBER

.. RING, STOP

.. CIRCLIP

BUSH, SHOCK ABSORBER LOWER

. SPRING (K=48)

GUIDE, SPRING 1

. GUIDE, SPRING 2

SEAL, DUST

. COLLAR, DISTANCE

SEAL, DUST

. COLLAR, DISTANCE

SEAL, RING

BOLT 1

NUT, SELF-LOCKING(JN5)

BOLT, WASHER BASED(3XJ)
