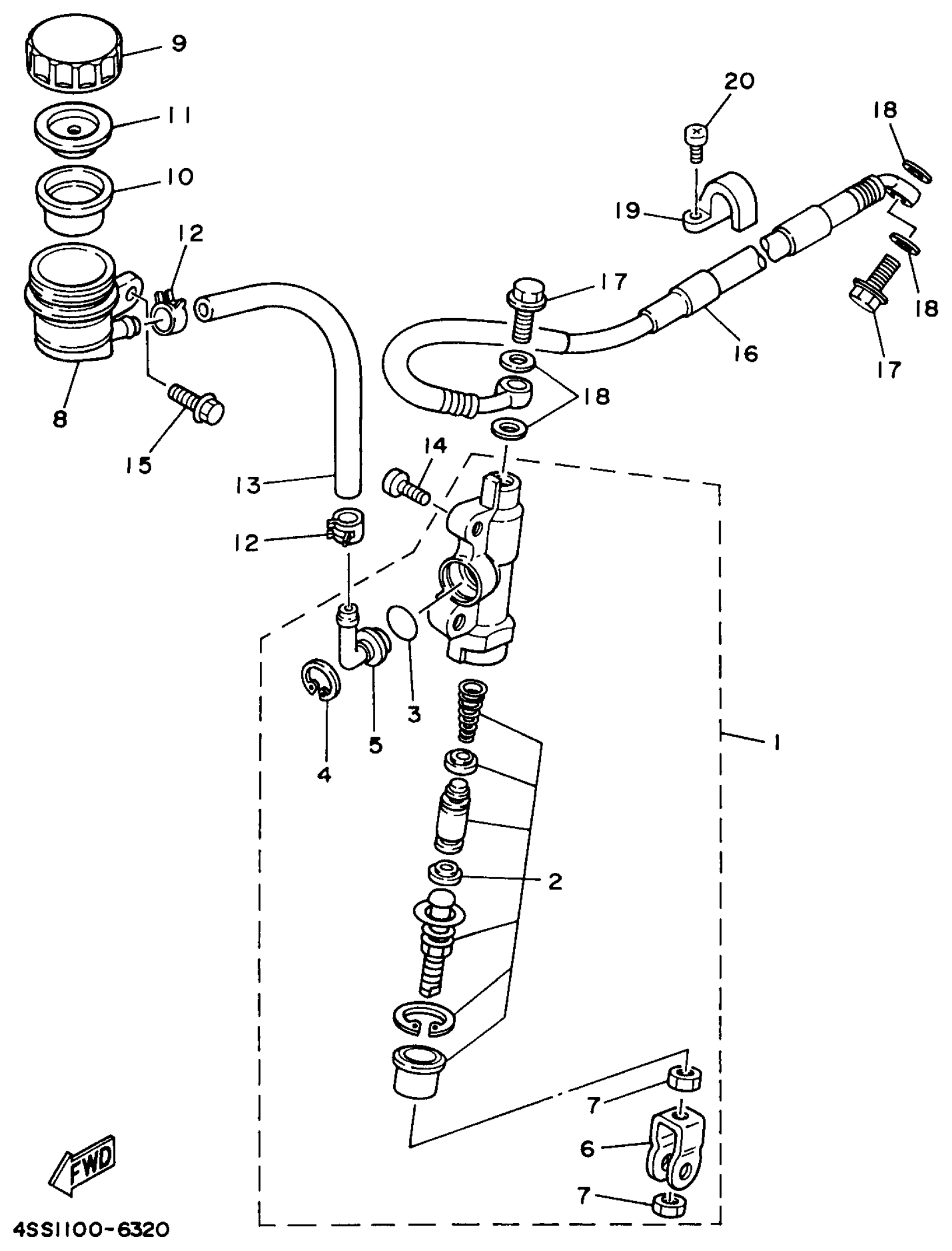

Yamaha YZ125J1 (YZ125) 4XM2 1997 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

3SP-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

4SS-W0042-50-00

$85.76

3

O-RING (22U)

93210-15566-00

$5.39

4

CIRCLIP

2VN-25866-00-00

$5.55

5

JOINT

2VN-2582A-50-00

$18.68

6

JOINT

3SP-27222-00-00

$20.83

7

NUT, HEXAGON SMALL

95317-08700-00

$6.57

8

TANK, RESERVOIR

4EW-25894-00-00

$20.53

9

CAP, RESERVOIR

3XP-25852-50-00

$17.15

10

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$18.32

11

BUSH,DIAPHRAGM

2VN-25855-00-00

$8.88

12

CLIP (7K7)

90467-11044-00

$4.89

13

HOSE (4EW)

90445-135H9-00

Unavailable

14

BOLT, BUTTON

92014-06016-00

$5.75

15

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

16

HOSE,BRAKE 2

4SS-25873-01-00

Unavailable

17

BOLT, UNION(3GM)

90401-10159-00

Unavailable

18

WASHER, PLATE(481)

90201-10118-00

Unavailable

19

HOLDER, BRAKE HOSE 2

2VM-25876-00-00

Unavailable

20

SCREW, TAPPING(6U1)

97780-50610-00

Unavailable
