- YZ125J1 (YZ125) 4XM2 1997
FRONT FORK

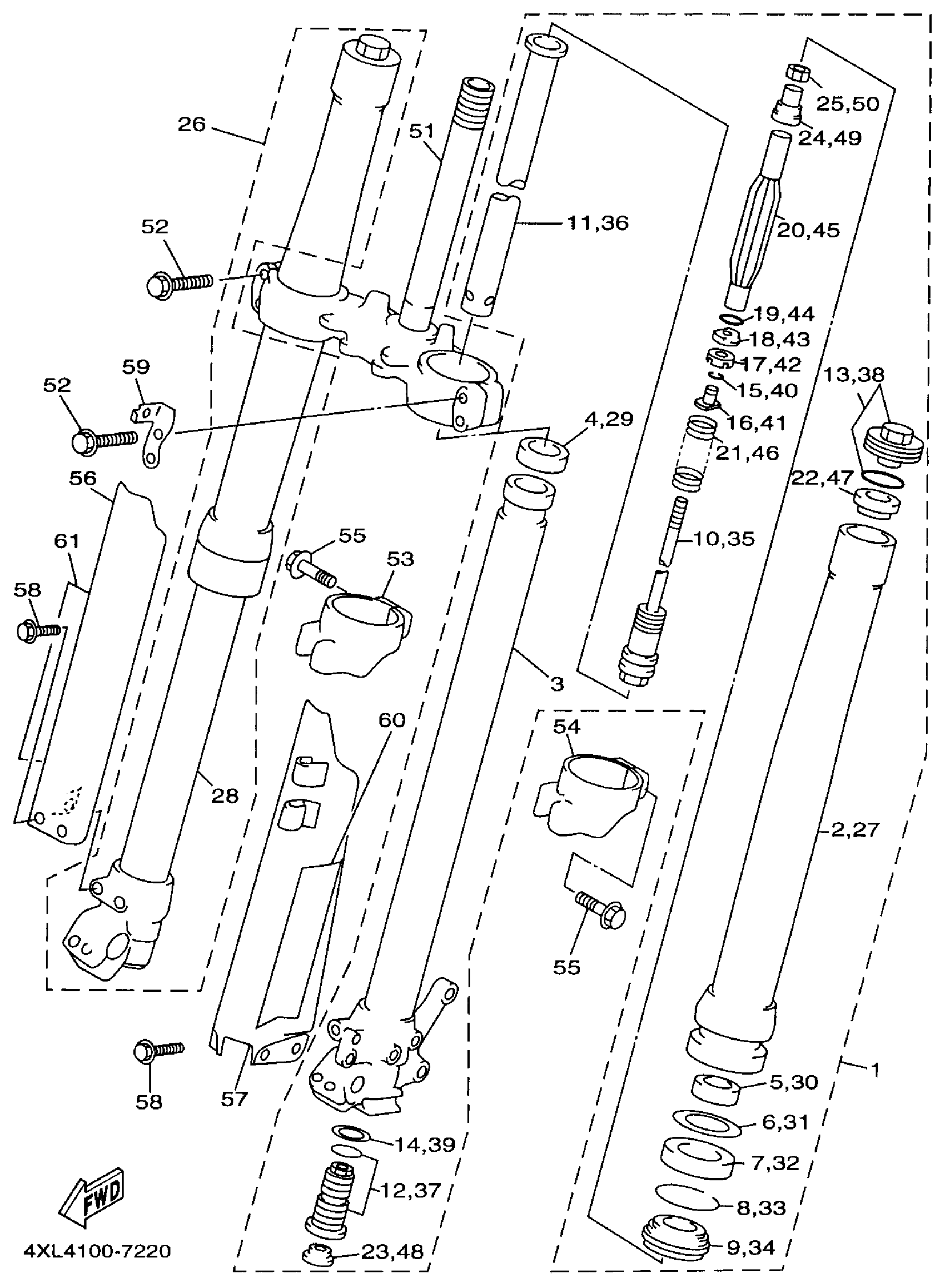

Yamaha YZ125J1 (YZ125) 4XM2 1997 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY (L.H)
4XM-23102-L0-00
Unavailable
2
. TUBE, OUTER (RIGHT)
4XM-23136-L0-00
Unavailable
3
. INNER TUBE COMP 2
4SS-23120-L0-00
Unavailable
5
METAL, SLIDE 1
4SS-23125-L0-00
Unavailable
10
. PISTON ROD ASSEMBLY
4XM-2314A-L0-00
Unavailable
11
. CYLINDER COMP, FRONT FORK
4SS-23170-L0-00
Unavailable
12
. VALVE COMP
4XM-2316A-L0-00
Unavailable
13
. BOLT , CAP
4SS-23111-L0-00
Unavailable
15
. RING, SNAP
3SP-23153-L0-00
Unavailable
16
. COLLAR
3SP-23113-L0-00
Unavailable
17
. SPACER, OIL LOCK
3SP-23166-L0-00
Unavailable
18
. NUT, SPECIAL
3SP-23393-L0-00
Unavailable
19
. O-RING
3JD-23147-L0-00
Unavailable
20
. SEAT, SPRING UPPER
4SS-23142-L0-00
Unavailable
21
SPRING (K=3.92N/MM)
4SS-23141-30-00
Unavailable
21
SPRING (K=4.02N/MM)
4SS-23141-40-00
Unavailable
22
SEAT, SPRING LOWER
4SS-23143-L0-00
Unavailable
23
PLUG
3JD-2312G-L0-00
Unavailable
24
. COLLAR 1
4SS-23363-L0-00
Unavailable
25
NUT
3SP-23357-L0-00
Unavailable
26
FRONT FORK ASSEMBLY (R.H)
4XM-23103-L0-00
Unavailable
27
. TUBE, OUTER (RIGHT)
4XM-23136-L0-00
Unavailable
28
. INNER TUBE COMP1
4SS-23110-L0-00
Unavailable
30
METAL, SLIDE 1
4SS-23125-L0-00
Unavailable
35
. PISTON ROD ASSEMBLY
4XM-2314A-L0-00
Unavailable
36
. CYLINDER COMP, FRONT FORK
4SS-23170-L0-00
Unavailable
37
. VALVE COMP
4XM-2316A-L0-00
Unavailable
38
. BOLT , CAP
4SS-23111-L0-00
Unavailable
40
. RING, SNAP
3SP-23153-L0-00
Unavailable
41
. COLLAR
3SP-23113-L0-00
Unavailable
42
. SPACER, OIL LOCK
3SP-23166-L0-00
Unavailable
43
. NUT, SPECIAL
3SP-23393-L0-00
Unavailable
44
. O-RING
3JD-23147-L0-00
Unavailable
45
. SEAT, SPRING UPPER
4SS-23142-L0-00
Unavailable
46
SPRING (K=3.92N/MM)
4SS-23141-30-00
Unavailable
46
SPRING (K=4.02N/MM)
4SS-23141-40-00
Unavailable
47
SEAT, SPRING LOWER
4SS-23143-L0-00
Unavailable
48
PLUG
3JD-2312G-L0-00
Unavailable
49
. COLLAR 1
4SS-23363-L0-00
Unavailable
50
NUT
3SP-23357-L0-00
Unavailable
51
UNDER BRACKET COMP.
4SS-23340-L0-00
Unavailable
52
BOLT, FLANGE(4KG)
95024-08040-00
Unavailable
53
PROTECTER GUIDE COMP., 2
4SS-2314G-L0-00
Unavailable
54
PROTECTER GUIDE COMP., 1
5DH-2314F-L0-00
Unavailable
55
BOLT 1
4SS-23346-L0-00
Unavailable
56
PROTECTOR COMP., 2
4SS-2314J-00-00
Unavailable
57
PROTECTOR COMP., 1
4SS-2314H-00-00
Unavailable
58
BOLT 2
3SP-23356-L0-00
Unavailable
59
GUIDE, CABLE
4EW-2331E-L1-00
Unavailable
60
EMBLEM, YAMAHA
99243-00160-00
Unavailable
61
EMBLEM, YAMAHA
99243-00160-00
Unavailable
