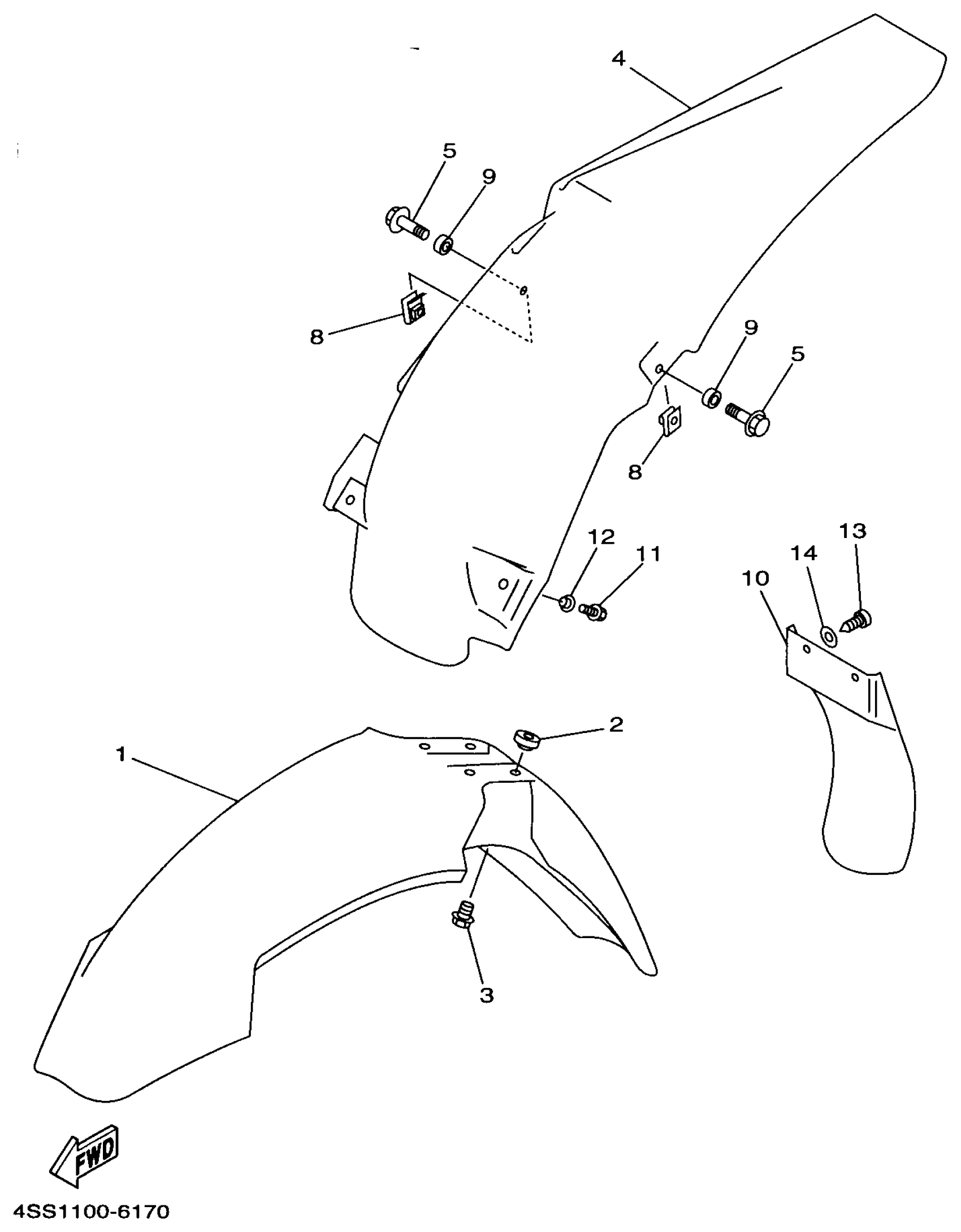

Yamaha YZ125J1 (YZ125) 4XM2 1997 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4DA-21511-10-00

Unavailable

2

COLLAR

3JD-21748-00-00

$4.01

3

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

4

FENDER,REAR

5BE-21611-00-00

Unavailable

5

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

6

BOLT, SMALL FLANGE

95027-06030-00

$3.40

7

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

8

NUT, SPRING (26H)

90183-06023-00

$6.94

9

COLLAR(4EW)

90387-0701A-00

$6.22

10

GUARD, FLAP

4ES-21642-01-00

$33.68

11

. BOLT, FLANGE

95027-06020-00

$0.93

12

COLLAR

90387-06009-00

$7.37

13

SCREW, TRUSS TAP.

97707-60016-00

$0.98

14

WASHER, PLATE

90201-06020-00

$5.86
