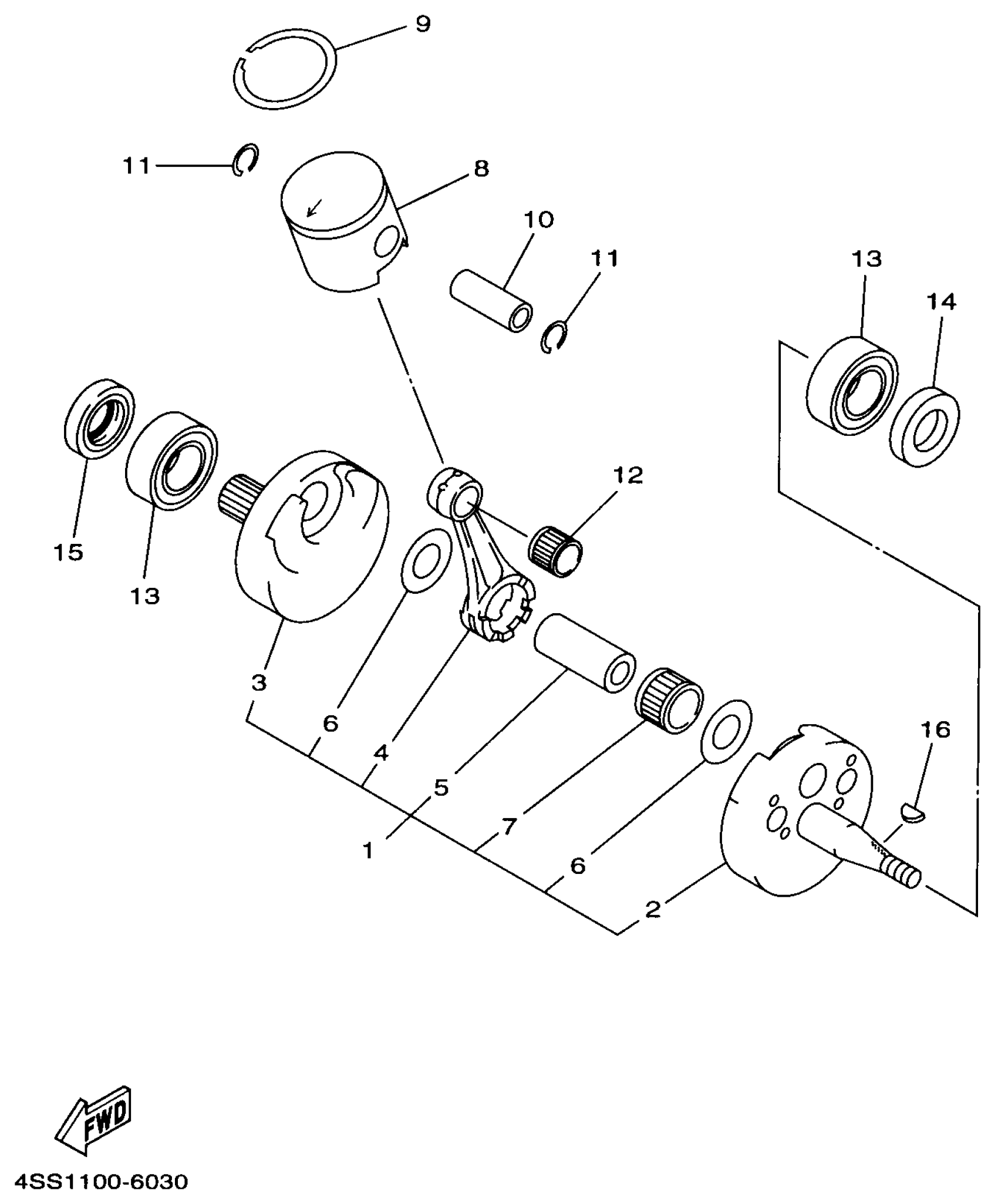

Yamaha YZ125J1 (YZ125) 4XM2 1997 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5DH-11400-00-00

Unavailable

2

CRANKSHAFT

4SS-11410-10-00

Unavailable

3

. CRANKSHAFT

4SS-11420-00-00

Unavailable

4

ROD, CONNECTING

4PE-11651-02-00

Unavailable

5

PIN, CRANK 1

3JD-11681-10-00

$68.99

6

WASHER (29L)

90209-22248-00

Unavailable

7

BEARING

93310-52238-00

$74.99

8

PISTON (STD)

4XM-11631-30-A0

Unavailable

8

PISTON (STD)

4XM-11631-30-B0

$148.99

8

PISTON (STD)

4XM-11631-30-C0

Unavailable

8

PISTON (STD)

4XM-11631-30-D0

$163.99

9

RING, PISTON

4JY-11611-00-00

Unavailable

10

PIN, PISTON

4XM-11633-01-00

Unavailable

11

CIRCLIP (4G0)

93450-16068-00

$7.49

12

BEARING, CYLINDRICAL(4XM)

93310-315S4-00

$41.99

13

BEARING(1LX)

93306-37204-00

Unavailable

14

OIL SEAL(1LX)

93102-22363-00

Unavailable

15

OIL SEAL(3KX)

93103-32171-00

Unavailable

16

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
