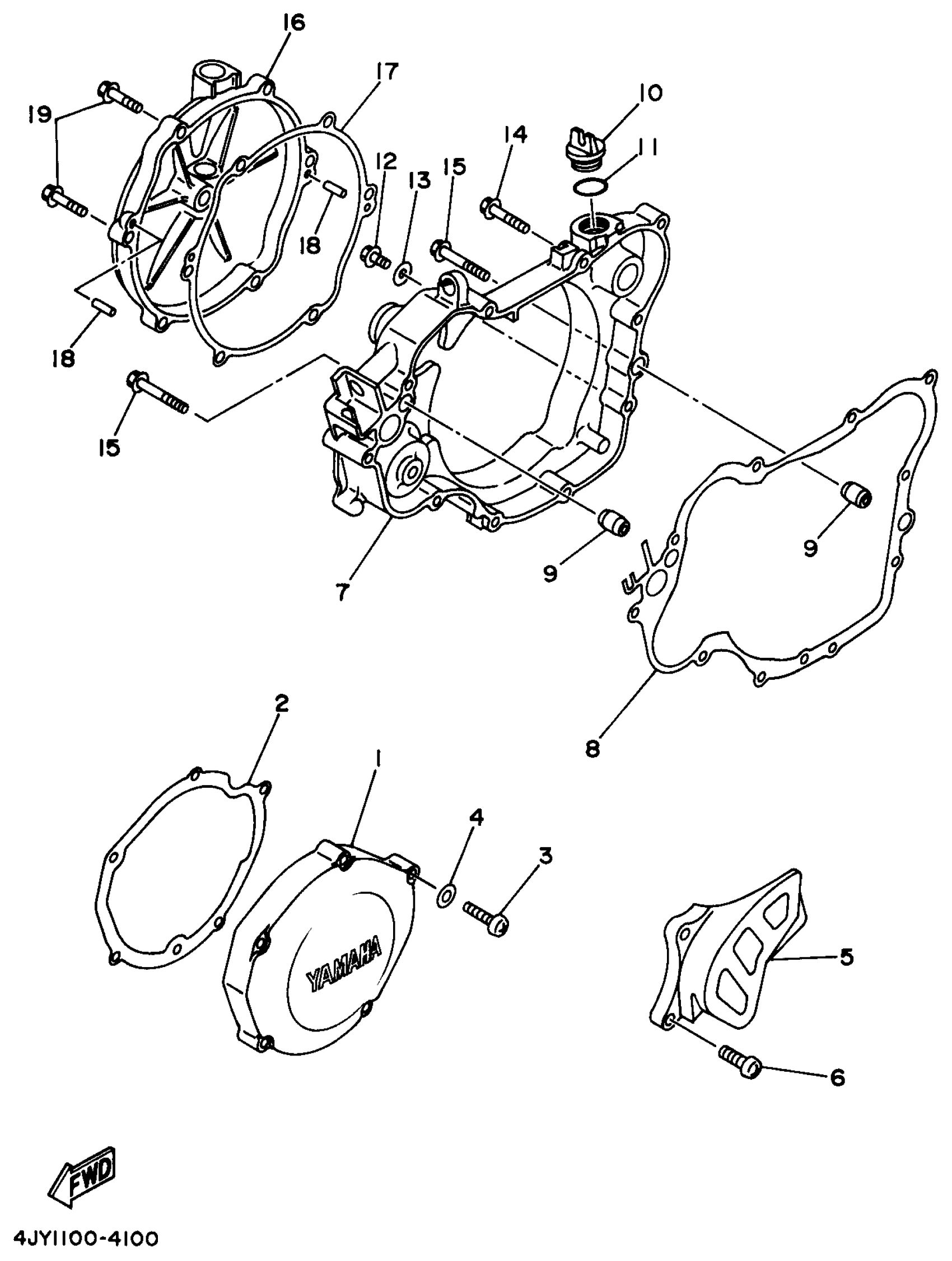

Yamaha YZ125J1 (YZ125) 4XM2 1997 CRANKCASE COVER1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4JY-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4JY-15451-01-00

$19.99

3

SCREW, PAN

98517-06030-00

Unavailable

4

WASHER(6TA)

92907-06600-00

$2.72

5

COVER, CRANKCASE 2

4EX-15421-00-00

Unavailable

6

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

7

COVER, CRANKCASE 3

4JY-15431-00-00

Unavailable

8

GASKET, CRANKCASE COVER 3

4JY-15462-00-00

$25.99

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

PLUG, OIL

3Y1-15363-10-00

$18.49

11

O-RING (646)

93210-19123-00

Unavailable

12

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

13

GASKET 256113960000

90430-06014-00

Unavailable

14

BOLT, SMALL FLANGE

95027-06030-00

$3.98

15

BOLT, WASHER BASED(4EB)

90105-06792-00

$2.39

16

COVER, GENERATOR

4JY-15415-00-00

Unavailable

17

GASKET, CARBURETOR COVER 2

4JY-15463-01-00

Unavailable

18

PIN,DOWEL (603)

93604-10011-00

Unavailable

19

BOLT, WASHER BASED(4KG)

90105-060A0-00

Unavailable
