1982 Yamaha YZ125J (YZ125J) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1982 Yamaha YZ125J (YZ125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

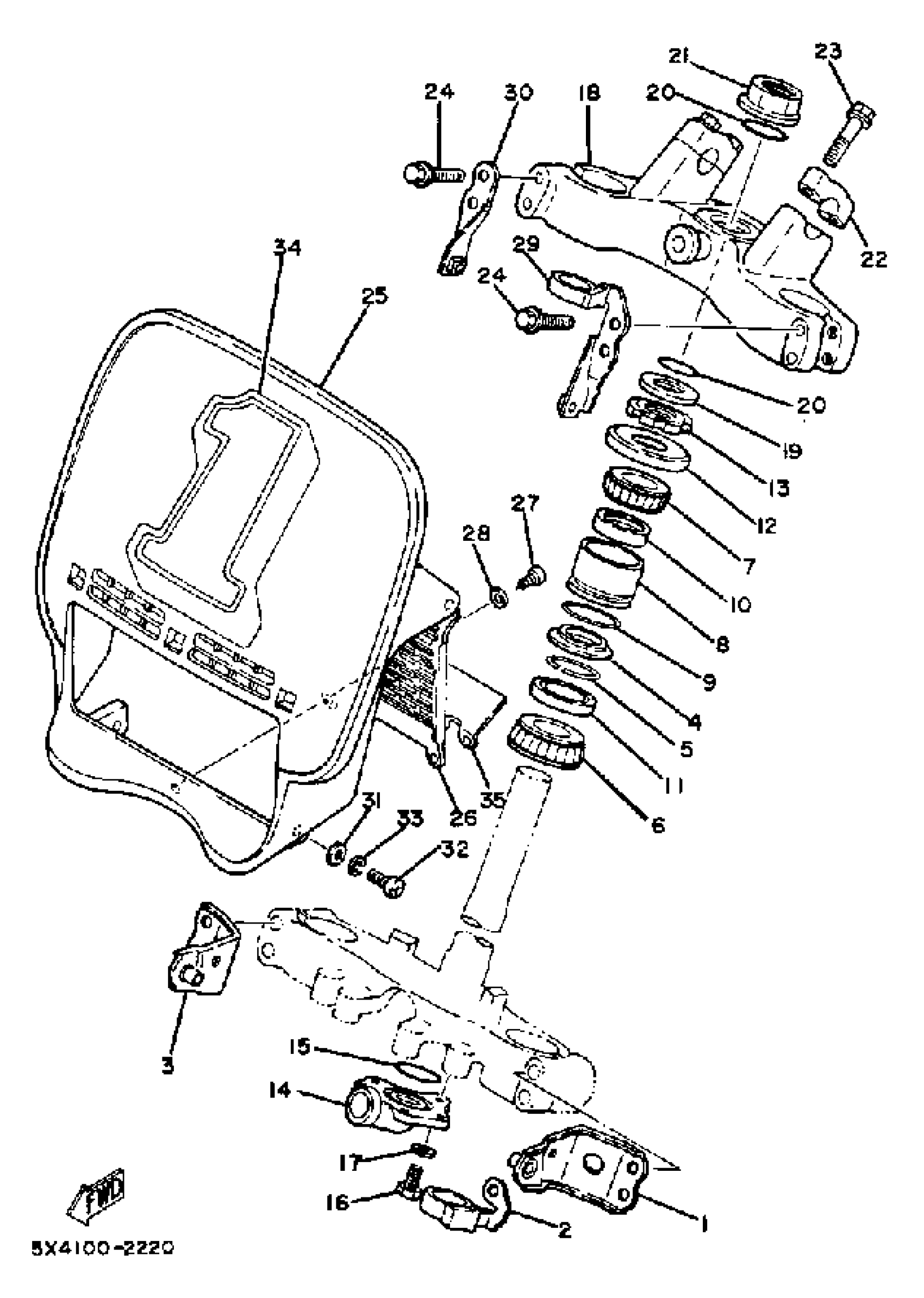

1982 Yamaha YZ125J (YZ125J) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAY

5X4-2317E-00-00

1
Out of stock

2

GUIDE, CABLE

5X4-23389-01-00

1
Out of stock

3

STAY 2

5X4-2317F-00-00

1
Out of stock

4

SEAL, STEERING

5X4-23462-00-00

1
Out of stock

5

CIRCLIP, OUTER

93440-28099-00

1
Out of stock

6

1

$60.13

In stock

7

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

8

CYLINDER

5X4-23499-00-00

1
Out of stock

9

O-RING (5X4)

93210-35512-00

1

$11.12

In stock

10

OIL SEAL, SD-TYPE

93102-28234-00

1
Out of stock

11

OIL SEAL, OS-TYPE

93107-30009-00

1
Out of stock

12

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

13

NUT

90179-25004-00

1

$20.78

In stock

14

JOINT

(4V2-23491-00-00)

1
Out of stock

15

O-RING

93210-37M67-00

1

$3.15

In stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

CROWN, HANDLE

4V2-23435-00-98

1
Out of stock

19

WASHER, PLATE

90201-237E8-00

1
Out of stock

20

O-RING

93210-23505-00

1
Out of stock

21

NUT

90179-22330-00

1
Out of stock

22

HOLDER, HANDLE UPPER

1E6-23441-00-00

—

$22.38

In stock

23

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

24

BOLT, FLANGE

95814-08040-00

—

$3.15

In stock

25

PLATE, NUMBER

5X4-23485-00-00

1
Out of stock

26

PROTECTOR

5X4-23472-01-00

1
Out of stock

27

1

$4.15

In stock

28

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

29

HOLDER, CABLE

5X4-23317-00-00

1
Out of stock

30

STAY, PLATE

5X4-23487-00-00

1
Out of stock

31

—

$6.42

In stock

32

SCREW, PAN

98507-06014-00

—

$6.18

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

EMBLEM

5X4-23395-00-00

1
Out of stock

35

PLATE

5X4-23774-00-00

1
Out of stock
