1982 Yamaha YZ125J (YZ125J) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1982 Yamaha YZ125J (YZ125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

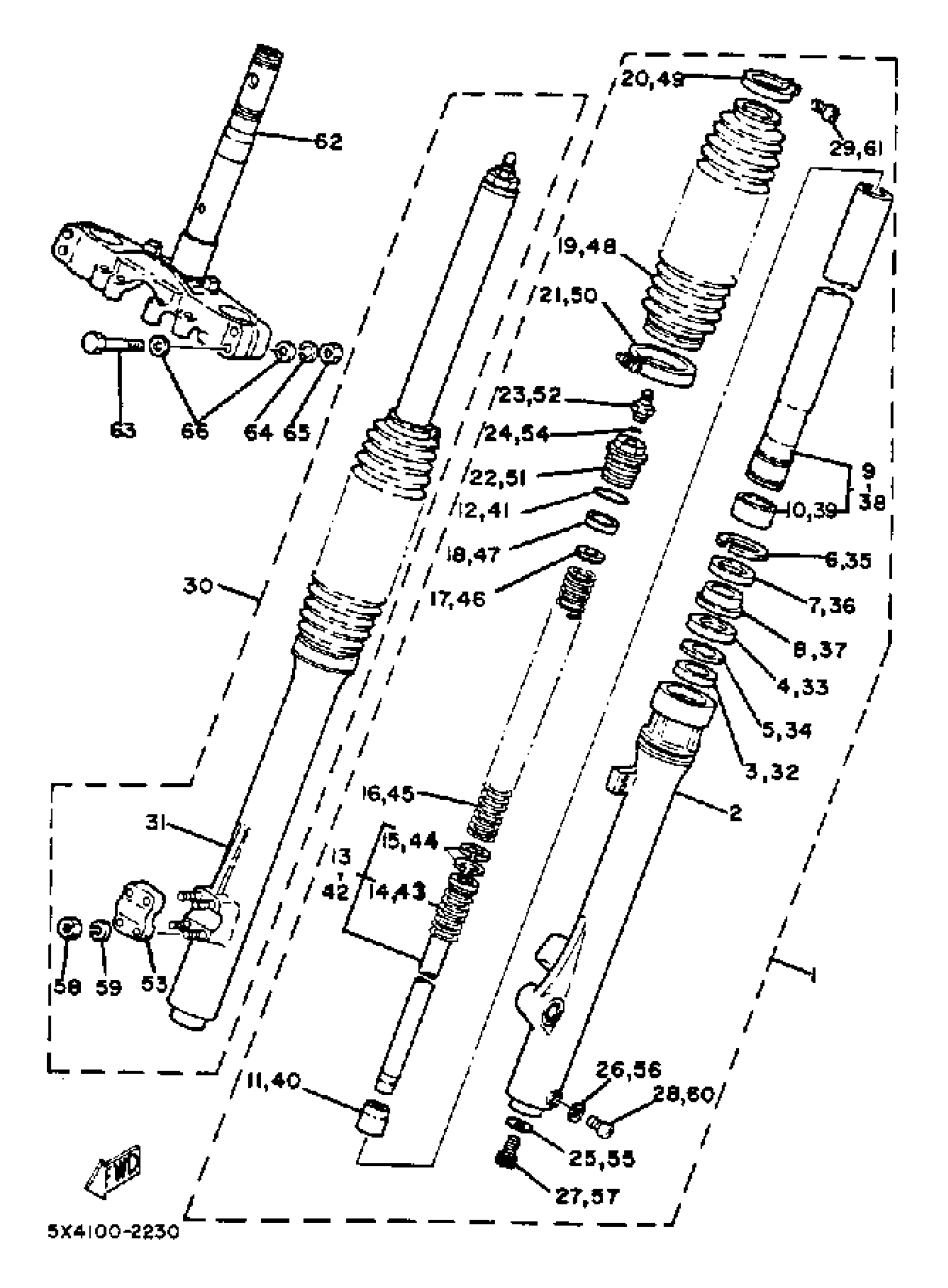

1982 Yamaha YZ125J (YZ125J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(5X4-23102-L0-00)

1
Out of stock

2

. TUBE, OUTER 1

4V2-23126-L1-00

1
Out of stock

3

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

4

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

5

WASHER

4V2-23146-L0-00

1
Out of stock

6

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

7

.. SEAL, DUST

3R4-23144-00-00

1
Out of stock

8

.. COVER, DUST SEAL

3R4-23148-00-00

1
Out of stock

9

. INNER TUBE 1

5X4-23110-L0-00

1
Out of stock

10

.. PISTON, FRONT FORK

4V2-23171-L0-00

1
Out of stock

11

SPINDLE, TAPER

(3R4-23173-L0-00)

1
Out of stock

12

O-RING

1W4-23114-L0-00

1

$7.45

In stock

13

CYLINDER, FRTFRK

(4V2-23170-L0-00)

1
Out of stock

14

SPRING, REBOUND

(1W4-23151-L0-00)

1
Out of stock

15

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

1
Out of stock

16

SPRING, FRTFRK SOFT

(5X4-23141-10-00)

1
Out of stock

16

SPRING, FRTFRK HARD

(5X4-23141-20-00)

1
Out of stock

16

SPRING, FRONT FORK

(5X4-23141-L0-00)

1
Out of stock

17

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

18

SPACER

(5X4-23118-L0-00)

1
Out of stock

19

. BOOT, FRONT FORK

3R4-23191-M0-00

1
Out of stock

19

SPACER

4V5-23118-L1-00

1
Out of stock

20

. BAND

1W4-23192-L0-00

1
Out of stock

21

BAND

1W4-23489-L0-00

1
Out of stock

22

. BOLT, CAP

5X4-23111-L0-00

1
Out of stock

23

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

24

O-RING

3J2-23147-00-00

—
Out of stock

25

GASKET

2K8-23158-L0-00

—
Out of stock

26

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

27

BOLT

3R4-23181-L0-00

—
Out of stock

28

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

29

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

30

FRONT FORK ASSEMBLY R

(5X4-23103-L0-00)

1
Out of stock

31

TUBE, OUTER 2

(4V2-23136-L0-00)

1
Out of stock

32

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

33

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

34

WASHER

4V2-23146-L0-00

1
Out of stock

35

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

36

.. SEAL, DUST

3R4-23144-00-00

1
Out of stock

37

.. COVER, DUST SEAL

3R4-23148-00-00

1
Out of stock

38

. INNER TUBE 1

5X4-23110-L0-00

1
Out of stock

39

.. PISTON, FRONT FORK

4V2-23171-L0-00

1
Out of stock

40

SPINDLE, TAPER

(3R4-23173-L0-00)

1
Out of stock

41

O-RING

1W4-23114-L0-00

1

$7.45

In stock

42

CYLINDER, FRTFRK

(4V2-23170-L0-00)

1
Out of stock

43

SPRING, REBOUND

(1W4-23151-L0-00)

1
Out of stock

44

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

1
Out of stock

45

SPRING, FRTFRK SOFT

(5X4-23141-10-00)

1
Out of stock

45

SPRING, FRTFRK HARD

(5X4-23141-20-00)

1
Out of stock

45

SPRING, FRONT FORK

(5X4-23141-L0-00)

1
Out of stock

46

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

47

SPACER

4V5-23118-L1-00

1
Out of stock

47

SPACER

(5X4-23118-L0-00)

1
Out of stock

48

. BOOT, FRONT FORK

3R4-23191-M0-00

1
Out of stock

49

. BAND

1W4-23192-L0-00

1
Out of stock

50

BAND

1W4-23489-L0-00

1
Out of stock

51

. BOLT, CAP

5X4-23111-L0-00

1
Out of stock

52

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

53

HOLDER, AXLE

4V2-23167-L0-00

—
Out of stock

54

O-RING

3J2-23147-00-00

—
Out of stock

55

GASKET

2K8-23158-L0-00

—
Out of stock

56

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

57

BOLT

3R4-23181-L0-00

—
Out of stock

58

NUT(6TA)

95317-06600-00

—

$2.69

In stock

59

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

60

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

61

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

62

UNDER BRACKET

5X4-23340-L0-33

1
Out of stock

63

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

64

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

65

NUT(6L2)

95333-08600-00

—

$3.20

In stock

66

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
