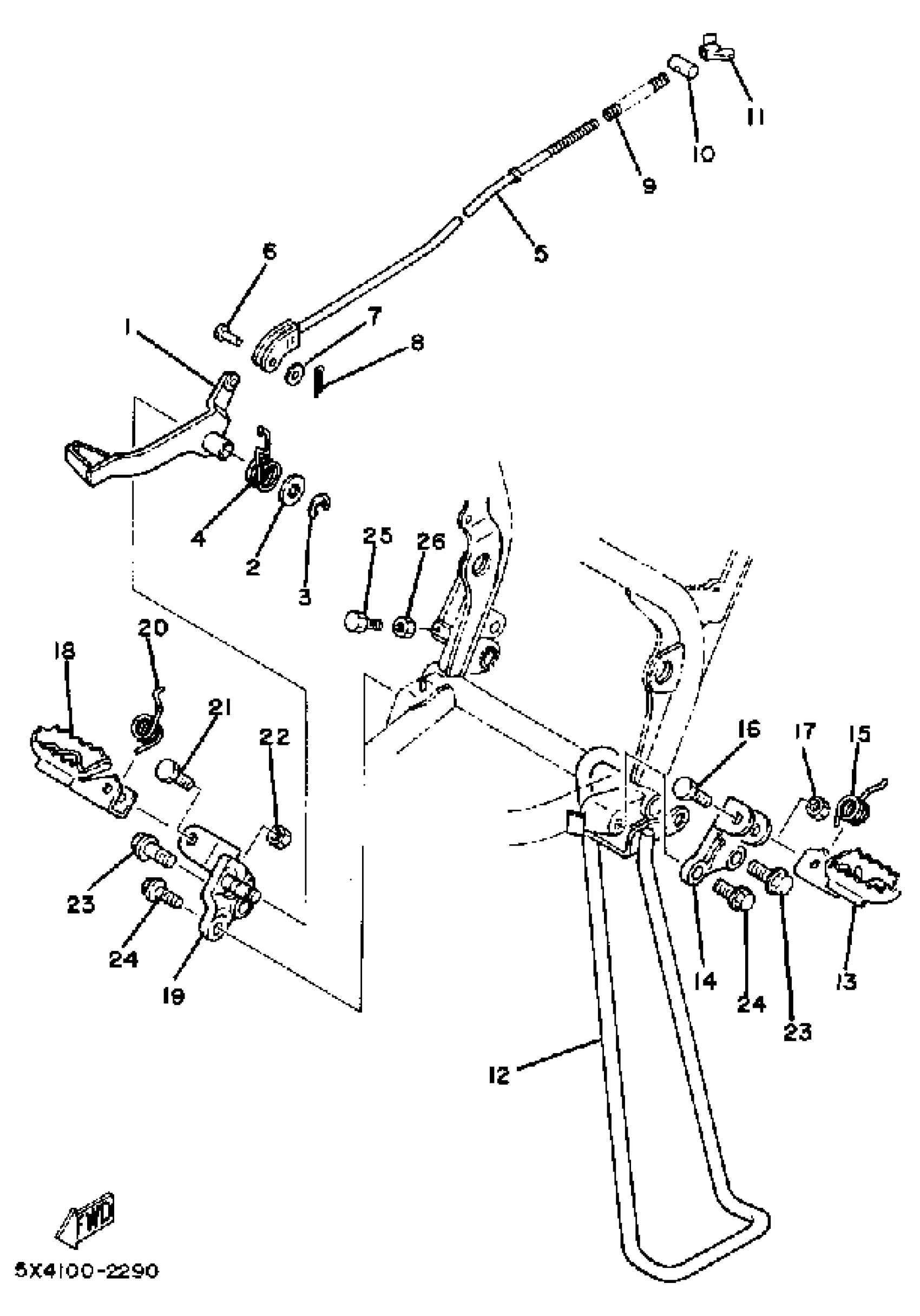

Yamaha YZ125J (YZ125J) 1982 STAND-FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

(5X4-27211-00-90)

Unavailable

2

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

3

CIRCLIP (4V2)

93430-09038-00

$9.49

4

SPRING, TORSION

90508-32438-00

Unavailable

5

ROD, BRAKE

5X4-27231-00-00

Unavailable

6

PIN, CLEVIS (24X)

90240-06103-00

$7.49

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING, (180-27236-00)

90501-10245-00

$8.49

10

PIN 1562723700

90249-12008-00

$8.49

11

NUT (25K)

90179-06411-00

$8.49

12

STAND, SIDE

5X4-27311-01-00

Unavailable

13

FOOTREST 1

5X6-27411-00-00

Unavailable

14

BRACKET, FOOTREST 1 (4V2-27412-00)

4V2-27412-01-00

Unavailable

15

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

16

BOLT (2W6)

90101-08428-00

Unavailable

17

NUT, U

95617-08100-00

Unavailable

18

FOOTREST 2

5X6-27421-00-00

Unavailable

19

BRACKET, FOOTREST 2 (4V2-27422-00)

4V2-27422-01-00

Unavailable

20

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

21

BOLT (2W6)

90101-08428-00

Unavailable

22

NUT, U

95617-08100-00

Unavailable

23

BOLT, WASHER BASED

90105-12096-00

Unavailable

24

BOLT, FLANGE

95817-10020-00

Unavailable

25

BOLT

90109-06670-00

Unavailable

26

NUT(650)

95380-06700-00

Unavailable
