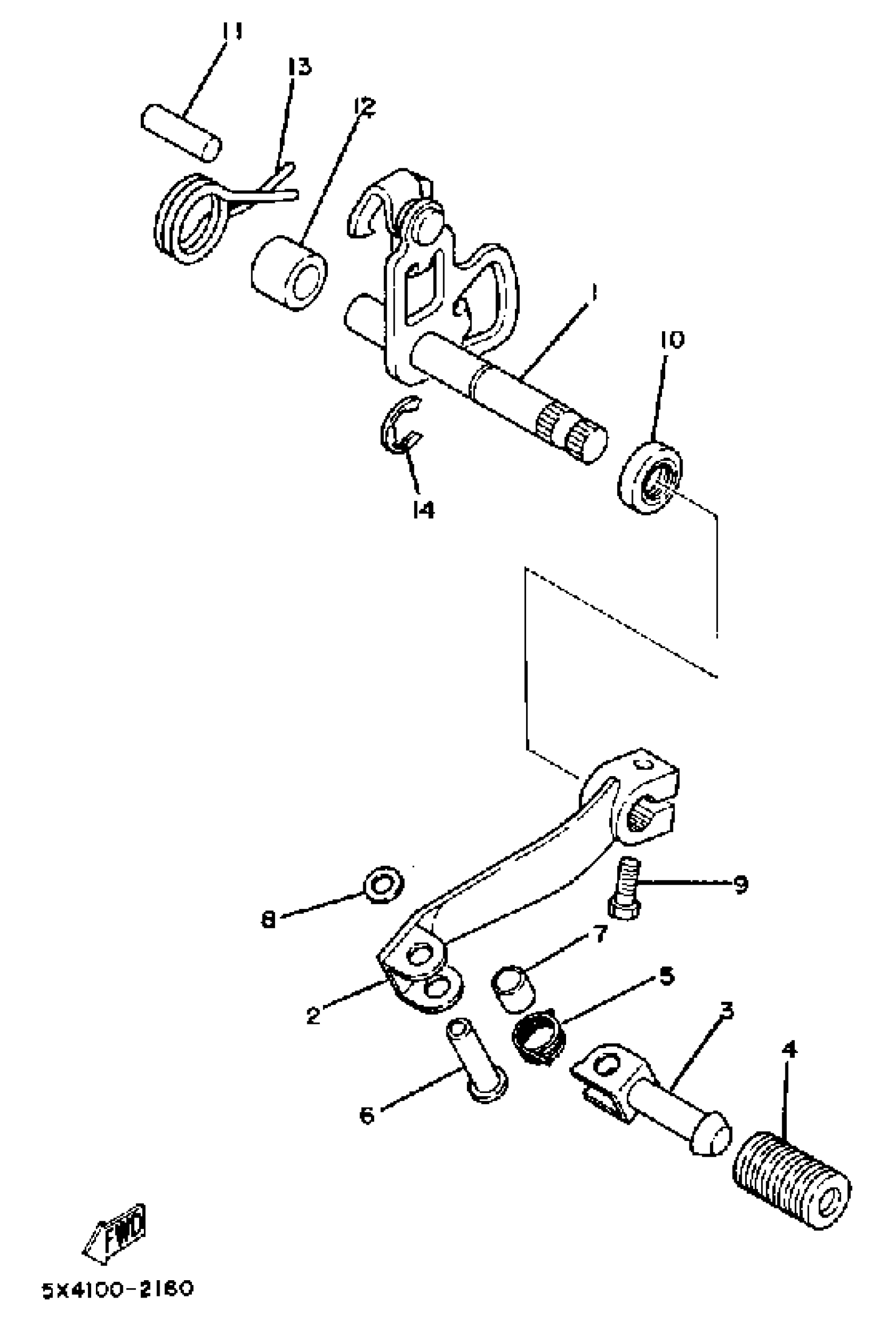

Yamaha YZ125J (YZ125J) 1982 SHIFT SHAFT-PEDAL Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY. 1

24X-18101-01-00

Unavailable

2

SHIFT PEDAL ASSEMBLY (509-18111-01)

5X4-18110-01-00

Unavailable

3

PEDAL, SHIFT

(5X4-18162-00-00)

Unavailable

4

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

5

SPRING, TORSION

90508-16558-00

Unavailable

6

RIVET(25Y)

90269-08041-00

Unavailable

7

HOSE

90446-11180-00

Unavailable

8

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

OIL SEAL (12X19X5-401)

93109-12012-00

$10.49

11

PIN, DOWEL

93608-25150-00

Unavailable

12

SPACER

90560-11189-00

Unavailable

13

SPRING, TORSION

90508-29361-00

Unavailable

14

CIRCLIP

99006-10600-00

$9.49
