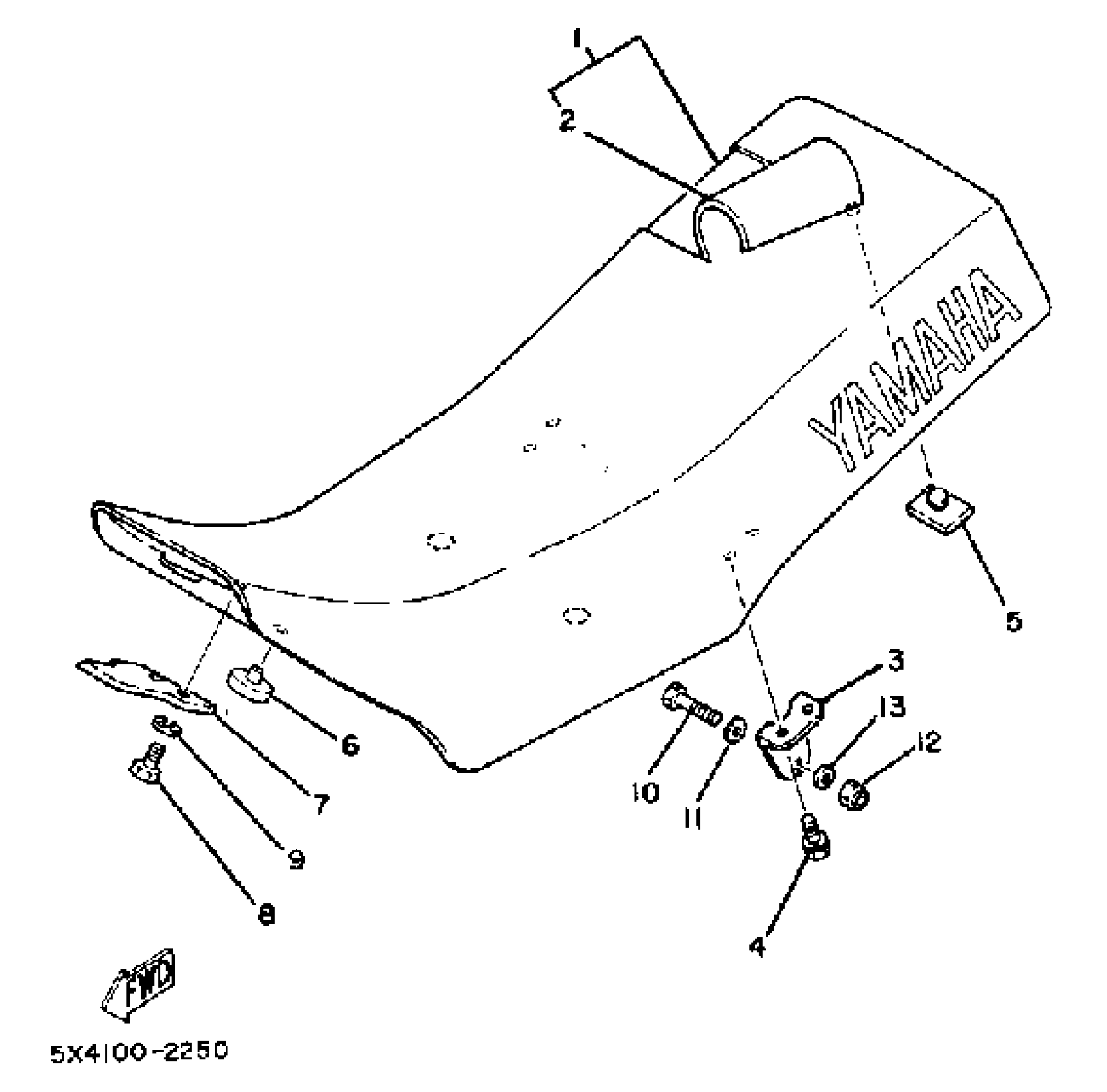

Yamaha YZ125J (YZ125J) 1982 SEAT Diagram

#

Description
Price

1

SEMI-DBL-SEAT ASSEMBLY

(5X4-W2473-00-00)

Unavailable

2

COVER, SM-DBL SEAT

(5X4-24771-00-00)

Unavailable

3

BRACKET, SEAT

1W1-24738-00-00

Unavailable

4

BOLT (583)

90101-06304-00

$5.44

5

DAMPER, SEAT

509-24724-00-00

$8.84

6

PAD, SEAT

116-24741-00-00

Unavailable

7

. BRACKET, SEAT

5X6-24748-10-00

Unavailable

8

BOLT (661)

97013-06012-00

$4.40

9

WASHER, SPRING

92995-06100-00

$2.95

10

BOLT(3RV)

97014-06035-00

$1.54

11

WASHER, PLAIN (646)

92990-06600-00

$1.84

12

NUT, SELF-LOCKING

95617-06100-00

$2.17

13

WASHER, SPRING

92995-06100-00

$2.95
