1982 Yamaha YZ125J (YZ125J) Frame-Tool Diagram

← All diagrams

Find the part on the Frame-Tool diagram for your 1982 Yamaha YZ125J (YZ125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

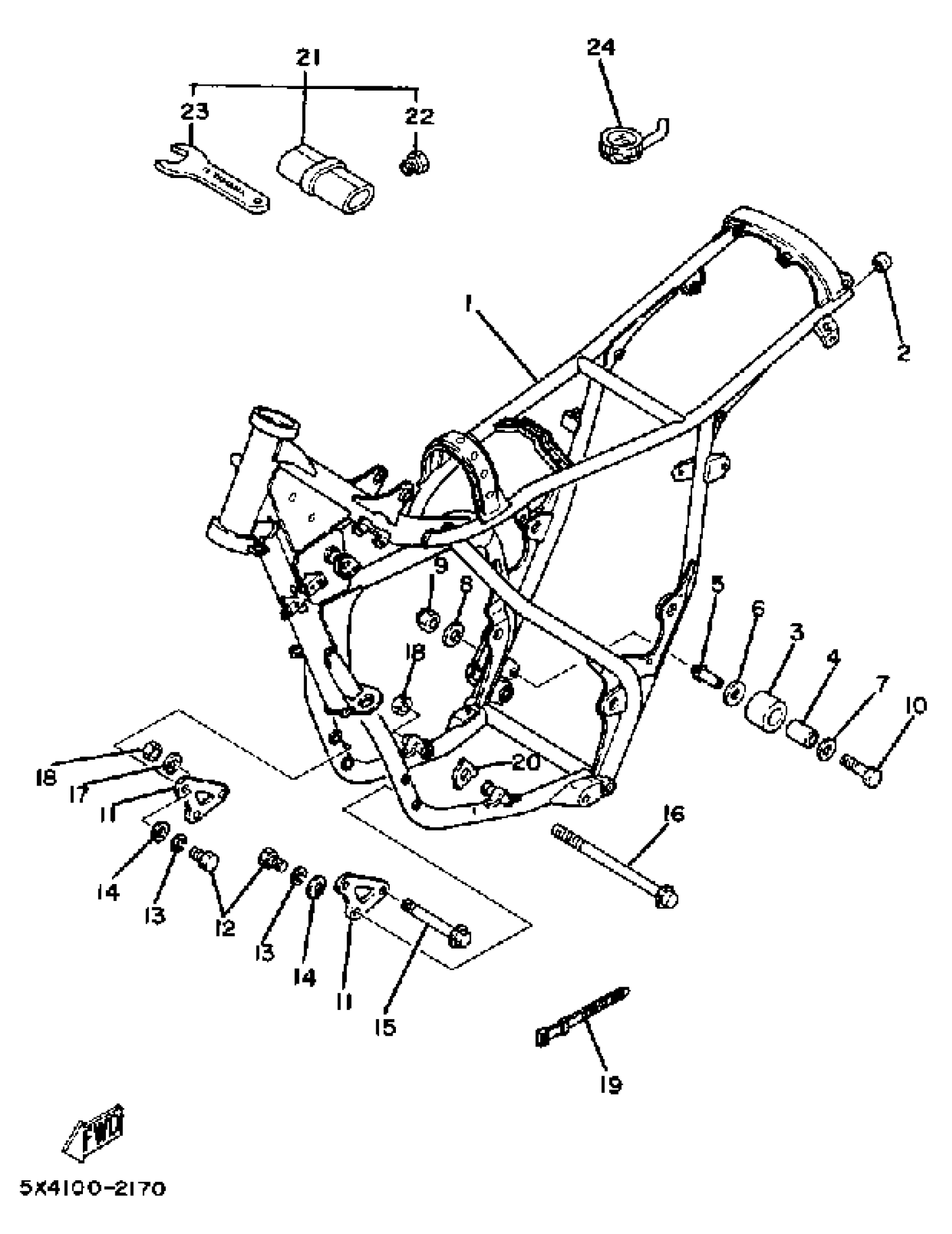

1982 Yamaha YZ125J (YZ125J) Frame-Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(5X4-21110-00-33)

1
Out of stock

2

PLUG (2K5)

90339-13005-00

1

$3.57

In stock

3

TENSIONER

5X6-22178-00-00

1
Out of stock

4

BUSH

4V4-22184-00-00

1

$3.57

In stock

5

SHAFT

3R3-2148A-00-00

1
Out of stock

6

WASHER, PLATE

90201-13013-00

1

$6.29

In stock

7

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

8

WASHER, PLATE

90201-08638-00

1
Out of stock

9

NUT, U

95617-08100-00

1

$6.78

In stock

10

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

11

BRACKET, ENGINE 2

5X4-21419-01-00

1
Out of stock

12

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

15

BOLT, FLANGE(8BT)

95817-08095-00

1
Out of stock

16

BOLT,FLANGE

95817-08190-00

1
Out of stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

19

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

20

WASHER, CLAW

90214-09019-00

1
Out of stock

21

TOOL KIT

(5X5-28100-00-00)

1
Out of stock

22

PULLER, ROTOR

(2K7-85555-00-00)

1
Out of stock

23

SPANNER, SPECIAL

10V-28135-00-00

1
Out of stock

24

GAUGE, AIR

2X4-2811A-01-00

1
Out of stock
