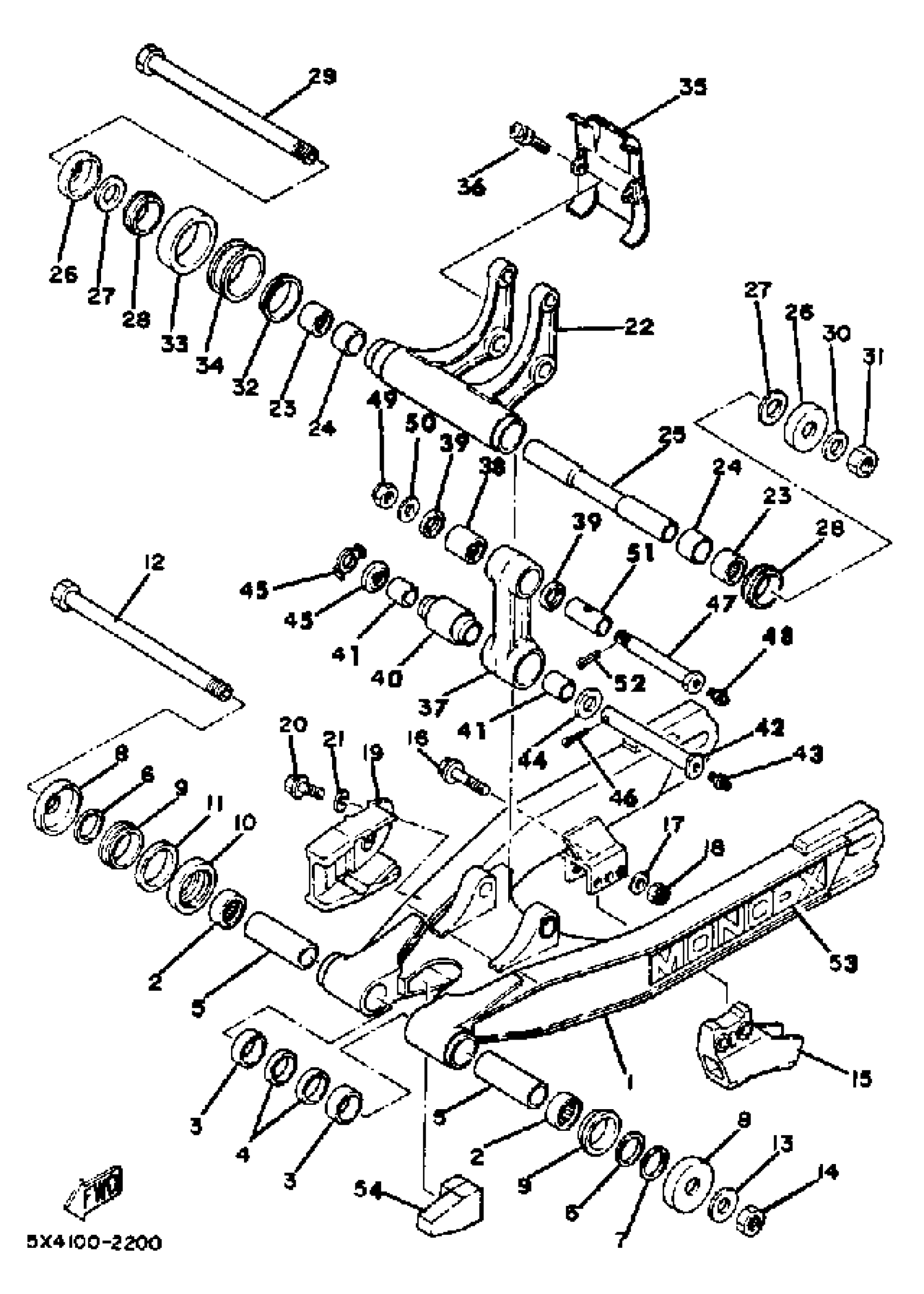

Yamaha YZ125J (YZ125J) 1982 REAR ARM Diagram
#
1
REAR ARM
(5X4-22110-00-35)
Unavailable
3
BUSH, SPEC''L NYLON
90386-22097-00
Unavailable
4
OIL SEAL, SDO-TYPE
93109-22018-00
Unavailable
6
WASHER, PLATE
90201-22680-00
Unavailable
12
SHAFT, PIVOT
5X4-22141-01-00
Unavailable
14
NUT
90170-16111-00
Unavailable
16
BOLT, FLANGE
95814-08045-00
Unavailable
17
.. WASHER, PLATE
92990-08600-00
Unavailable
18
NUT, U
95617-08100-00
Unavailable
19
PROTECTOR, CHAIN
5X6-22147-01-00
Unavailable
20
BOLT, FLANGE
95817-06020-00
Unavailable
21
WASHER, PLATE
90201-06380-00
Unavailable
22
ARM, RELAY
(5X4-2217A-00-00)
Unavailable
24
BUSH, SPEC''L NYLON
90386-22097-00
Unavailable
25
COLLAR
90387-163F6-00
Unavailable
27
WASHER, PLATE
90201-22680-00
Unavailable
29
SHAFT, PIVOT
5X4-22141-01-00
Unavailable
31
NUT
90170-16111-00
Unavailable
32
WASHER, SPRING LWR
5X6-22159-00-00
Unavailable
33
SEAL, GUARD
5X6-22151-00-00
Unavailable
34
SEAL, GUARD
5X6-22152-00-00
Unavailable
35
PROTECTOR
5X4-21652-00-00
Unavailable
36
SCREW, WITH WASHER (1T4/2F3)
90159-05018-00
Unavailable
37
ROD, CONNECTING 1
(5X4-2217F-00-00)
Unavailable
38
BEARING, CYLINDRICAL(2HJ)
93315-22046-00
Unavailable
39
OIL SEAL
93109-20076-00
Unavailable
40
BUSH 1
5X6-22123-00-00
Unavailable
41
BUSH, BIMETAL FORM
90384-16156-00
Unavailable
42
PIN, SPEC''L SHAPE
90249-16153-00
Unavailable
43
NIPPLE, GREASE
93700-06M03-00
Unavailable
44
COVER, DUST
5X6-2217H-00-00
Unavailable
45
WASHER, LOCK
90215-16198-00
Unavailable
46
PIN, COTTER
91490-40045-00
Unavailable
47
BOLT
90109-12646-00
Unavailable
48
NIPPLE, GREASE
93700-06M03-00
Unavailable
49
NUT, SELF LOCKING (23X)
90185-12119-00
Unavailable
50
WASHER, PLATE
90201-12027-00
Unavailable
51
BUSH, SOLID
90380-14095-00
Unavailable
52
PIN, COTTER
91490-25020-00
Unavailable
53
EMBLEM, REAR ARM
5X6-2218A-00-00
Unavailable
54
DAMPER 1
5X4-2214F-00-00
Unavailable
