1982 Yamaha YZ125J (YZ125J) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1982 Yamaha YZ125J (YZ125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

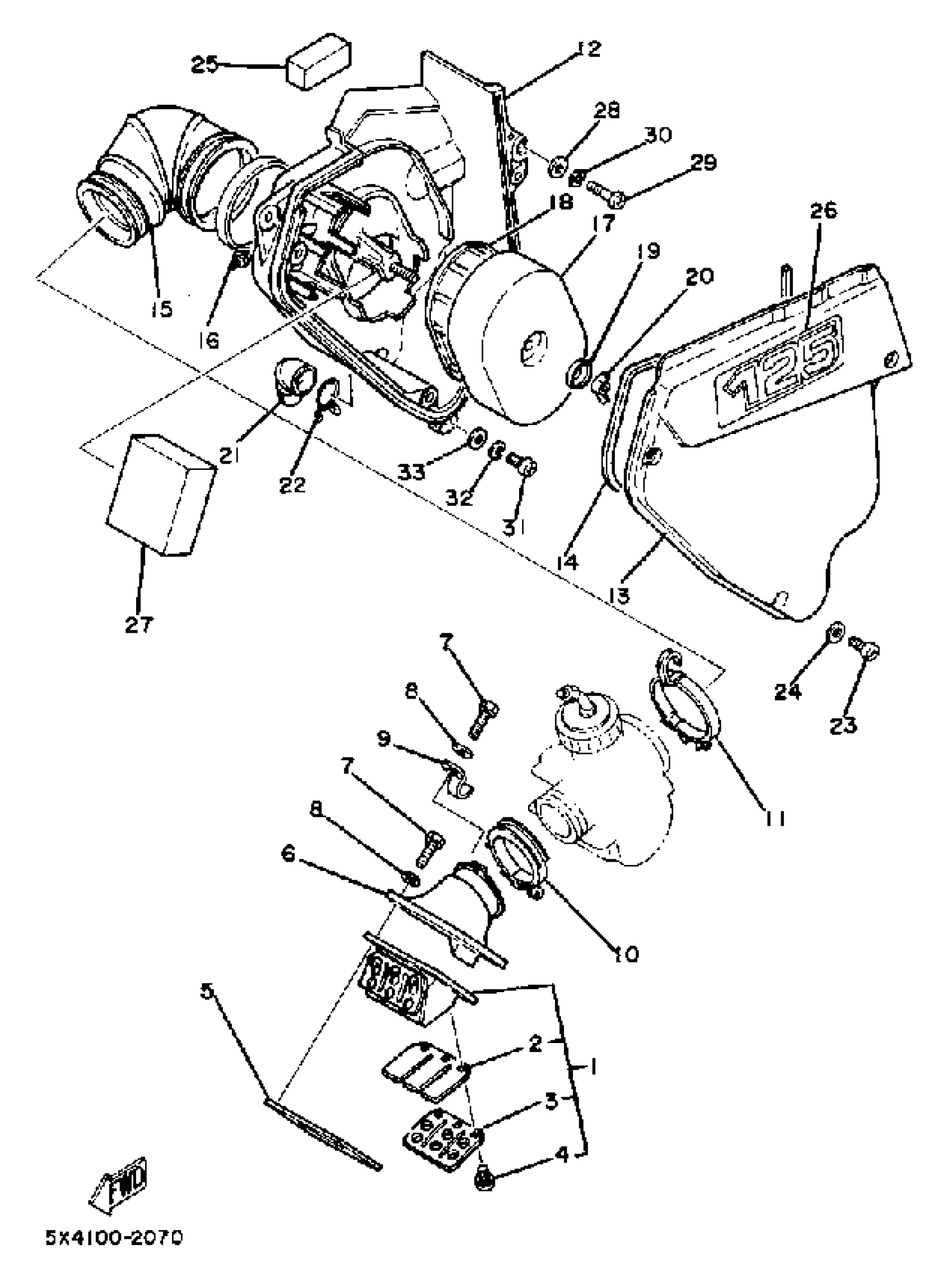

1982 Yamaha YZ125J (YZ125J) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

39W-13610-00-00

1
Out of stock

2

. REED, VALVE

3R3-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

39W-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET, VALVE SEAT

3R3-13621-01-00

1

$17.91

In stock

6

JOINT, CARBURETOR

5X4-13565-01-00

1
Out of stock

7

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

10

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

11

HOSE CLAMP ASSY

90450-64004-00

1

$12.00

In stock

12

CASE, AIR CLEANER 1

5X4-14411-00-00

1
Out of stock

13

CAP, CLEANER CASE 1

(5X4-14412-00-98)

1
Out of stock

14

SEAL

50M-14462-01-00

1

$8.99

In stock

15

JOINT, AIR CLNR 1

5X4-14453-01-00

1
Out of stock

16

HOSE CLAMP ASSY

90450-75002-00

—

$10.40

In stock

17

ELEMENT, AIR CLNR

5X4-W1442-00-00

1
Out of stock

18

GUIDE, ELEMENT

5X4-14458-00-00

1
Out of stock

19

PLATE, ELEMENT FTNG

2X4-14468-00-00

1
Out of stock

20

NUT, WING (646)

90175-06008-00

—

$1.88

In stock

21

SEAL

1W1-14457-01-00

1
Out of stock

22

CLIP

90467-20M15-00

1

$6.23

In stock

23

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

24

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

25

DAMPER, HEADLIGHT (2XJ-84345-00-00)

5X4-14462-00-00

1
Out of stock

26

EMBLEM

39W-21737-00-00

1
Out of stock

27

SEAL

(5X4-14457-00-00)

1
Out of stock

28

WASHER, PLATE

90201-06M08-00

1
Out of stock

29

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

SCREW, PAN

98507-06014-00

—

$6.18

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

WASHER, PLATE

90201-06M08-00

1
Out of stock
