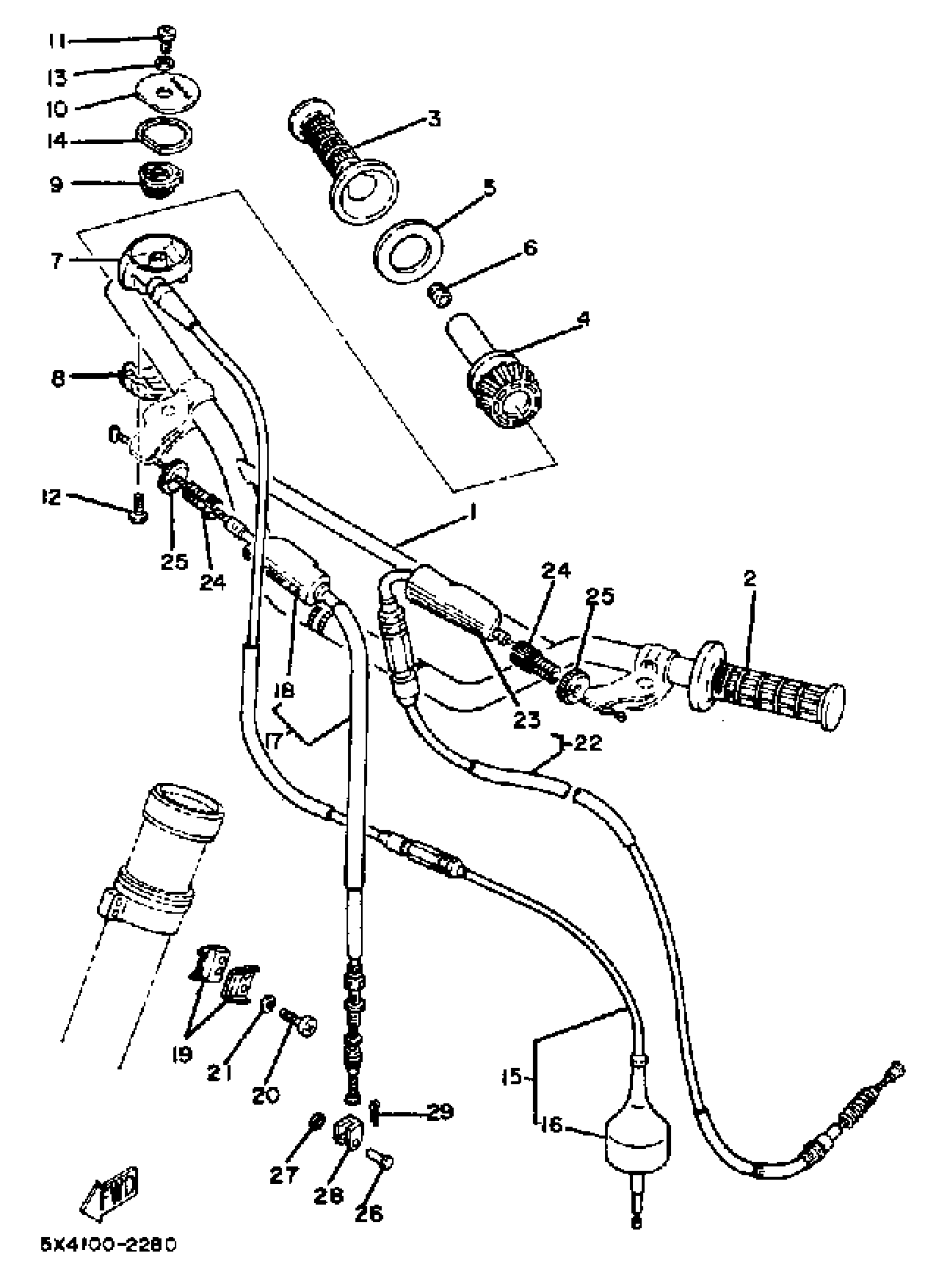

Yamaha YZ125J (YZ125J) 1982 HANDLEBAR-CABLE Diagram

#

Description

Price

1

HANDLEBAR

1LN-26111-00-00

Unavailable

2

GRIP (L.H)

1LX-26241-01-00

$33.99

3

GRIP (R.H)

1LX-26242-01-00

$34.99

4

TUBE, THRTL GUIDE

4V4-26243-00-00

Unavailable

5

RING, LEAF

4V4-26249-00-00

Unavailable

6

PLUG(2GU)

90338-12192-00

$8.49

7

CAP, GRIP UPPER

4V4-26281-00-00

Unavailable

8

CAP, GRIP LOWER

4V4-26282-00-00

Unavailable

9

GEAR, BEVEL

4V4-2628E-00-00

Unavailable

10

CAP, GEAR

4V4-2628F-09-00

Unavailable

11

SCREW, BINDING

98907-05010-00

$8.49

12

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

13

GASKET

90430-05009-00

Unavailable

14

PACKING

4V4-2628G-00-00

Unavailable

15

CABLE, THROTTLE 1

5X4-26311-00-00

Unavailable

16

. CAP, RUBBER

500-26329-01-00

Unavailable

17

CABLE, BRAKE

5Y0-26341-00-00

Unavailable

18

COVER, LEVER

498-26372-00-00

Unavailable

19

CLAMP(26A)

90465-16258-00

Unavailable

20

SCREW, PAN

98507-06014-00

Unavailable

20

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

CABLE, CLUTCH

5X4-26335-00-00

Unavailable

23

COVER, LEVER

498-26372-00-00

Unavailable

24

BOLT

90123-08002-00

Unavailable

25

NUT

90179-08030-00

Unavailable

26

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

27

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

28

JOINT, WIRE

156-26347-00-00

Unavailable

29

PIN, COTTER

91490-20025-00

Unavailable
