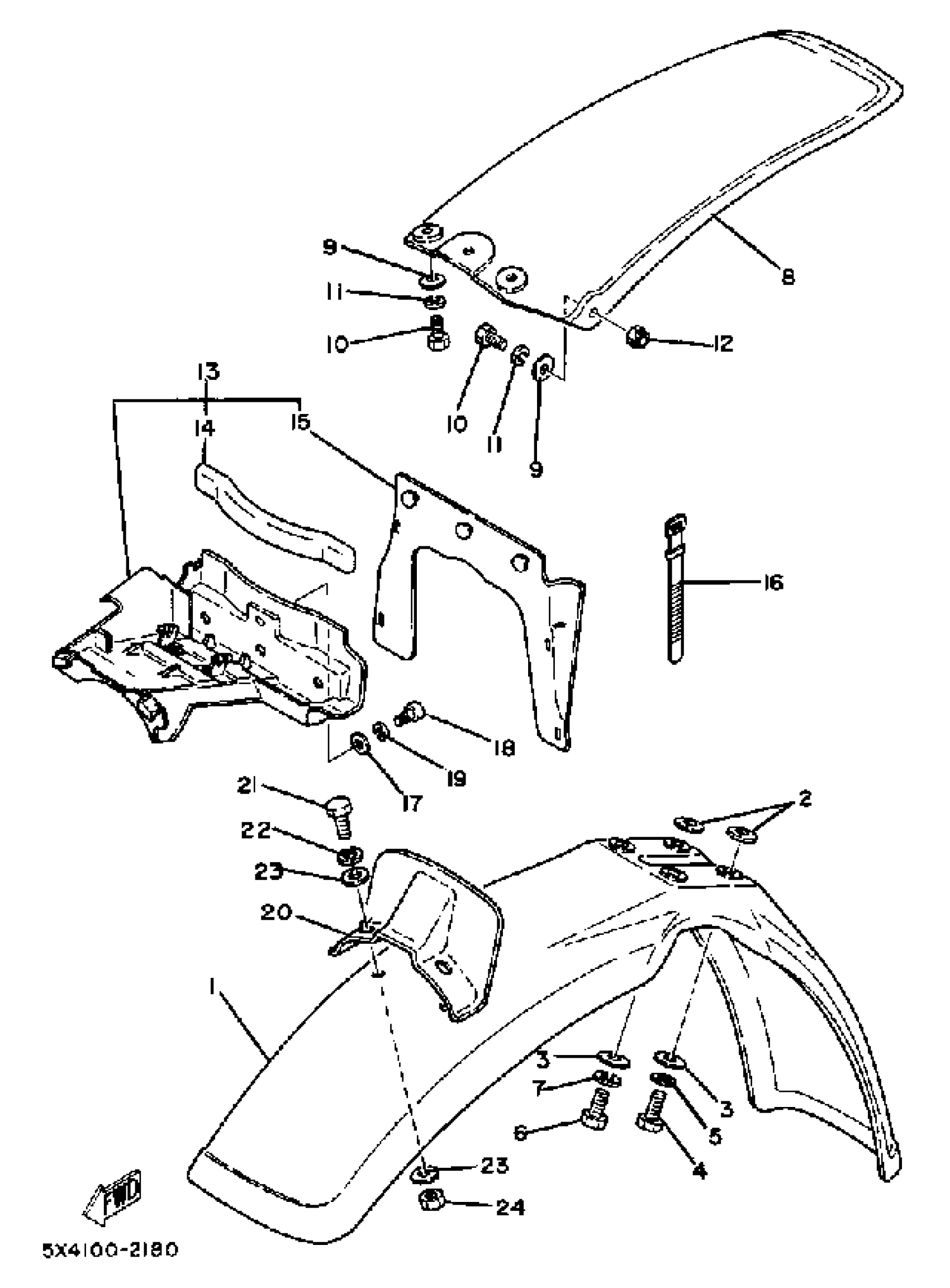

Yamaha YZ125J (YZ125J) 1982 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5X6-21511-01-00

$43.99

2

WASHER, PLATE

90201-06020-00

$9.49

3

WASHER (3R8)

90209-06187-00

$8.49

4

BOLT(3RV)

97014-06035-00

$2.75

5

WASHER, SPRING

92995-06100-00

Unavailable

6

BOLT(3DM)

97024-06020-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

FENDER, REAR

3R3-21611-01-00

Unavailable

9

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

WASHER, SPRING

92995-06100-00

Unavailable

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

GUARD, MUD

(5X4-21620-00-00)

Unavailable

14

. DAMPER

565-21746-00-00

Unavailable

15

GUARD, FLAP

(5X4-21642-00-00)

Unavailable

16

BAND, SWITCH CORD

437-83936-01-00

Unavailable

17

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

18

SCREW, PAN

98507-06014-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

PLATE 1

4V2-21543-01-00

Unavailable

21

BOLT, HEXAGON

97017-06020-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLATE

90201-06M08-00

Unavailable

24

NUT, SELF-LOCKING

95617-06100-00

$8.49
