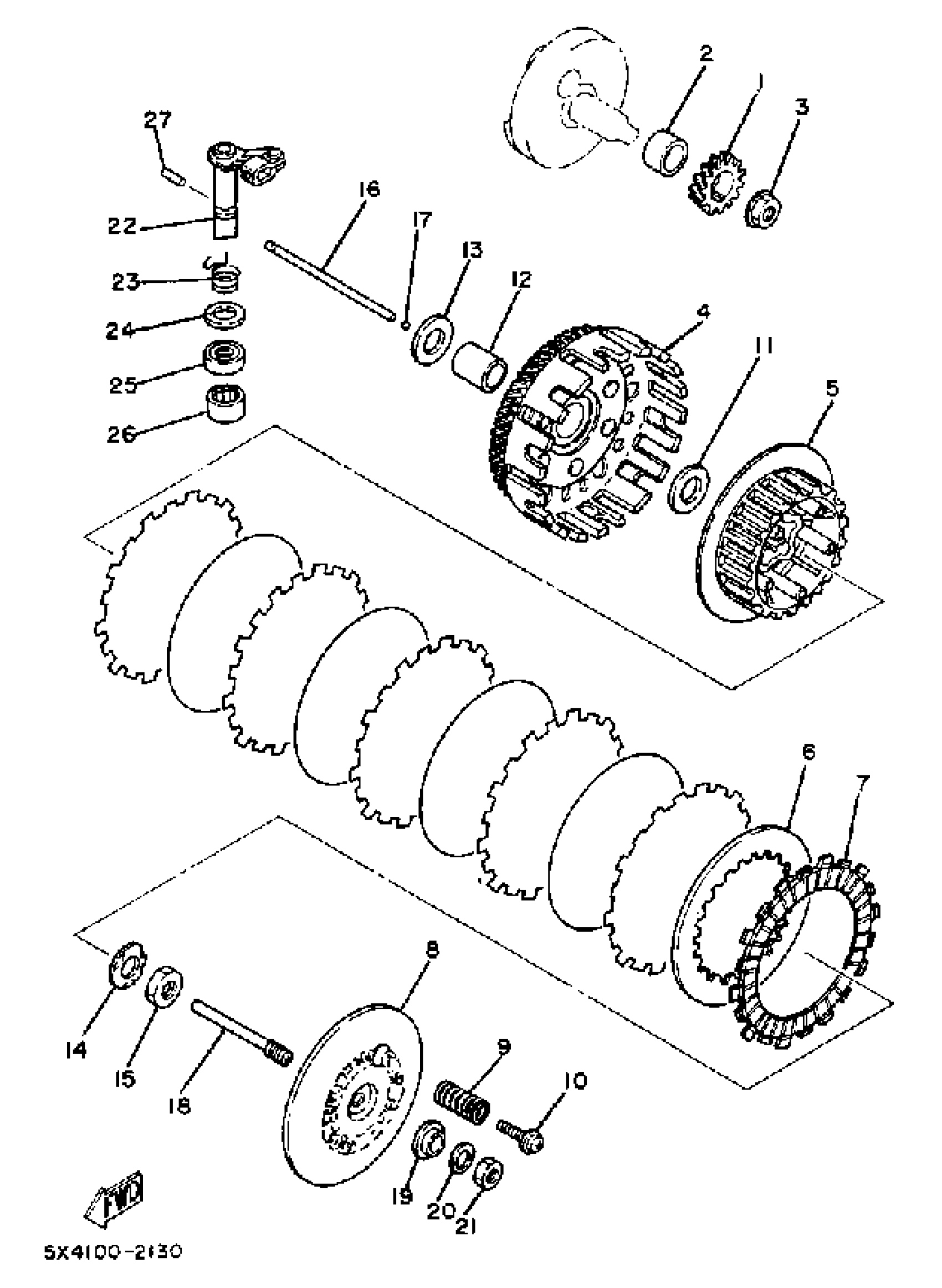

Yamaha YZ125J (YZ125J) 1982 CLUTCH Diagram
#
Description
Price
1
GEAR, PRI DRIVE
5X4-16111-00-00
Unavailable
2
COLLAR
90387-202F0-00
Unavailable
3
NUT, SPECIAL SHAPE
90179-12373-00
Unavailable
4
PRI DRVN GEAR
5X4-16150-00-00
Unavailable
5
BOSS, CLUTCH
5X4-16371-00-00
Unavailable
7
PLATE, FRICTION
5X4-16321-00-00
Unavailable
8
. PLATE, PRESSURE 1
1W1-16351-00-00
Unavailable
12
SPACER
90560-17214-00
Unavailable
16
ROD, PUSH (2)
353-16357-00-00
Unavailable
17
BALL
93503-16003-00
Unavailable
18
ROD, PUSH
1W1-16356-02-00
Unavailable
19
PLATE, PUSH
1W1-16358-01-00
Unavailable
20
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
21
NUT, HEXAGON
95380-06600-00
Unavailable
22
PUSH LEVER ASSEMBLY
3R3-16380-02-00
Unavailable
23
SPRING, TORSION
90508-14426-00
Unavailable
24
WASHER PLATE 150251530000
90201-14217-00
Unavailable
25
OIL SEAL (14X25X5-2H7)
93104-14059-00
Unavailable
26
BEARING, CYLINDRICAL (3R3)
93315-21429-00
Unavailable
27
PIN, DOWEL (409)
93604-16092-00
Unavailable
