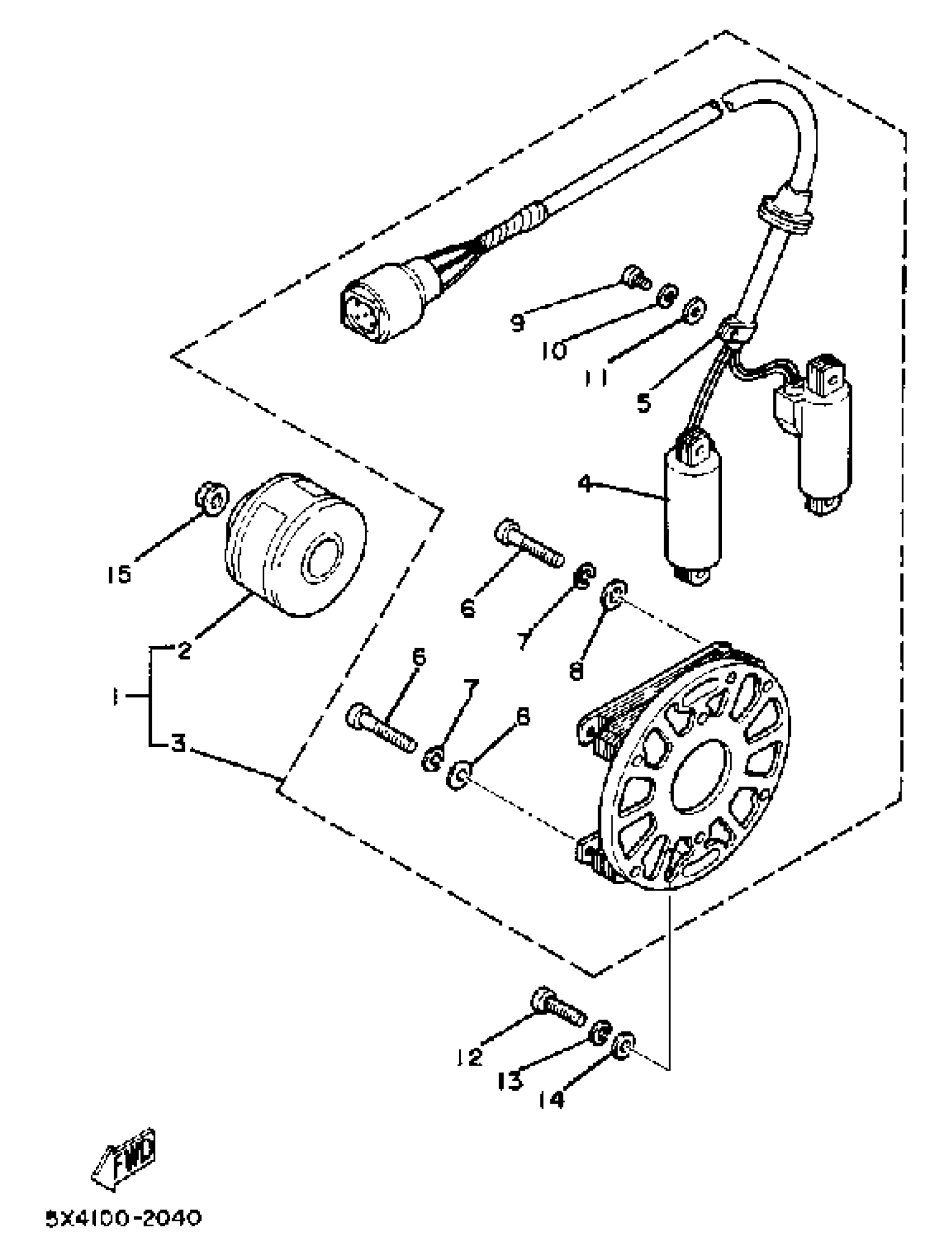

Yamaha YZ125J (YZ125J) 1982 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(5X4-85500-10-00)

Unavailable

2

. ROTOR ASSEMBLY

5X4-85550-10-00

Unavailable

3

. STATOR ASSEMBLY

5X4-85510-10-00

Unavailable

4

.. COIL, CHARGE

5X4-85520-10-00

Unavailable

5

. CLAMP

109-81328-11-00

Unavailable

6

SCREW, PAN HEAD

98517-05030-00

$10.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

SCREW PAN HEAD

98580-06020-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

NUT, SPECIAL SHAPE

90179-10257-00

Unavailable
