Description

Price

1

HANDLEBAR

17D-26111-H0-00

$228.99

2

GRIP (LEFT)

4GY-26241-00-00

$29.99

3

GRIP ASSY

4XM-26240-00-00

$64.99

4

GRIP (RIGHT)

4GY-26242-00-00

$29.99

5

TUBE, THROTTLE GUIDE

4XM-26243-00-00

$30.99

6

CAP, GRIP UPPER

1C3-26281-90-00

$76.99

7

CAP, GRIP LOWER

1C3-26282-90-00

$50.99

8

CAP, WIRE

1C3-2628H-90-00

$16.49

9

BOLT, FLANGE

90105-06112-00

$4.88

10

ROTOR

1C3-26273-90-00

$11.99

11

COLLAR

90387-04003-00

$8.49

12

SCREW, OVAL HEAD

98680-04510-00

$2.13

13

SCREW, OVAL HEAD

98680-04516-00

$1.66

14

COVER, CAP GRIP

4SS-26287-01-00

$20.99

15

CABLE, THROTTLE 1

1C3-26311-90-00

$41.99

16

CABLE, CLUTCH

1SR-26335-00-00

Unavailable

17

O-RING (26H)

93210-06632-00

Unavailable

18

BOOT, CABLE

34P-26342-00-00

Unavailable

19

COLLAR(34X)

90387-227H7-00

Unavailable

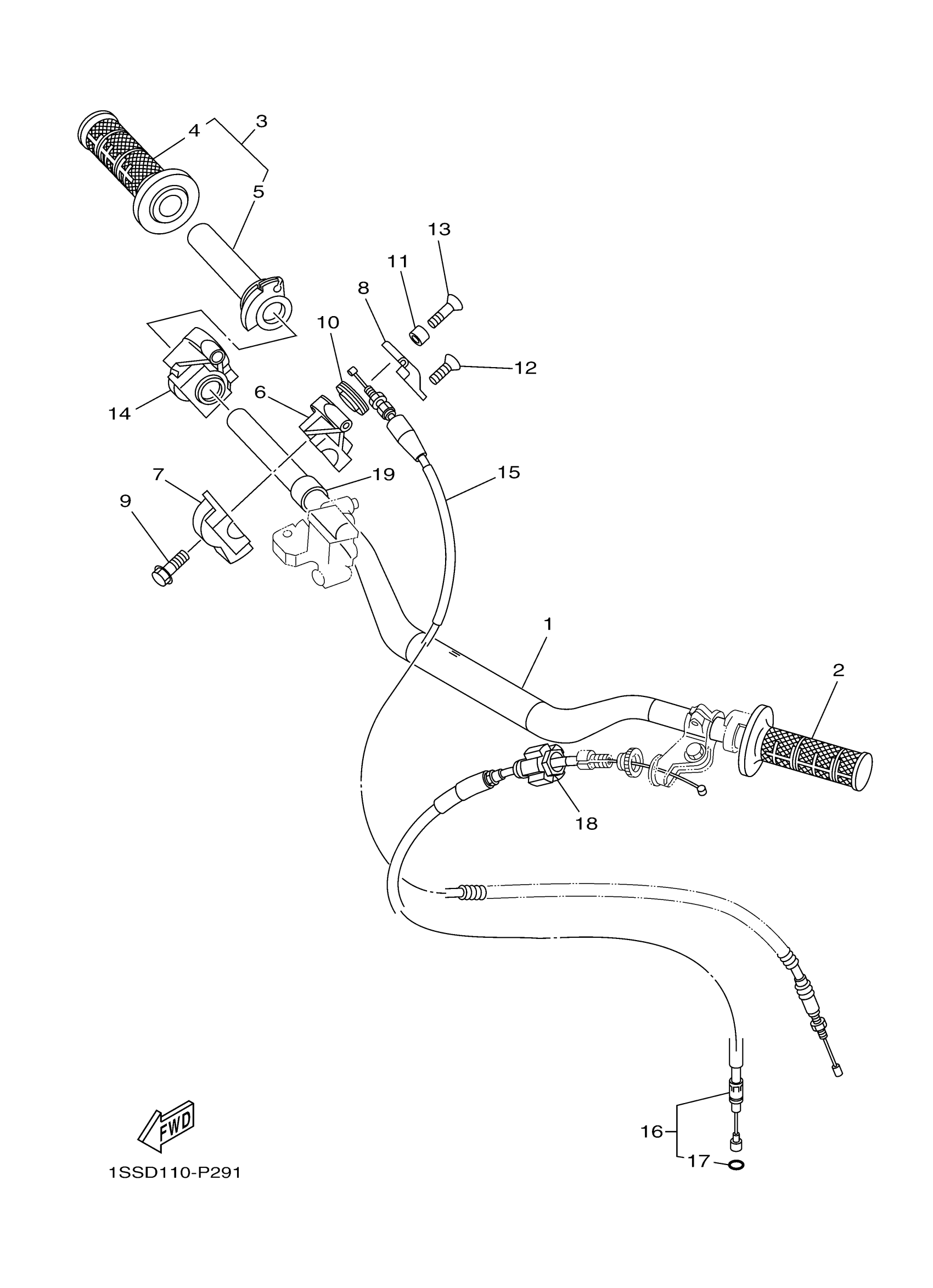

Yamaha YZ125H2 (YZ125) 1SRM 2017 STEERING HANDLE CABLE Diagram

HANDLEBAR

GRIP (LEFT)

GRIP ASSY

GRIP (RIGHT)

TUBE, THROTTLE GUIDE

CAP, GRIP UPPER

CAP, GRIP LOWER

CAP, WIRE

BOLT, FLANGE

ROTOR

COLLAR

SCREW, OVAL HEAD

SCREW, OVAL HEAD

COVER, CAP GRIP

CABLE, THROTTLE 1

CABLE, CLUTCH

O-RING (26H)

BOOT, CABLE

COLLAR(34X)
