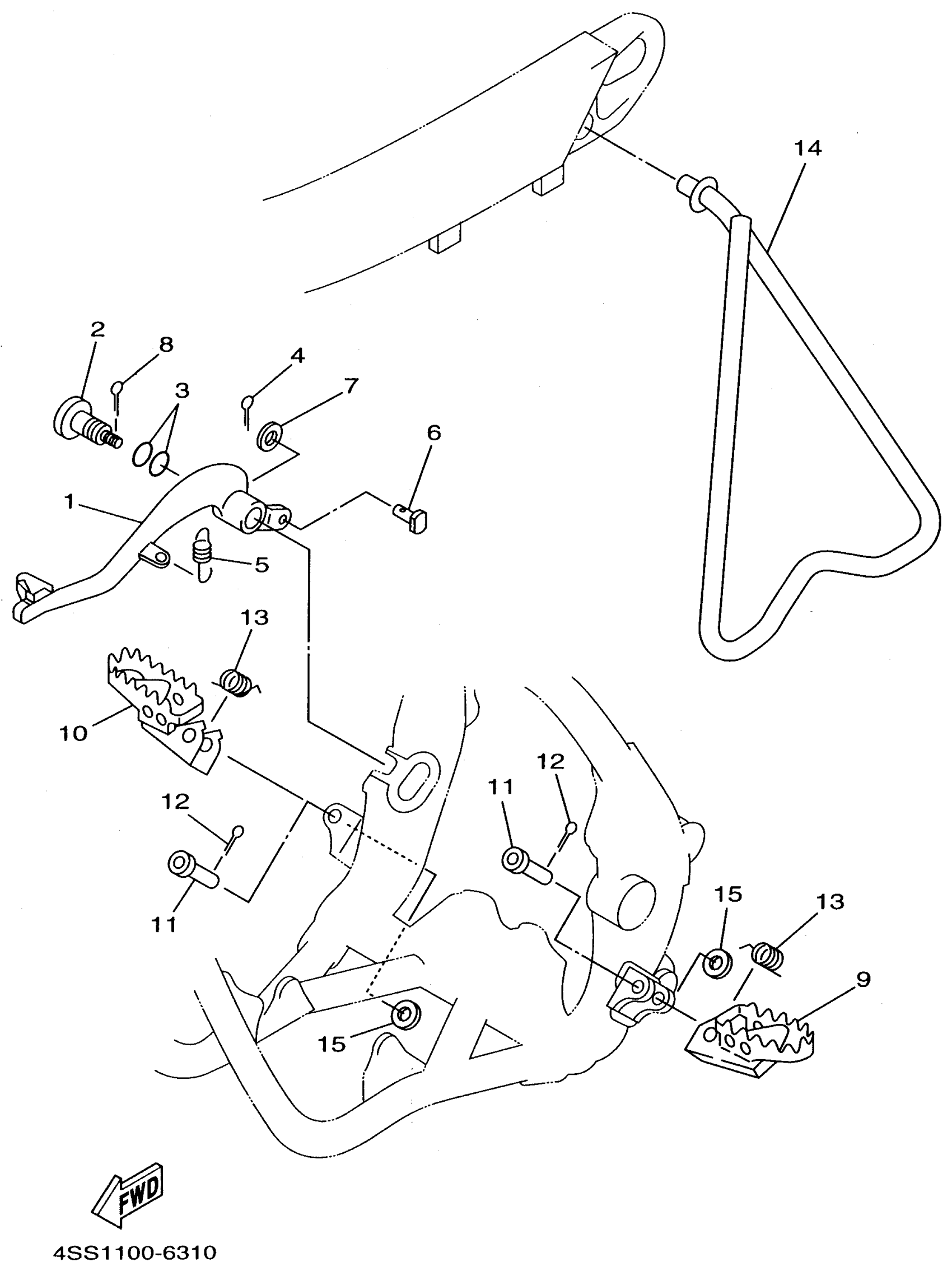

Yamaha YZ125H1 (YZ125) 4SS2 1996 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

4SS-27200-00-00

Unavailable

2

BOLT

4SS-27217-00-00

$37.47

3

O-RING (P95)

93210-11073-00

$5.39

4

PIN, COTTER

91490-20025-00

$1.23

5

SPRING, TENSION(4SR)

90506-16500-00

$5.75

6

PIN, CLEVIS(2VM)

90240-08120-00

$10.02

7

.. WASHER, PLATE

92990-08600-00

$2.17

8

CLIP(3YF)

90468-16191-00

$5.75

9

FOOTREST 1

4DA-27411-00-00

Unavailable

10

FOOTREST 2

4DA-27421-00-00

Unavailable

11

PIN, CLEVIS(2HJ)

90240-10117-00

$10.69

12

PIN, COTTER

91490-25020-00

$2.73

13

SPRING, TORSION(3JD)

90508-28777-00

$5.30

14

STAND,SIDE

4ES-27311-00-00

Unavailable

15

WASHER, PLAIN(735)

90201-10119-00

Unavailable
