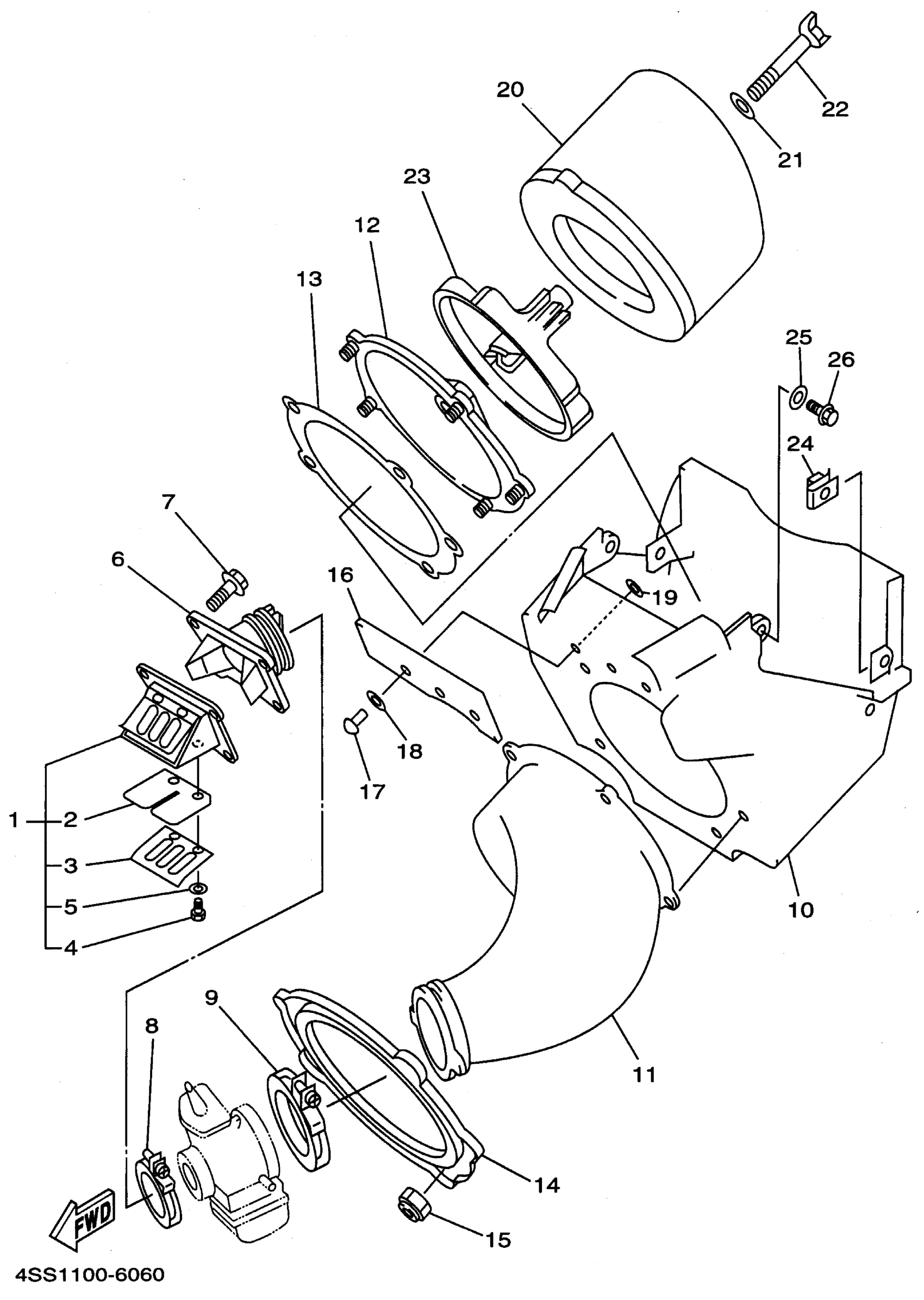

Yamaha YZ125H1 (YZ125) 4SS2 1996 INTAKE Diagram

REED VALVE ASSY

4SS-13610-00-00

Unavailable

. REED, VALVE

4SS-13613-00-00

Unavailable

. STOPPER, REED VALVE

4JY-13616-00-00

Unavailable

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

WASHER, SPRING

92990-03100-00

$8.49

JOINT, CARBURETOR

4PE-13565-00-00

Unavailable

. BOLT, FLANGE

95027-06020-00

Unavailable

HOSE CLAMP ASSY

90450-51001-00

$16.99

HOSE CLAMP ASSY

90450-70002-00

$22.99

AIR CLEANER CASE A

4SS-14401-02-00

Unavailable

JOINT, AIR CLEANER 1

4SS-14453-00-00

Unavailable

HOLDER,GUIDE

3JD-14459-01-00

Unavailable

SEAL

3JD-14462-00-00

$35.99

PLATE

5MV-14477-00-00

Unavailable

NUT, U

95617-05100-00

$9.49

COVER 1

4SS-14417-00-00

Unavailable

RIVET, BLIND

90267-32119-00

Unavailable

WASHER, PLATE(4SR)

90201-03644-00

Unavailable

WASHER, PLAIN LARGE

92907-03200-00

Unavailable

ELEMENT, AIR CLEANER

4SS-14451-00-00

Unavailable

WASHER (4H7)

90209-06096-00

Unavailable

BOLT, WING

90122-06005-00

Unavailable

GUIDE

3JD-14458-01-00

Unavailable

NUT, SPRING (26H)

90183-06023-00

Unavailable

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
