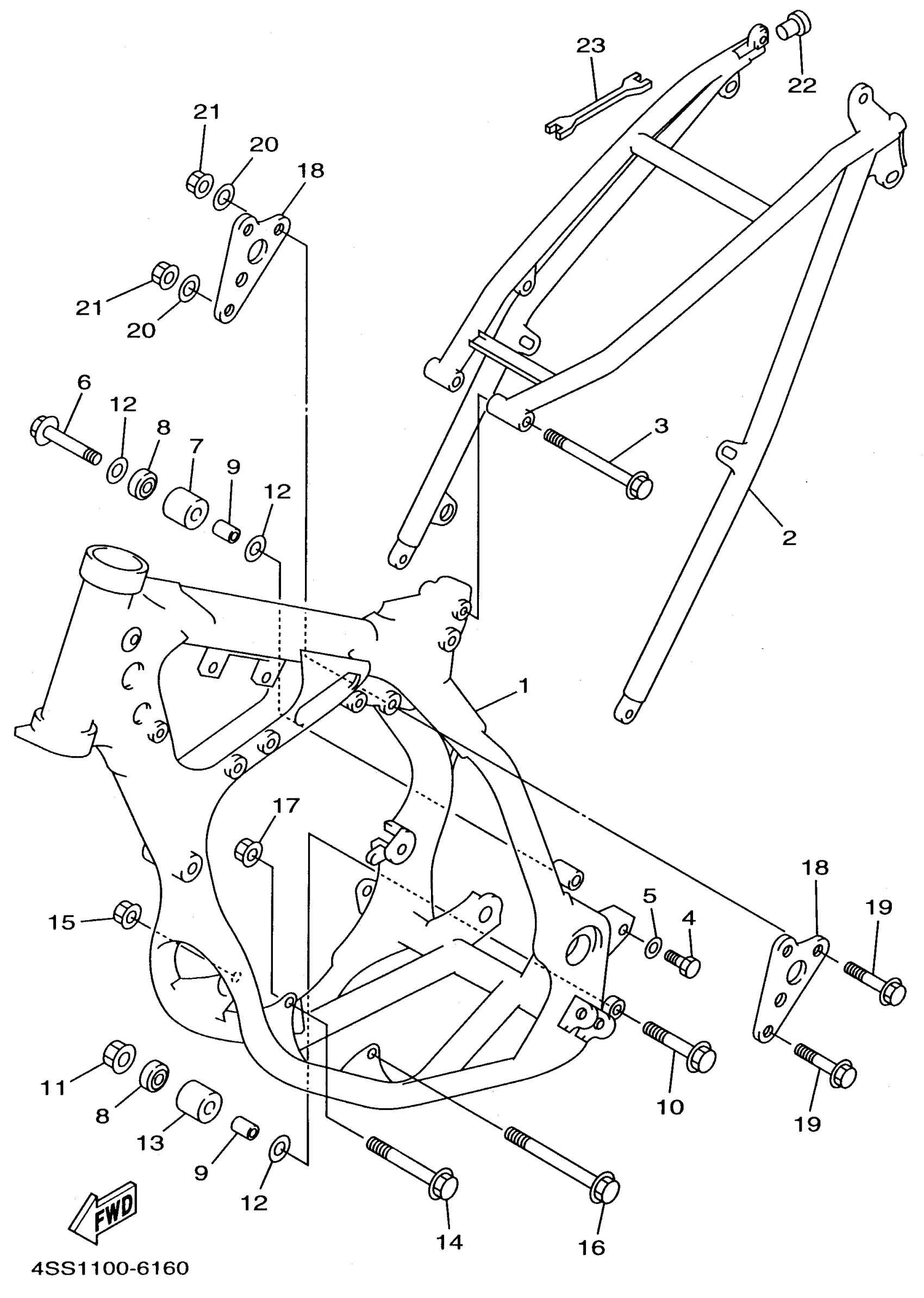

Yamaha YZ125H1 (YZ125) 4SS2 1996 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

4SS-21101-00-UJ

Unavailable

2

REAR FRAME COMP.

4SS-21190-00-UJ

Unavailable

3

BOLT (1W1)

90105-08099-00

$5.60

4

BOLT(4EW)

90106-08051-00

Unavailable

5

WASHER, PLATE (7R4)

90201-080E2-00

$4.73

6

BOLT, FLANGE(4MY)

95027-08040-00

$8.49

7

TENSIONER

4EW-22178-01-00

Unavailable

8

BEARING (3X3)

93300-60804-00

$12.49

9

COLLAR(1NL)

90387-086N4-00

$9.49

10

BOLT, FLANGE

95027-08065-00

$10.49

11

NUT, FLANGE(JN5)

95707-08500-00

$3.13

12

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

13

TENSIONER

3JD-22178-20-00

$43.99

14

BOLT, FLANGE

95817-08090-00

$4.77

15

NUT, SELF-LOCKING

90185-08169-00

$8.49

16

BOLT, WASHER BASED(3RB)

90105-10733-00

Unavailable

17

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

18

BRACKET, REAR UPPER 1

4SS-21425-00-00

Unavailable

19

BOLT, FLANGE

95817-08050-00

Unavailable

20

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

21

NUT, SELF-LOCKING

90185-08169-00

$8.49

22

PLUG(55K)

90338-16148-00

Unavailable

23

WRENCH, HEXAGON

56A-28166-00-00

Unavailable
