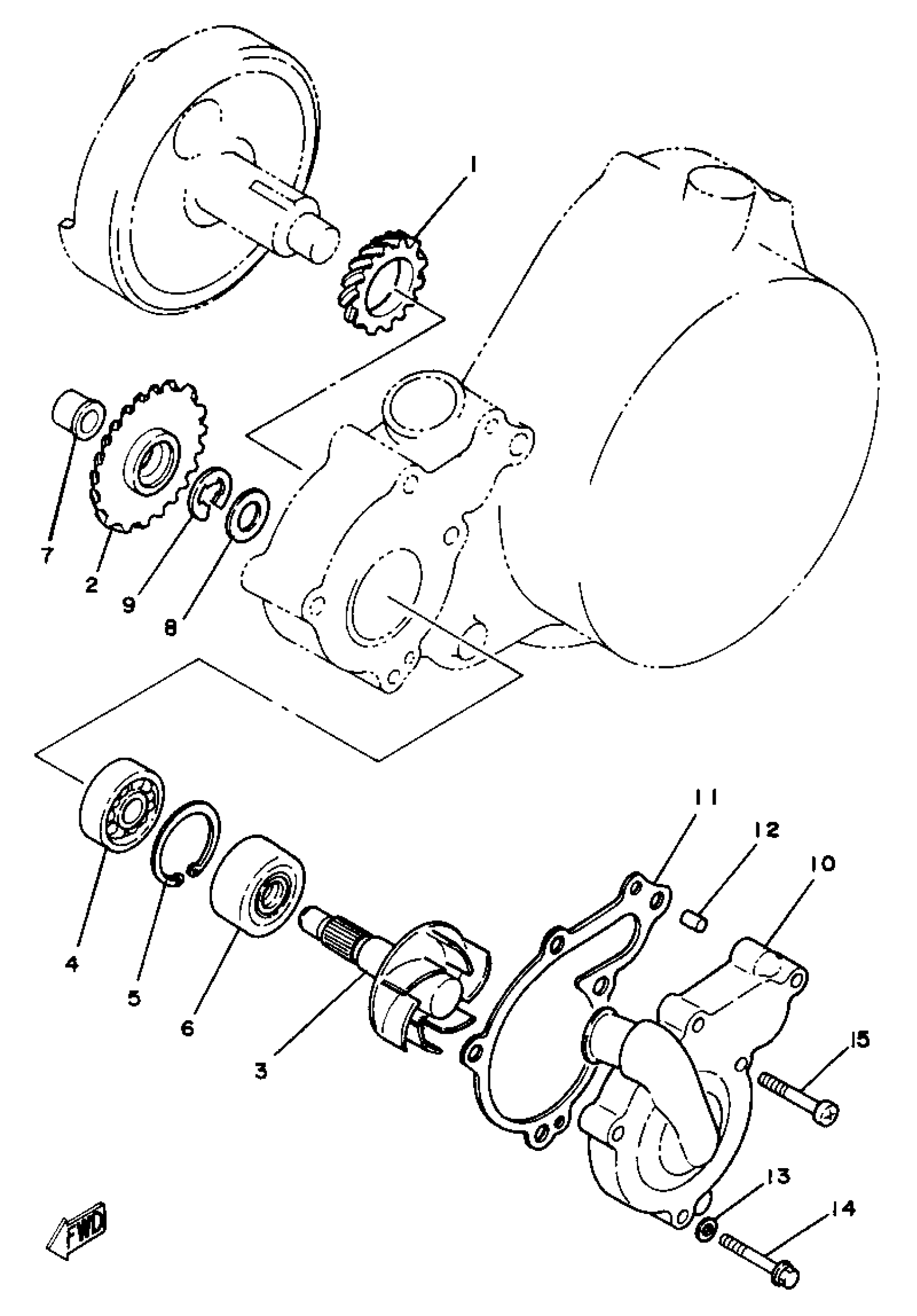

Yamaha YZ125H (YZ125H) 1981 WATER PUMP Diagram

GEAR, DRIVE

(4V2-12436-01-00)

Unavailable

GEAR, IMPELLER SHAF

4V2-12459-01-00

Unavailable

IMPELLER SHAFT ASSEMBLY

4V2-12450-00-00

Unavailable

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

CIRCLIP (3Y1)

93420-28055-00

$9.49

OIL SEAL (4V2)

93103-12119-00

Unavailable

BUSH (214-17843-00)

90381-08002-00

$11.49

WASHER, PLATE (2W5)

90201-10614-00

$8.49

CIRCLIP(2R6)

99001-08600-00

$8.49

COVER, HOUSING

4V2-12422-01-00

Unavailable

GASKET, HSNG COR 2

4V2-12428-01-00

Unavailable

PIN,DOWEL (603)

93604-10011-00

$8.49

GASKET (4V2)

90430-06166-00

$3.76

BOLT, FLANGE

95817-06025-00

Unavailable

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77
