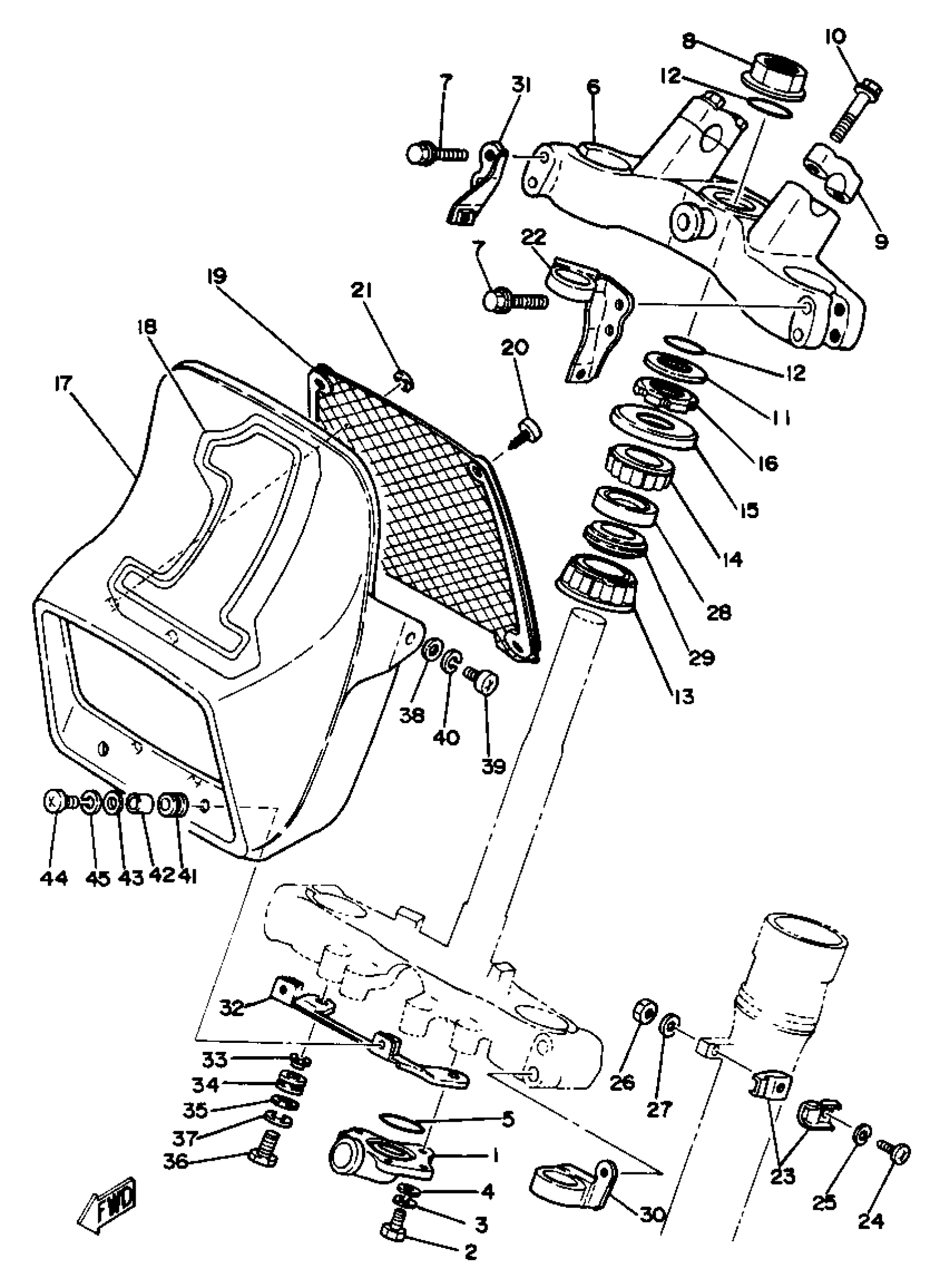

Yamaha YZ125H (YZ125H) 1981 STEERING Diagram
#
1
JOINT
(4V2-23491-00-00)
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
5
O-RING
93210-37M67-00
Unavailable
6
CROWN, HANDLE
4V2-23435-00-98
Unavailable
8
NUT
90179-22330-00
Unavailable
11
WASHER, PLATE
90201-237E8-00
Unavailable
15
COVER, BALL RACE 2
1W1-23416-00-00
Unavailable
16
NUT
90179-25004-00
Unavailable
17
PLATE, NUMBER
(4V2-23485-00-00)
Unavailable
18
EMBLEM 2
3R2-21782-00-00
Unavailable
19
PROTECTOR
4V2-23472-00-00
Unavailable
20
SCREW, TAPPING(61A)
97780-50612-00
Unavailable
21
NUT SPRING 116283170100
90183-04005-00
Unavailable
22
HOLDER, CABLE
4V2-23317-00-00
Unavailable
23
CLAMP (3R0)
90462-14055-00
Unavailable
24
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
NUT, HEXAGON
95380-06600-00
Unavailable
28
OIL SEAL, SD-TYPE
93102-28234-00
Unavailable
29
OIL SEAL, OS-TYPE
93107-30009-00
Unavailable
30
GUIDE, CABLE
(4V2-23389-00-00)
Unavailable
31
STAY
(4V2-2317E-00-00)
Unavailable
32
STAY, PLATE
4V2-23486-00-00
Unavailable
33
SPACER (4F2)
90560-06201-00
Unavailable
34
GROMMET (462)
90480-13018-00
Unavailable
35
WASHER, PLATE
90201-06049-00
Unavailable
36
BOLT, HEXAGON
97017-06020-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
38
WASHER, PLATE
90201-06380-00
Unavailable
39
SCREW, PAN
98507-06014-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
41
GROMMET (J10)
90480-13238-00
Unavailable
42
COLLAR (J10)
90387-06026-00
Unavailable
43
WASHER, PLATE
90201-06049-00
Unavailable
44
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
45
WASHER, SPRING
92995-06100-00
Unavailable
