1981 Yamaha YZ125H (YZ125H) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1981 Yamaha YZ125H (YZ125H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

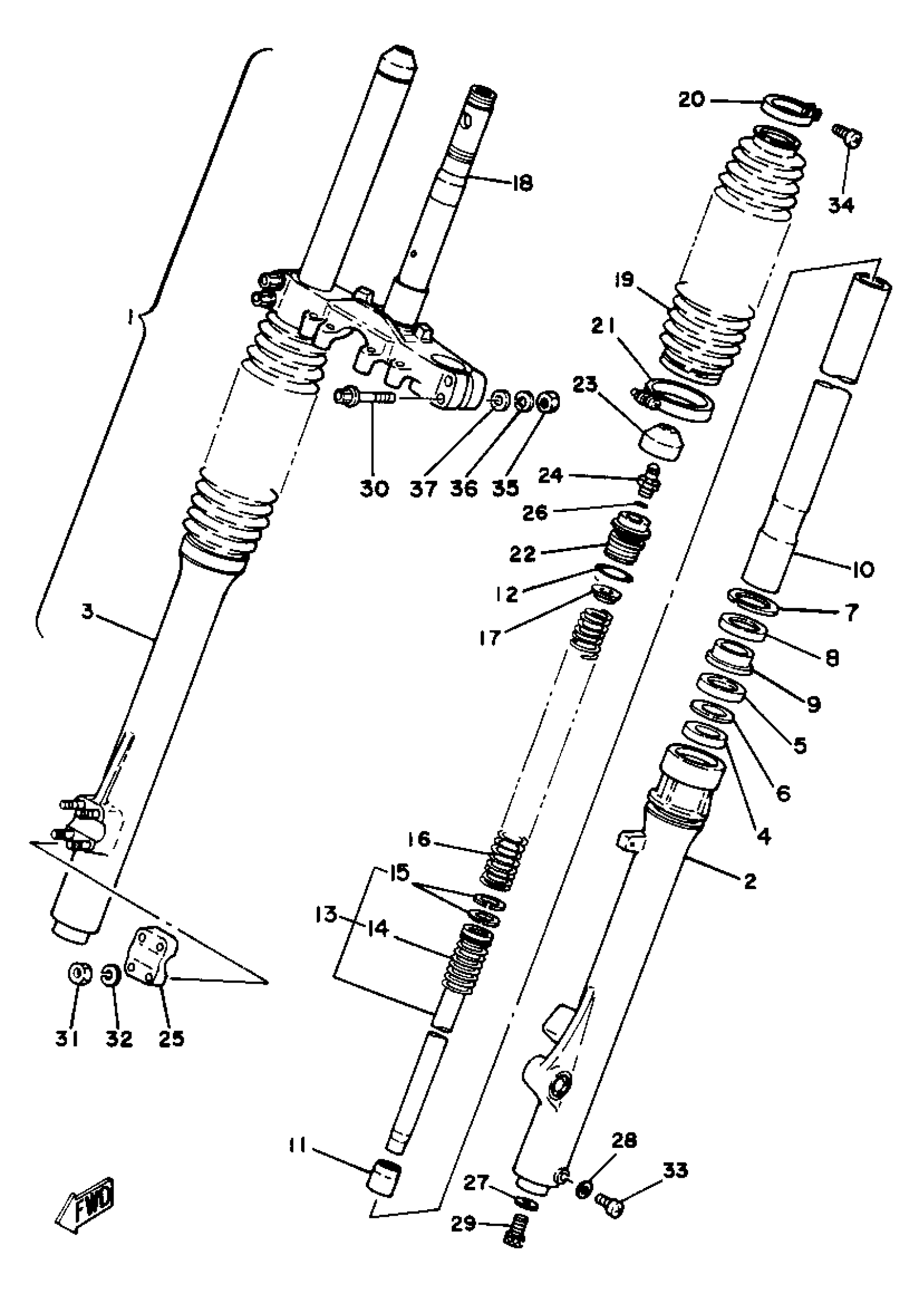

1981 Yamaha YZ125H (YZ125H) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(4V2-23101-L0-00)

1
Out of stock

2

. TUBE, OUTER 1

4V2-23126-L1-00

1
Out of stock

3

TUBE, OUTER 2

(4V2-23136-L0-00)

1
Out of stock

4

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

5

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

6

WASHER

4V2-23146-L0-00

1
Out of stock

7

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

8

.. SEAL, DUST

3R4-23144-00-00

1
Out of stock

9

.. COVER, DUST SEAL

3R4-23148-00-00

1
Out of stock

10

INNER TUBE 1

(4V2-23110-L0-00)

1
Out of stock

11

SPINDLE, TAPER

(3R4-23173-L0-00)

1
Out of stock

12

O-RING

1W4-23114-L0-00

1

$7.45

In stock

13

CYLINDER, FRTFRK

(4V2-23170-L0-00)

1
Out of stock

14

SPRING, REBOUND

(1W4-23151-L0-00)

1
Out of stock

15

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

1
Out of stock

16

SPRING, FRONT FORK

(3R4-23141-10-00)

1
Out of stock

16

SPRING, FRTFRK SOFT

(4V2-23141-10-00)

1
Out of stock

16

SPRING, FRTFRK HARD

(4V2-23141-20-00)

1
Out of stock

17

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

18

UNDER BRACKET

(4V2-23340-L0-33)

1
Out of stock

19

. BOOT, FRONT FORK

3R4-23191-M0-00

1
Out of stock

20

. BAND

1W4-23192-L0-00

1
Out of stock

21

BAND

1W4-23489-L0-00

1
Out of stock

22

. BOLT, CAP

1W4-23111-L1-00

1
Out of stock

23

. COVER, VALVE

1W1-23185-L0-00

1
Out of stock

24

. AIR VALVE

509-23190-L0-00

1
Out of stock

25

HOLDER, AXLE

4V2-23167-L0-00

—
Out of stock

26

. O-RING

509-23163-L0-00

1
Out of stock

27

GASKET

2K8-23158-L0-00

—
Out of stock

28

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

29

BOLT

3R4-23181-L0-00

—
Out of stock

30

. BOLT 1

4V2-23346-L0-00

1
Out of stock

31

NUT(6TA)

95317-06600-00

—

$2.69

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

34

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

35

NUT(6L2)

95333-08600-00

—

$3.20

In stock

36

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

37

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
