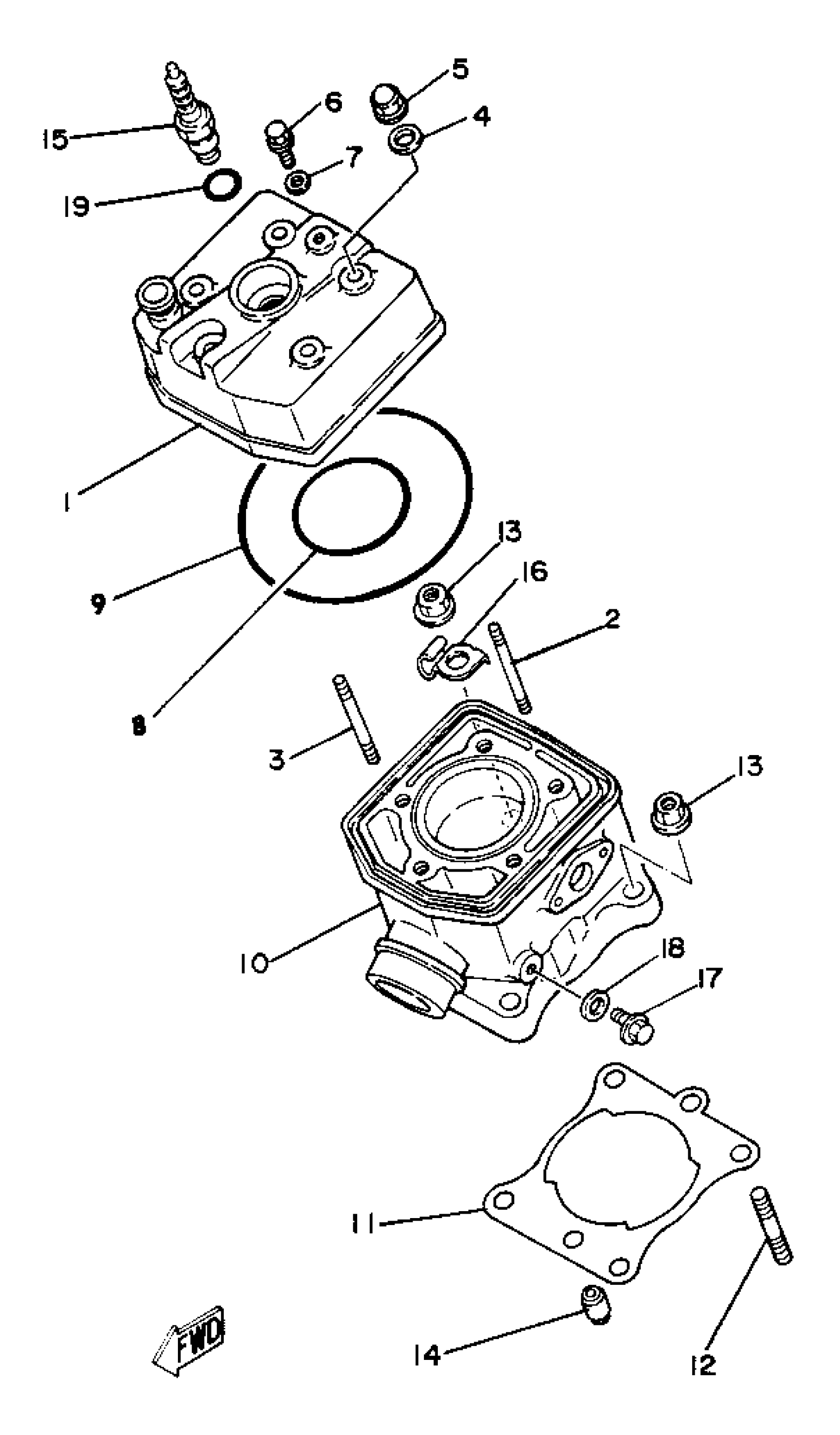

Yamaha YZ125H (YZ125H) 1981 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

(4V2-11111-00-00)

Unavailable

2

BOLT, STUD (8H8)

90116-08302-00

$10.49

3

BOLT, STUD

90116-08364-00

Unavailable

4

WASHER, PLATE 3411117500

90201-08087-00

$3.71

5

NUT, CROWN (4G0)

90176-08026-00

$14.99

6

BOLT, FLANGE

95812-06010-00

$2.98

7

GASKET (4V2)

90430-06166-00

$3.76

8

O-RING (4H7)

93210-69434-00

$13.49

9

O-RING (3Y2)

93211-19413-00

$15.99

10

CYLINDER 1

4V2-11311-00-00

Unavailable

11

GASKET, CYLINDER

4V2-11351-01-00

$19.99

12

BOLT, STUD

90116-10132-00

Unavailable

13

NUT, FLANGE(3BM)

95704-10500-00

$4.29

14

PIN, DOWEL(3VD)

99530-10114-00

$2.55

15

BR10EIX NGK SPLUG 4PK

BR1-0EIX0-00-00

Unavailable

16

HOLDER 1

4V2-1131E-00-00

Unavailable

17

BOLT, SMALL FLANGE

95027-08012-00

Unavailable

18

WASHER, PLATE 3411117500

90201-08087-00

$3.71

19

O-RING (538)

93210-16290-00

Unavailable
