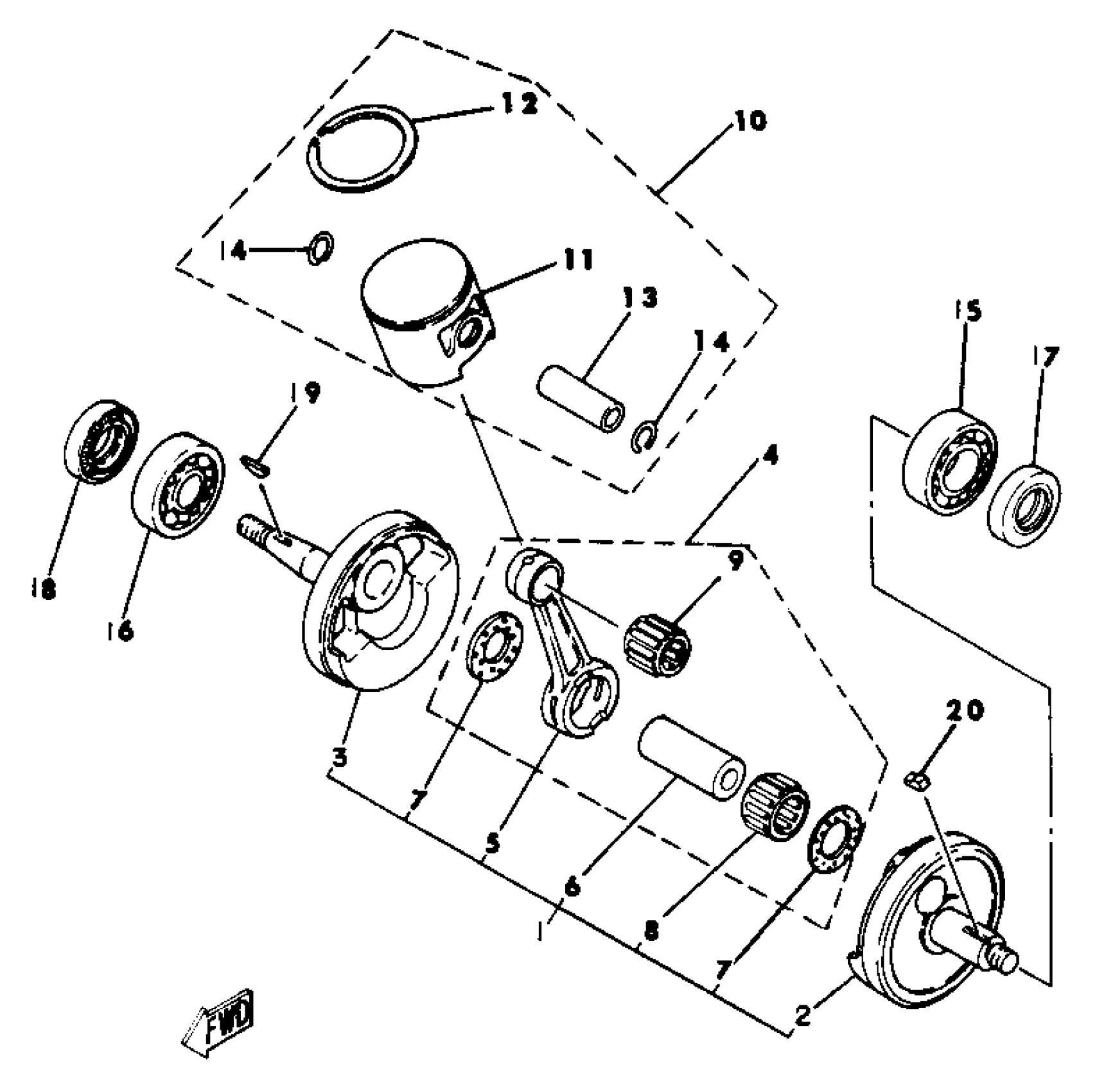

Yamaha YZ125H (YZ125H) 1981 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

4V2-11400-00-00

Unavailable

2

. CRANK 1

4V2-11412-00-00

Unavailable

3

. CRANK 2

4V2-11422-00-00

Unavailable

4

. CONNECTING ROD ASSEMBLY

4V2-11650-00-00

Unavailable

5

.. ROD, CONNECTING

4V2-11651-00-00

Unavailable

6

PIN, CRANK 1

3M5-11681-00-00

$24.99

7

WASHER (29L)

90209-22248-00

Unavailable

8

BEARING (3R3)

93310-422H0-00

Unavailable

9

BEARING, NEEDLE (24X)

93310-216L2-00

$33.99

10

PISTON KIT STD (STD)

4V2-11630-00-00

Unavailable

11

PISTON STD

3N8-11631-10-93

Unavailable

12

RING, PISTON STD (STD)

2K6-11611-00-00

Unavailable

13

PIN, PISTON

137-11633-10-00

$27.99

14

CIRCLIP(1AR)

93450-17129-00

$4.14

15

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$65.99

16

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

17

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

18

OIL SEAL, SD-TYPE

93102-25258-00

Unavailable

19

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

20

RING, PISTON 1ST (1ST O/S)

2K6-11611-10-00

Unavailable

20

RING, PISTON 2ND (2ND O/S)

2K6-11611-20-00

Unavailable

20

RING, PISTON 3RD (3RD O/S)

2K6-11611-30-00

Unavailable

20

RING, PISTON 4TH (4TH O/S)

2K6-11611-40-00

Unavailable

20

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

3N8-11635-10-00

Unavailable

20

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

3N8-11636-10-00

Unavailable

20

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

3N8-11637-10-00

Unavailable

20

PISTON 4 O/S 1.00 (4TH O/S 1.00)

3N8-11638-10-00

Unavailable

20

PISTON KIT 1ST (1ST O/S)

4V2-11630-10-00

Unavailable

20

PISTON KIT 2ND (2ND O/S)

4V2-11630-20-00

Unavailable

20

PISTON KIT 3RD (3RD O/S)

4V2-11630-30-00

Unavailable

20

PISTON KIT 4TH (4TH O/S)

4V2-11630-40-00

Unavailable

20

KEY, STRAIGHT

90282-05046-00

Unavailable
