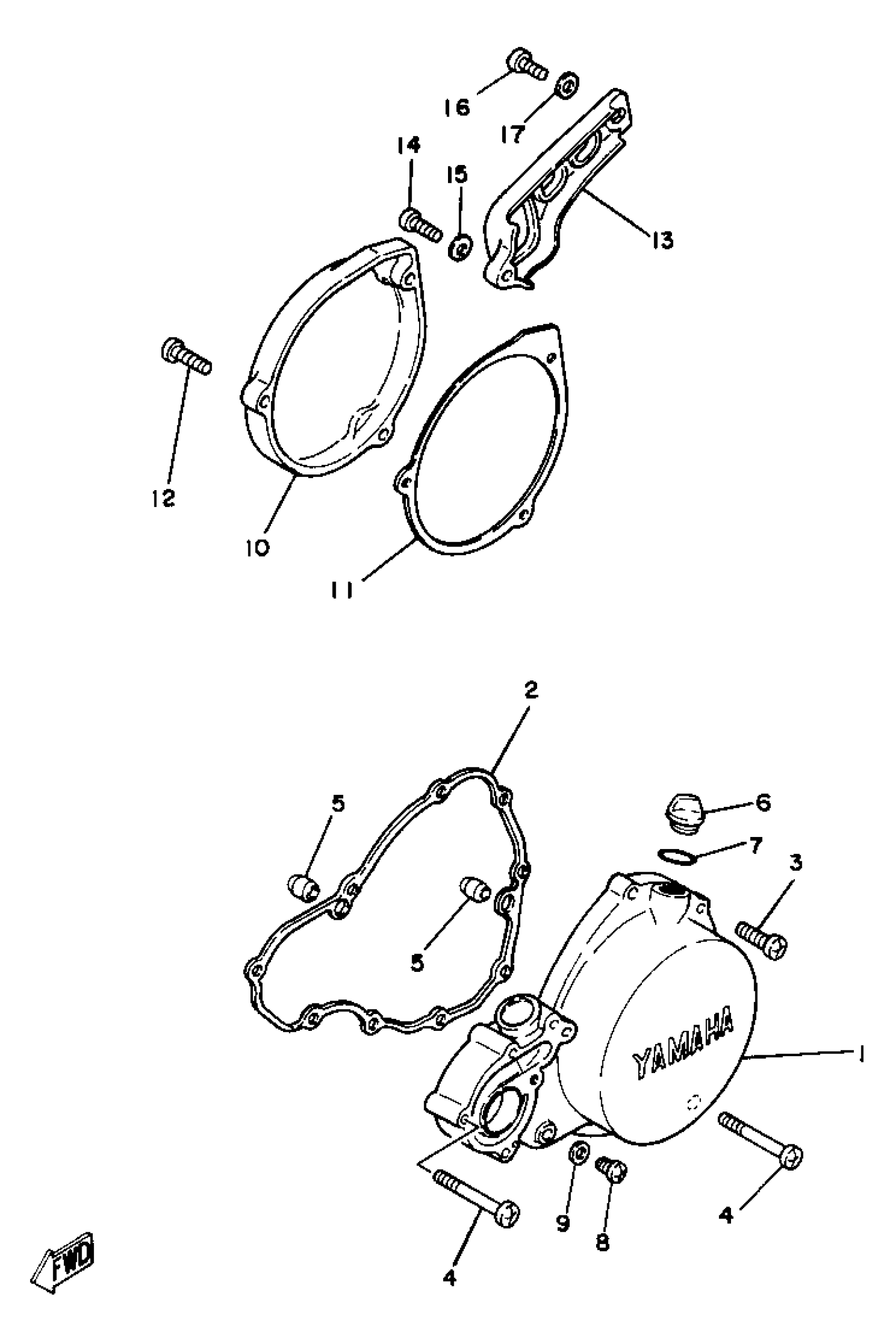

Yamaha YZ125H (YZ125H) 1981 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

(4V2-15411-00-00)

Unavailable

2

GASKET,CRCS COVER

4V2-15451-01-00

Unavailable

3

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

4

SCREW, PAN

98507-06055-00

$8.49

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

7

O-RING (26H)

93210-14579-00

$7.49

8

SCREW, PAN

98517-06008-00

$8.49

9

GASKET 838153840000

90430-06016-00

$8.49

10

COVER, CRANKCASE R

3R3-15421-00-00

Unavailable

11

GASKET 1

4V2-15455-00-00

Unavailable

12

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

13

COVER, CRANKCASE 3

55Y-15431-00-00

Unavailable

14

SCREW, PAN

98507-06014-00

$8.49

15

WASHER, PLATE

90201-06380-00

$0.60

16

SCREW PAN HEAD

98580-06020-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
