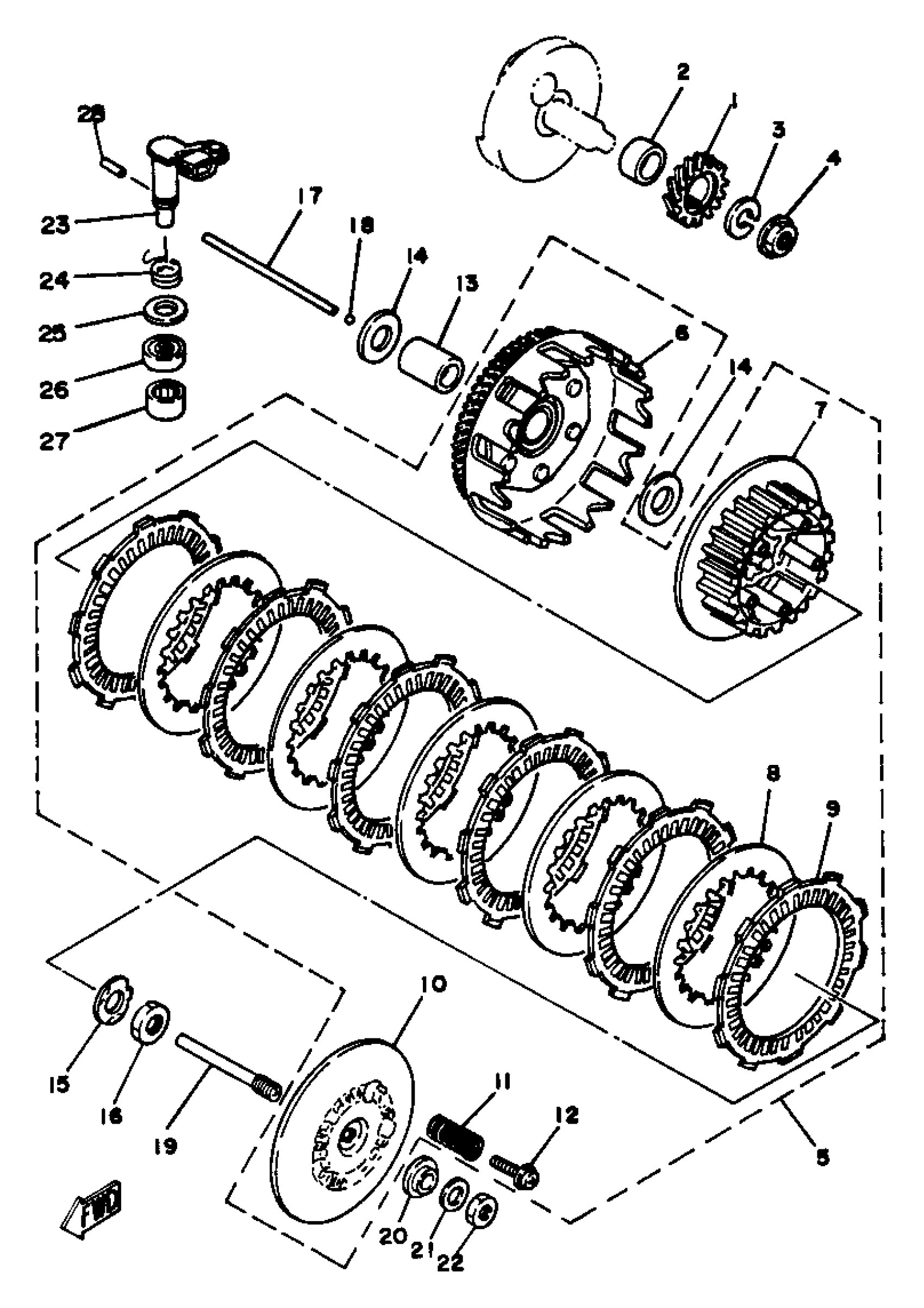

Yamaha YZ125H (YZ125H) 1981 CLUTCH Diagram

#

Description
Price

1

GEAR, PRI DRIVE (18T)

4V2-16111-00-00

Unavailable

2

COLLAR

(90387-201E7-00)

Unavailable

3

WASHER, SPRING (1W1)

90204-12007-00

$8.49

4

NUT (4V2)

90179-12335-00

Unavailable

5

CLUTCH ASSEMBLY

(4V2-16300-00-00)

Unavailable

6

. PRI DRVN GEAR (62T)

4V2-16150-00-00

Unavailable

7

. BOSS, CLUTCH (4V2-16371-00)

4V2-16371-01-00

Unavailable

8

PLATE, CLUTCH 1

336-16324-10-00

$18.49

9

PLATE, FRICTION

537-16321-00-00

$17.49

10

. PLATE, PRESSURE 1

1W1-16351-00-00

Unavailable

11

SPRING, COMPRESSION (400)

90501-20361-00

$13.49

12

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

13

SPACER

90560-17190-00

Unavailable

14

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

15

WASHER, LOCK (2K6)

90215-14204-00

$9.49

16

NUT, HEXAGON

90170-14171-00

Unavailable

17

ROD, PUSH (2)

257-16357-00-00

Unavailable

18

BALL

93503-16003-00

Unavailable

19

ROD, PUSH

1W1-16356-02-00

Unavailable

20

PLATE, PUSH

1W1-16358-01-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

PUSH LEVER ASSEMBLY

3R3-16380-02-00

Unavailable

24

SPRING, TORSION

90508-14426-00

Unavailable

25

WASHER PLATE 150251530000

90201-14217-00

Unavailable

26

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

27

BEARING, CYLINDRICAL (3R3)

93315-21429-00

Unavailable

28

PIN, DOWEL (409)

93604-16092-00

Unavailable
