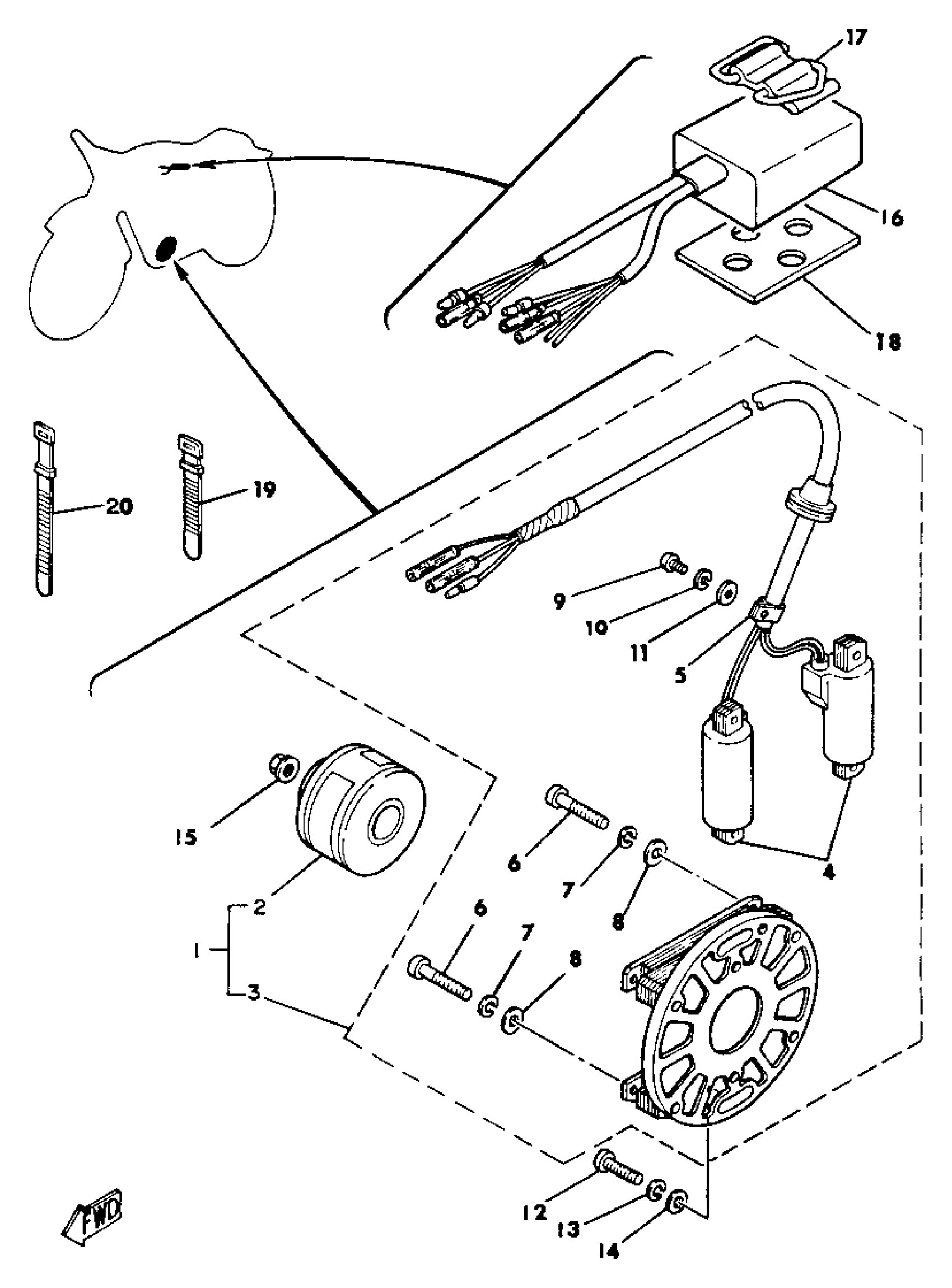

Yamaha YZ125H (YZ125H) 1981 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(3R3-85500-11-00)

Unavailable

2

ROTOR ASSEMBLY

(3R3-85550-10-00)

Unavailable

3

STATOR ASSEMBLY

(3R3-85510-11-00)

Unavailable

4

COIL, CHARGE

(3R3-85520-11-00)

Unavailable

5

. CLAMP

109-81328-11-00

Unavailable

6

SCREW, PAN HEAD

98517-05030-00

$10.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

SCREW PAN HEAD

98580-06020-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

NUT, SPECIAL SHAPE

90179-10257-00

Unavailable

16

CDI UNIT ASSEMBLY

3R3-85540-11-00

Unavailable

17

BAND, BATTERY

116-82131-00-00

Unavailable

18

DAMPER

1M2-85547-00-00

Unavailable

19

BAND, SWITCH CORD

437-83936-01-00

Unavailable

20

BAND, SWITCH CORD

25G-83936-01-00

Unavailable
