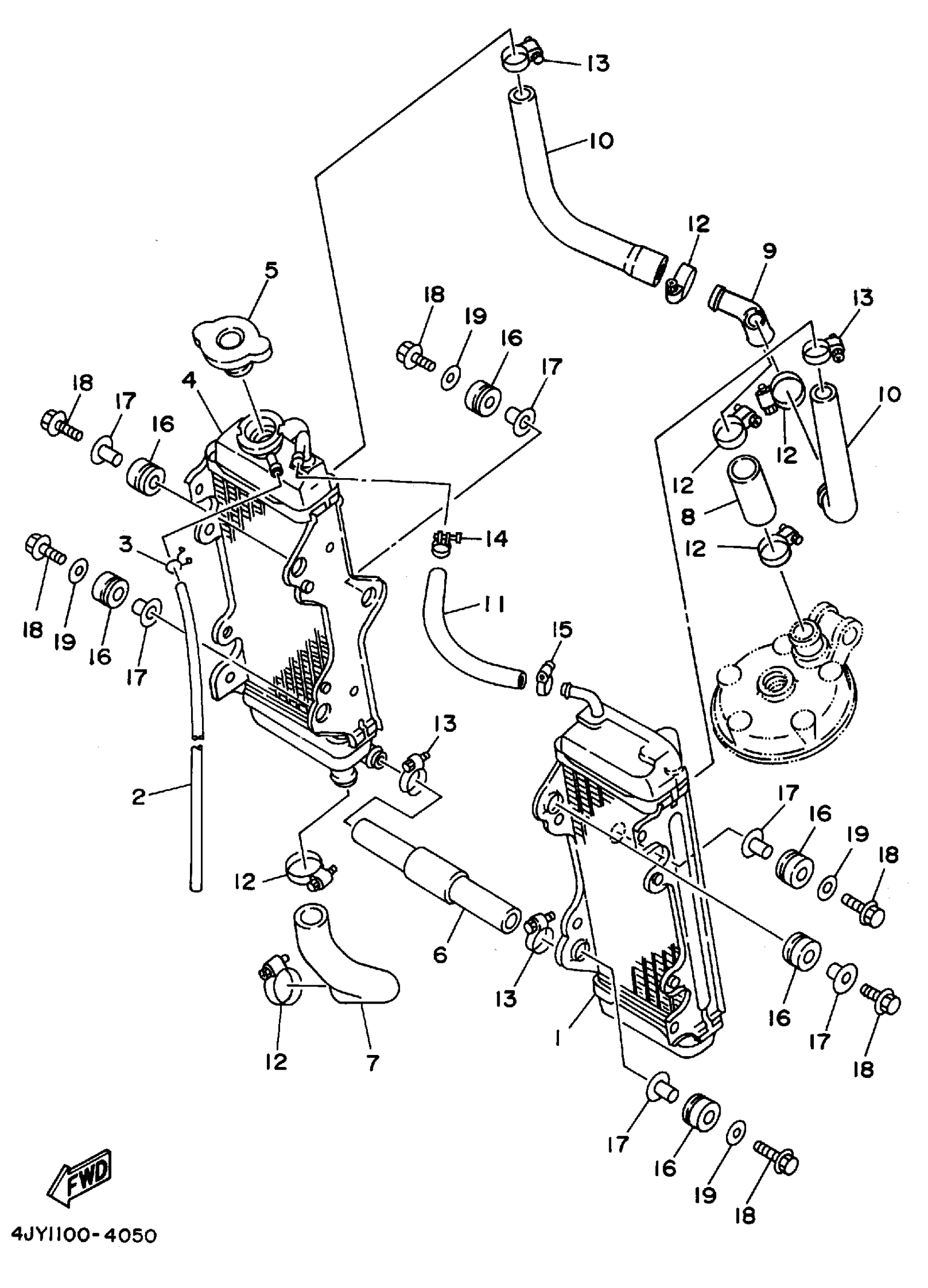

Yamaha YZ125G1 (YZ125) 1995 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY 2

4EW-1240A-01-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

3

CLIP

90467-090A2-00

$4.41

4

RADIATOR ASSEMBLY

4EX-12461-00-00

Unavailable

5

CAP, RADIATOR

4FL-12462-00-00

$62.99

6

PIPE 2

4EW-12482-01-00

Unavailable

7

PIPE 3

4JY-12483-00-00

Unavailable

8

PIPE 3

3AK-12483-00-00

Unavailable

9

JOINT 1

4EX-12469-00-00

Unavailable

10

PIPE 7

4EX-12477-01-00

Unavailable

11

PIPE 8

4JW-1248A-00-00

Unavailable

12

HOSE CLAMP ASSY

90450-28001-00

$14.99

13

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

14

HOSE CLAMP ASSEMBLY

90450-15041-00

Unavailable

15

HOSE CLAMP ASSY(62T)

90450-14M05-00

$17.99

16

GROMMET(3RB)

90480-15528-00

Unavailable

17

COLLAR

90387-0614M-00

Unavailable

18

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

19

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable
