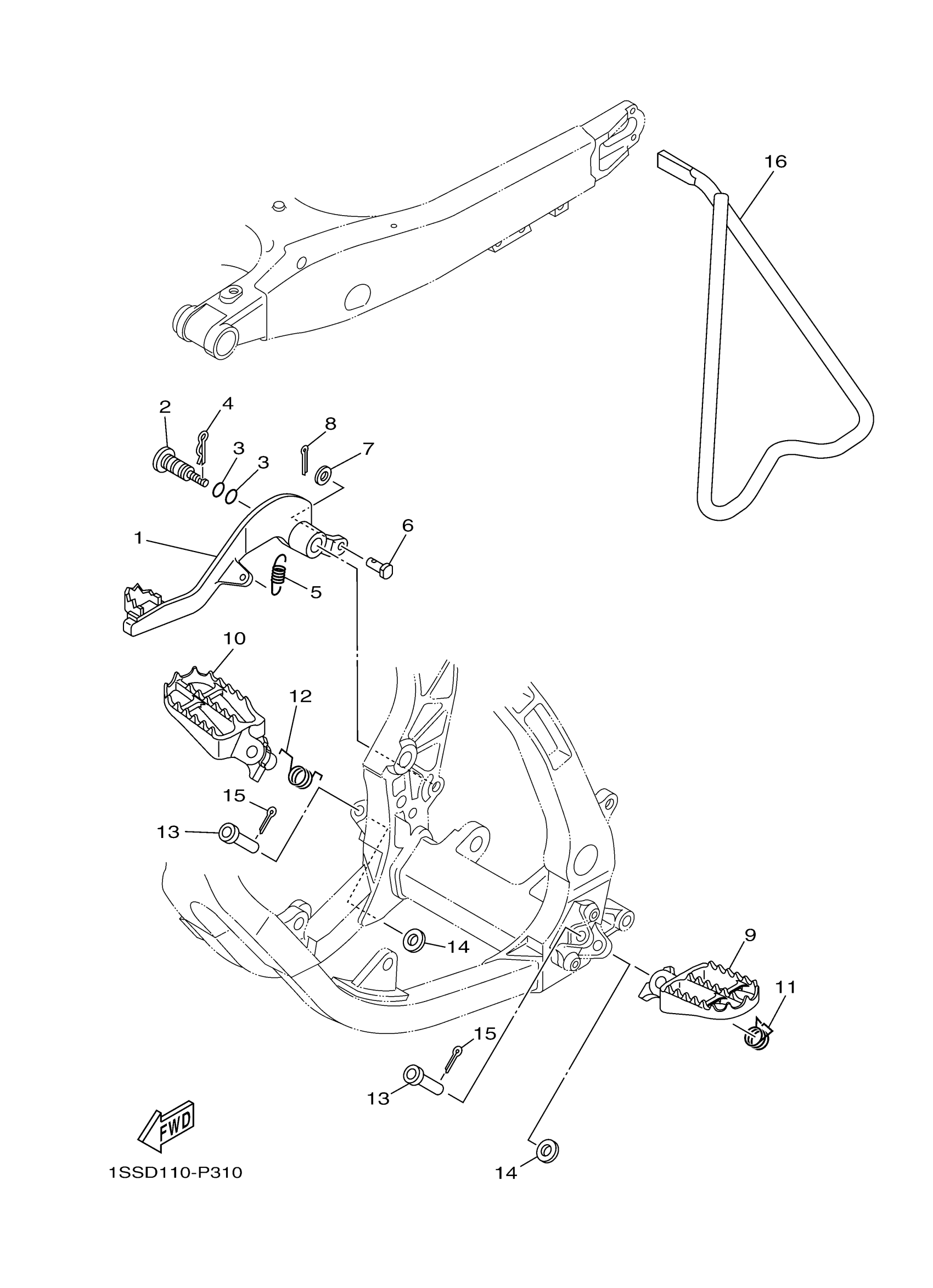

Yamaha YZ125F2 (YZ125) 1SRD 2015 STAND FOOTREST Diagram

Description

Price

PEDAL, BRAKE

4XM-27200-21-00

$95.99

BOLT

1C3-27217-10-00

$27.99

O-RING (P95)

93210-11073-00

$7.49

CLIP

90468-16001-00

$5.60

SPRING, TENSION

90506-16007-00

$8.49

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

WASHER, PLATE

90201-08044-00

$8.49

PIN, COTTER (648)

91490-20015-00

$2.20

FOOTREST 1

17D-27411-00-00

$72.99

FOOTREST 2

17D-27421-00-00

$72.99

SPRING, TORSION

90508-28015-00

$9.49

SPRING, TORSION

90508-28018-00

$7.49

PIN, CLEVIS

90240-10004-00

$13.99

WASHER, PLATE

90201-10032-00

$1.17

PIN, COTTER

91490-25020-00

$3.19

STAND, SIDE

1C3-27311-00-00

Unavailable
