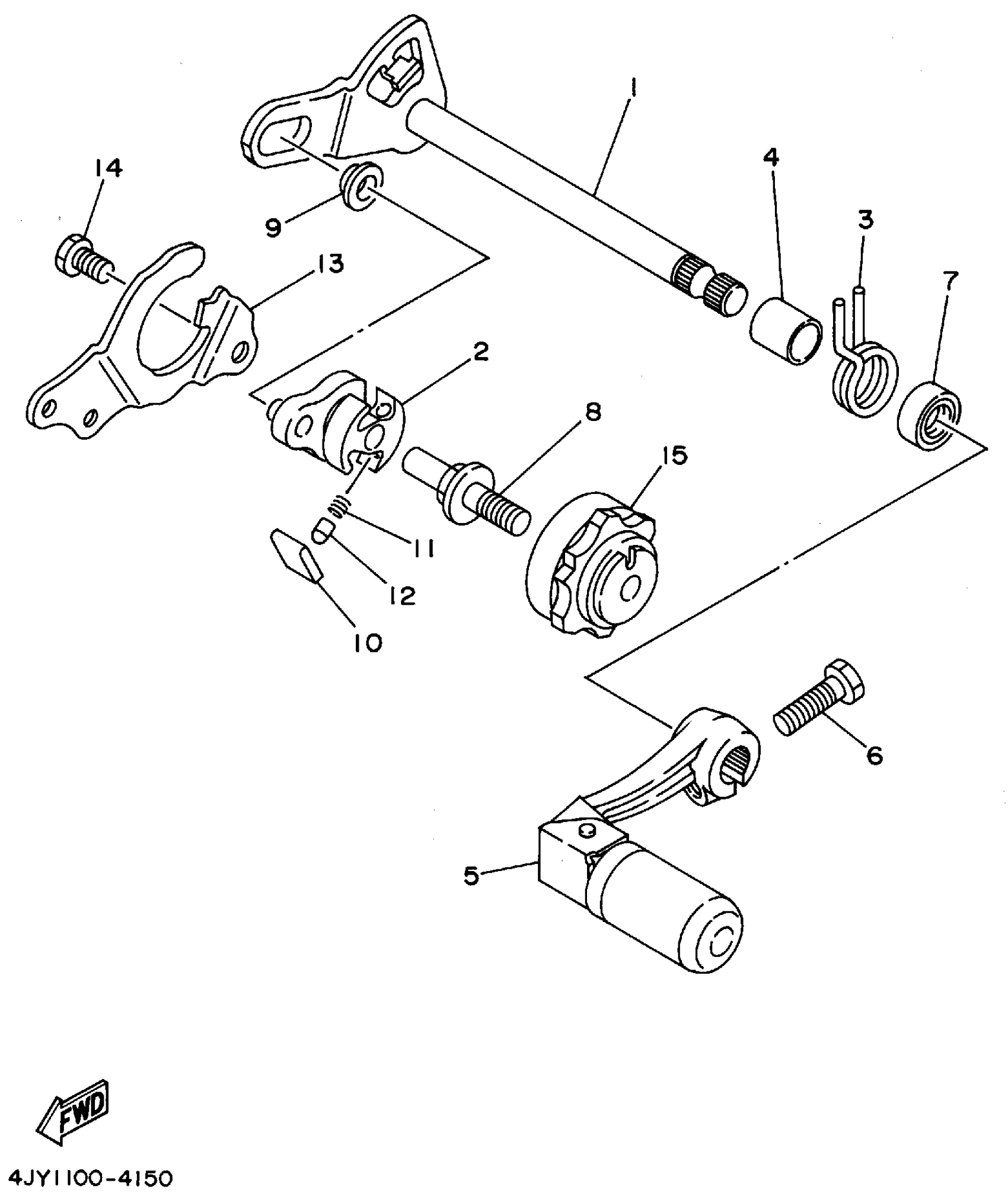

Yamaha YZ125F1 (YZ125F1) 1994 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY

4JY-18101-00-00

Unavailable

2

LEVER, SHIFT 2

5MV-18122-01-00

Unavailable

3

SPRING, TORSION

90508-295A7-00

Unavailable

4

SPACER(1LX)

90560-12280-00

$12.49

5

SHIFT PEDAL ASSEMBLY

1LX-18110-02-00

Unavailable

6

BOLT, HEXAGON

97017-06025-00

$4.24

7

OIL SEAL (12X19X5-401)

93109-12012-00

$10.49

8

PIN, SHIFT

3XJ-18173-10-00

$19.99

9

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

10

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

11

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

12

PIN, PAWL

3XJ-18184-00-00

$15.49

13

GUIDE, SHIFT

4JY-18172-00-00

Unavailable

14

BOLT

90101-06664-00

Unavailable

15

SEGMENT

4EW-18185-00-00

$109.99
