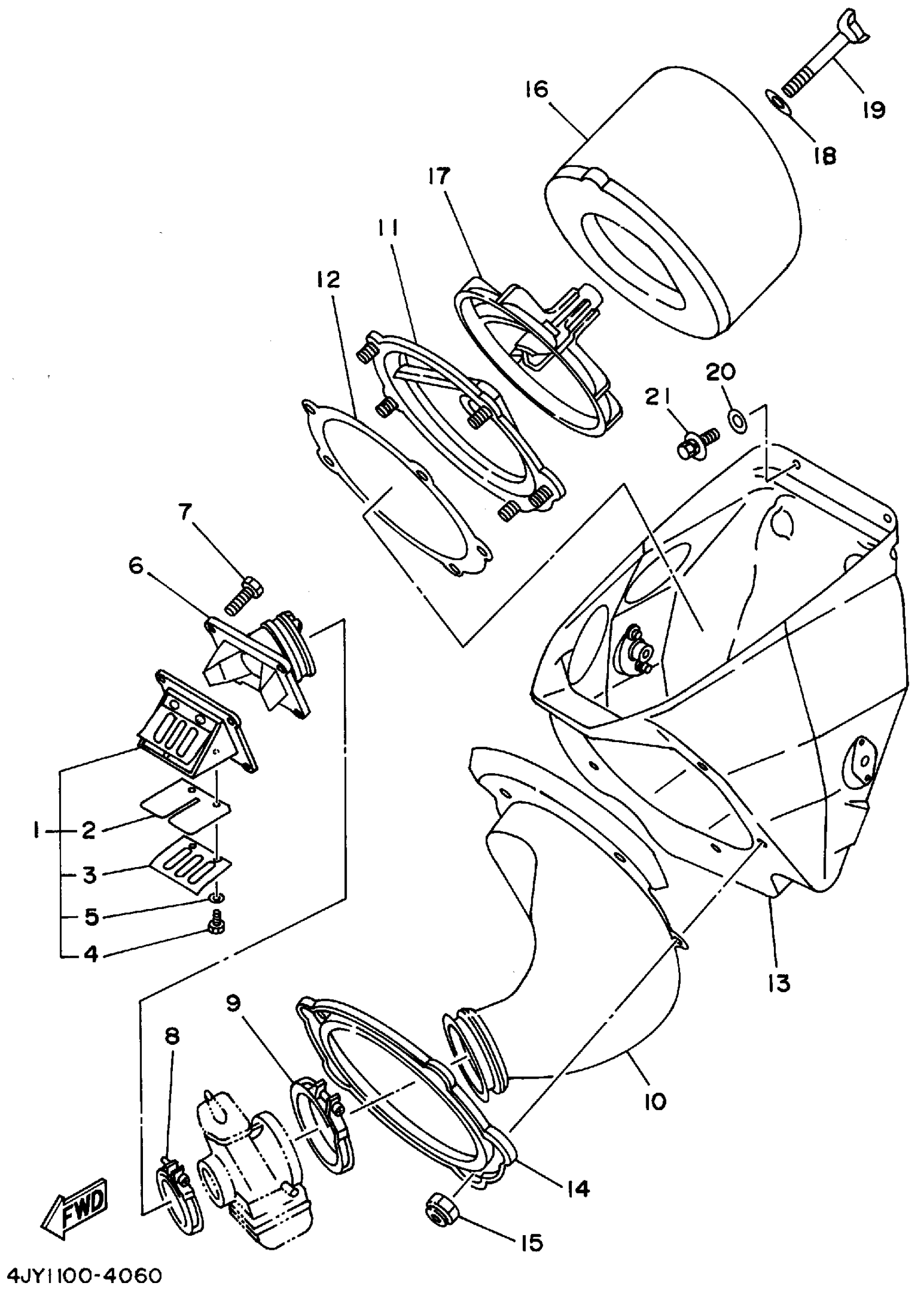

Yamaha YZ125F1 (YZ125F1) 1994 INTAKE Diagram
#
Description
Price
1
REED VALVE ASSY
4JY-13610-10-00
Unavailable
2
REED, VALVE
4JY-13613-10-00
Unavailable
3
. STOPPER, REED VALVE
4JY-13616-00-00
Unavailable
6
JOINT, CARBURETOR
4JY-13565-00-00
Unavailable
10
JOINT,AIR CLEANER
4EX-14453-02-00
Unavailable
11
HOLDER,GUIDE
3JD-14459-01-00
Unavailable
13
CASE, AIR CLEANER
4EW-14411-03-00
Unavailable
14
PLATE
5MV-14477-00-00
Unavailable
16
ELEMENT, AIR CLEANER
4PE-14451-02-00
Unavailable
17
GUIDE
3JD-14458-01-00
Unavailable
18
WASHER (4H7)
90209-06096-00
Unavailable
19
BOLT, WING
90122-06005-00
Unavailable
20
WASHER, PLATE (583 REAR FENDER
90201-06571-00
Unavailable
21
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
