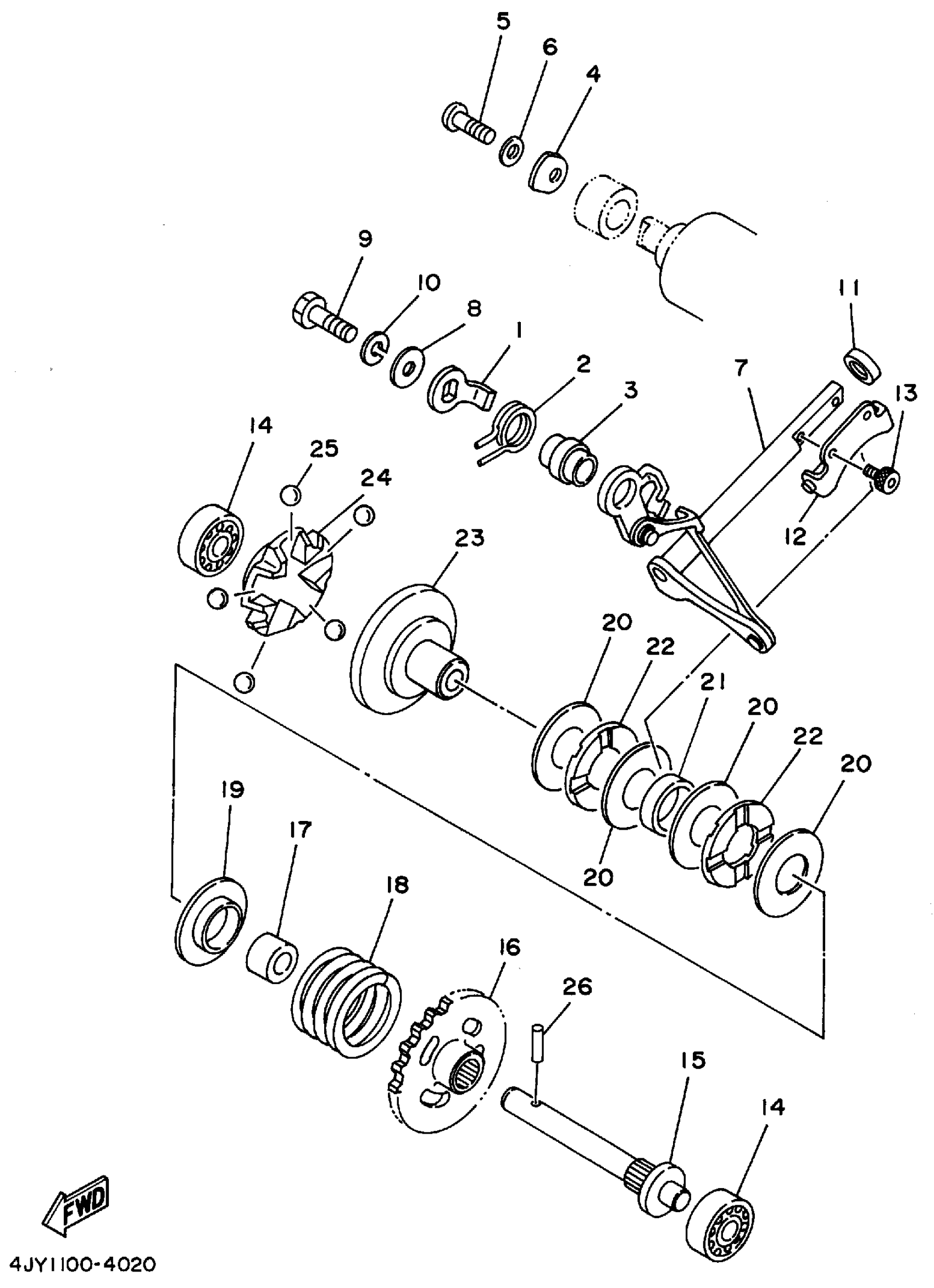

Yamaha YZ125F1 (YZ125F1) 1994 GOVERNOR Diagram

#

Description
Price

1

LEVER

4JY-11931-01-00

Unavailable

2

SPRING, TORSION(3JE)

90508-14783-00

$9.49

3

BOSS, LEVER

4JY-11937-00-00

Unavailable

4

PLATE, THRUST 1

4JY-11915-10-00

$7.99

5

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

PUSH ROD ASSEMBLY

4JY-11990-00-00

Unavailable

8

WASHER, PLATE(39X)

90201-057H5-00

$4.29

9

BOLT(6A1)

97095-05016-00

$1.11

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

OIL SEAL (8X12X3-371)

93104-08040-00

$14.99

12

FORK, GOVERNOR

3JE-11922-01-00

$43.99

13

BOLT, SOCKET

91317-04006-00

$9.49

14

BEARING

93300-60801-00

$21.99

15

SHAFT, GOVERNOR

5X4-11921-02-00

$56.99

16

GEAR, GOVERNOR

24X-11953-01-00

Unavailable

17

SPACER (5X4)

90560-08213-00

Unavailable

18

SPRING, COMPRESSION

90501-264J6-00

Unavailable

19

PLATE

5X4-11952-00-00

Unavailable

20

WASHER, PLATE (5G3)

90201-154E9-00

Unavailable

21

COLLAR (5X4)

90387-152F2-00

Unavailable

22

BEARING, THRUST (713)

93340-21505-00

Unavailable

23

RETAINER, WEIGHT

5X5-11912-01-00

Unavailable

24

RETAINER

4JX-11911-01-00

Unavailable

25

BALL (5X4)

93521-64032-00

Unavailable

26

PIN, DOWEL (5X4)

93603-14179-00

Unavailable
