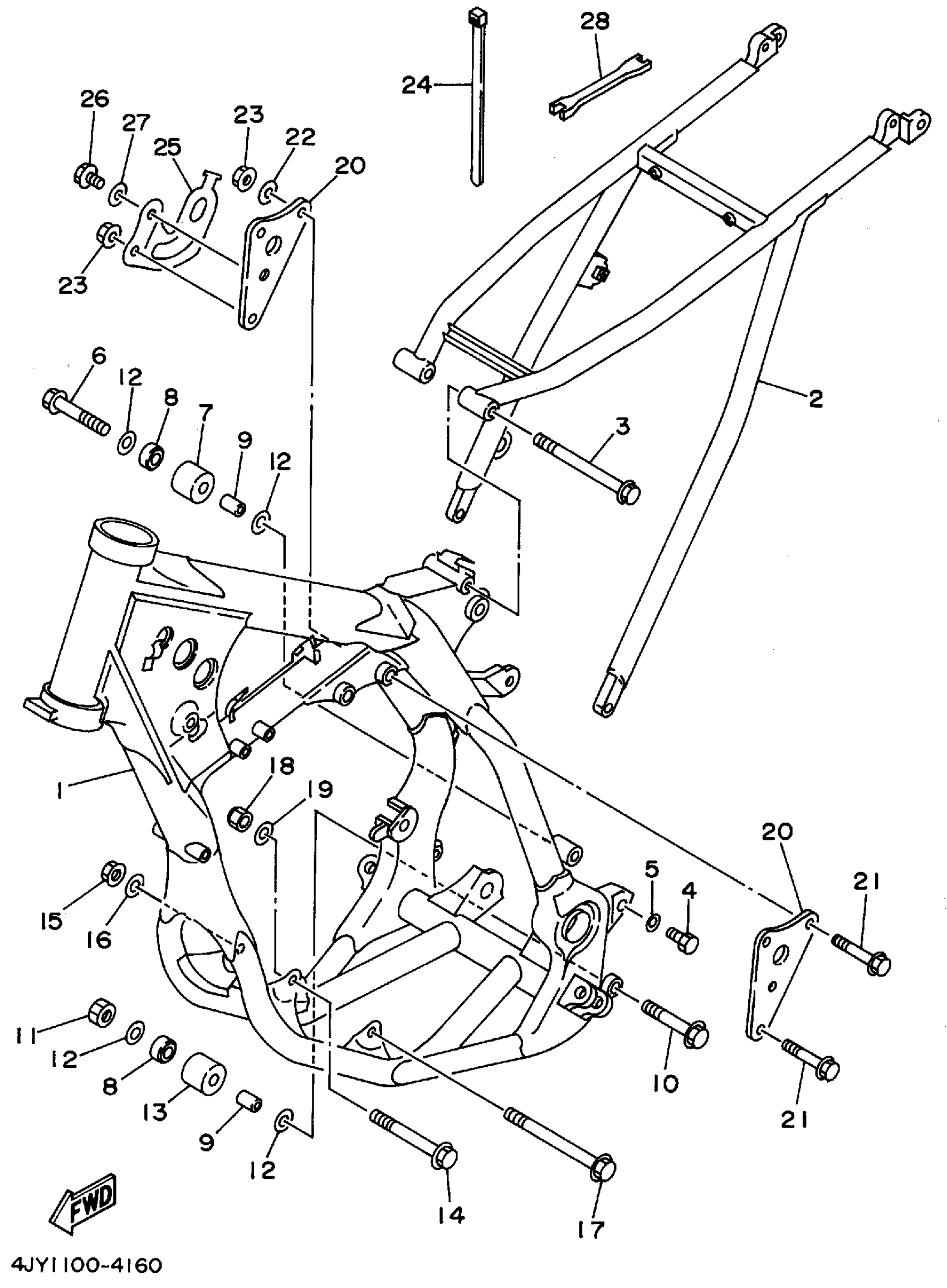

Yamaha YZ125F1 (YZ125F1) 1994 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP

4PE-21101-00-P1

Unavailable

2

REAR FRAME COMP.

4JY-21190-00-P0

Unavailable

3

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

4

BOLT(4EW)

90106-08051-00

Unavailable

5

WASHER, PLATE (7R4)

90201-080E2-00

$4.73

6

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

7

TENSIONER

4EW-22178-01-00

Unavailable

8

BEARING (3X3)

93300-60804-00

$12.49

9

COLLAR(1NL)

90387-086N4-00

$9.49

10

BOLT, FLANGE

95027-08065-00

$10.49

11

NUT, HEXAGON SMALL

95317-08700-00

$9.49

12

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

13

TENSIONER

3JD-22178-20-00

$43.99

14

BOLT, FLANGE

95817-08090-00

$4.77

15

NUT, U

95617-08100-00

$9.49

16

WASHER (853)

90201-08326-00

Unavailable

17

BOLT, WASHER BASED(3RB)

90105-10733-00

Unavailable

18

NUT, U

95614-10100-00

Unavailable

19

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

20

BRACKET, REAR UPPER 1

4JY-21425-00-00

Unavailable

21

BOLT, FLANGE

95817-08050-00

Unavailable

22

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

23

NUT, SELF-LOCKING

90185-08169-00

Unavailable

24

BAND

1UA-82591-00-00

Unavailable

25

BRACKET, C.D.I. UNIT

4JY-21274-00-00

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable

27

WASHER, PLATE (8K2)

90201-06778-00

Unavailable

28

WRENCH, HEXAGON

56A-28166-00-00

Unavailable
