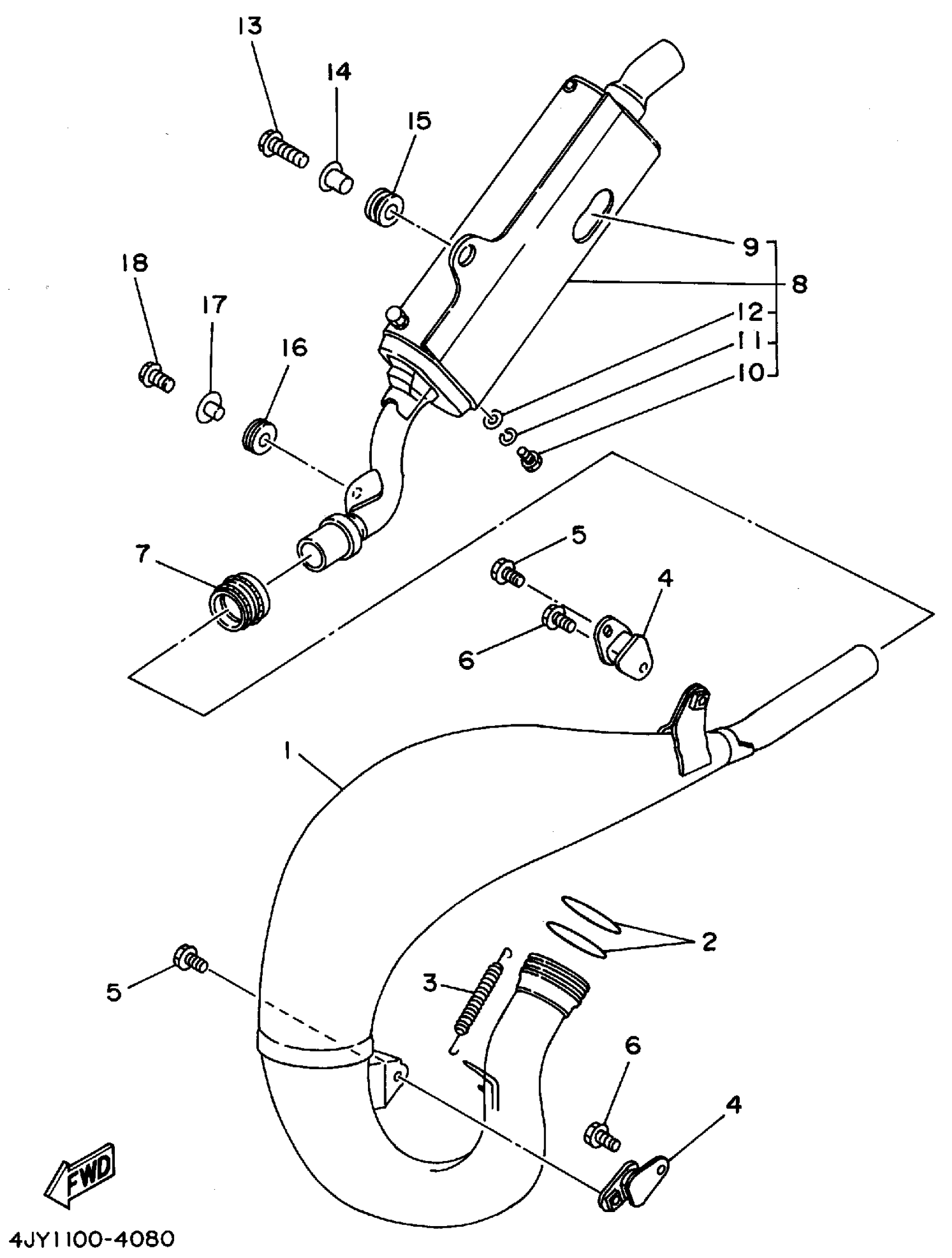

Yamaha YZ125F1 (YZ125F1) 1994 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY 1

4JY-14610-00-00

Unavailable

2

O-RING(1LX)

93210-42728-00

$16.99

3

SPRING, TENSION(3FV)

90507-20052-00

$4.99

4

STAY, MUFFLER 1

565-14771-01-00

$18.49

5

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

6

BOLT, WITH WASHER(3JD)

90119-06185-00

$10.49

7

JOINT, EXHAUST 1

4JY-14615-00-00

$61.99

8

SILENCER, EXHAUST

4JY-14753-00-00

Unavailable

9

. FIBER

4JY-1469A-00-00

Unavailable

10

BOLT(3JP)

97017-06010-00

$3.76

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

14

COLLAR(52E)

90387-063G3-00

$8.49

15

GROMMET(4EW)

90480-16561-00

$16.99

16

GROMMET (4N0)

90480-10289-00

Unavailable

17

COLLAR

90387-107R6-00

Unavailable

18

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable
