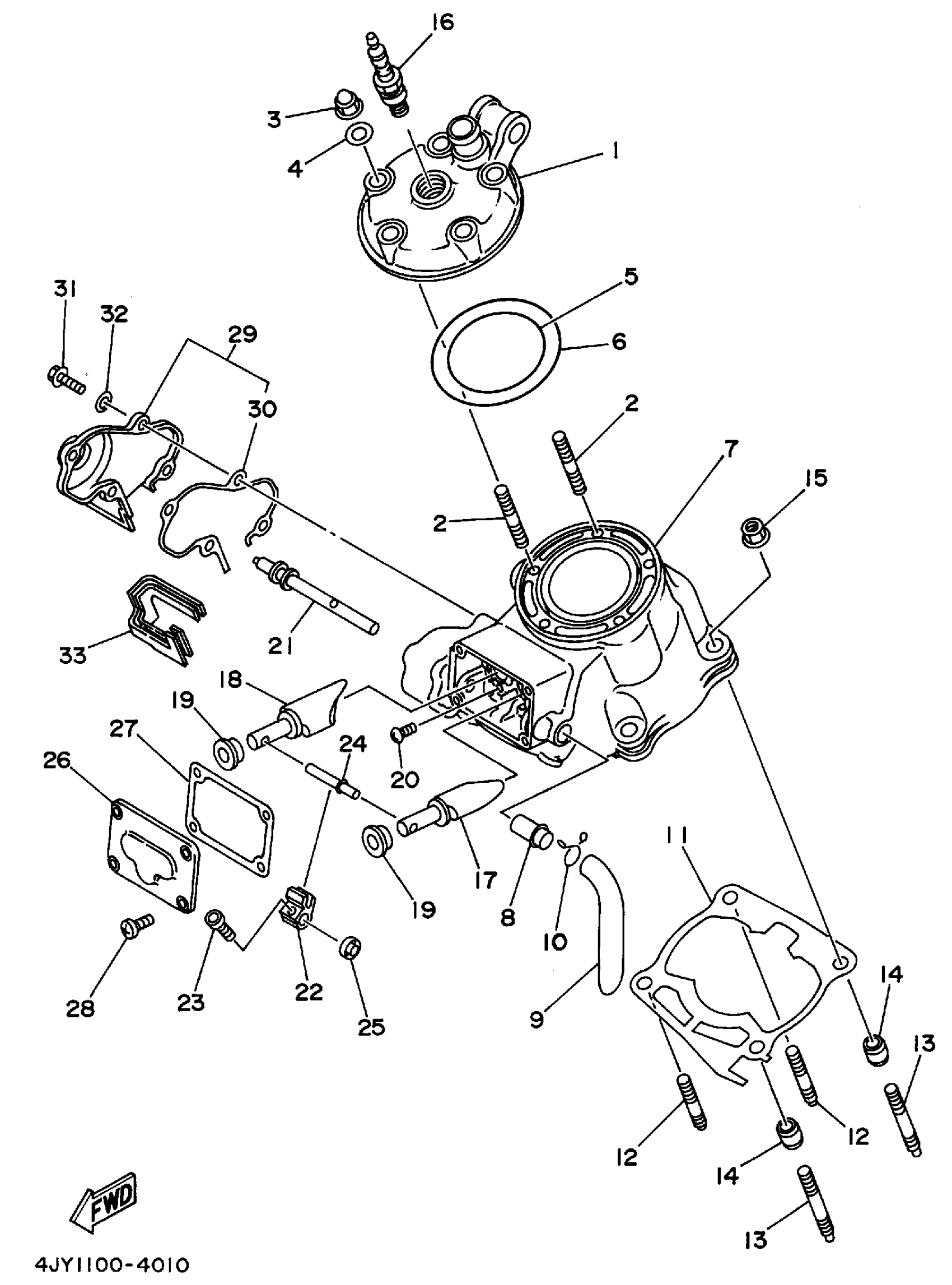

Yamaha YZ125F1 (YZ125F1) 1994 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

4JY-11111-01-00

Unavailable

2

BOLT, STUD (5V6)

90116-08394-00

$11.49

3

NUT, CROWN (4G0)

90176-08026-00

$14.99

4

WASHER, PLATE 3411117500

90201-08087-00

$3.71

5

O-RING (4U8)

93210-63442-00

$7.49

6

O-RING(3LD)

93210-90785-00

$11.49

7

CYLINDER

4PE-11310-00-00

Unavailable

8

PIPE, BREATHER 2

4JY-11167-00-00

Unavailable

9

PIPE, BREATHER 1

4JY-11166-00-00

$20.99

10

CLIP (7K7)

90467-11044-00

$8.49

11

GASKET, CYLINDER

4JY-11351-01-00

Unavailable

12

BOLT, STUD (3R3)

90116-08318-00

$7.49

13

BOLT, STUD (10V)

90116-08388-00

$9.49

14

PIN, DOWEL(3VD)

99530-10114-00

$2.55

15

NUT(55X)

90179-08491-00

$8.49

16

B9EG NGK SPLUG 4PK

B9E-G0000-00-00

Unavailable

17

VALVE 1

4JY-1131A-01-00

Unavailable

18

VALVE 2

4JY-1132A-01-00

Unavailable

19

HOLDER 1

4JY-1131E-00-00

Unavailable

20

SCREW, BIND

98903-05010-00

Unavailable

21

SHAFT 1

4JY-1131V-01-00

Unavailable

22

LEVER,LINK

4JY-11832-01-00

Unavailable

23

BOLT,SOCKET

91317-04008-00

Unavailable

24

SHAFT, VALVE

4JY-11812-00-00

Unavailable

25

OIL SEAL (8X12X3-371)

93104-08040-00

Unavailable

26

COVER

4JY-1131M-00-00

Unavailable

27

GASKET

4JY-11354-02-00

Unavailable

28

SCREW, BINDING

98907-05014-00

Unavailable

29

HOUSING 1

4JY-11991-01-00

Unavailable

30

GASKET

4JY-11993-01-00

Unavailable

31

BOLT(6A1)

97095-05016-00

Unavailable

32

WASHER, PLAIN (646)

92990-05600-00

Unavailable

33

SEAL, HOUSING

4JY-11995-00-00

Unavailable
