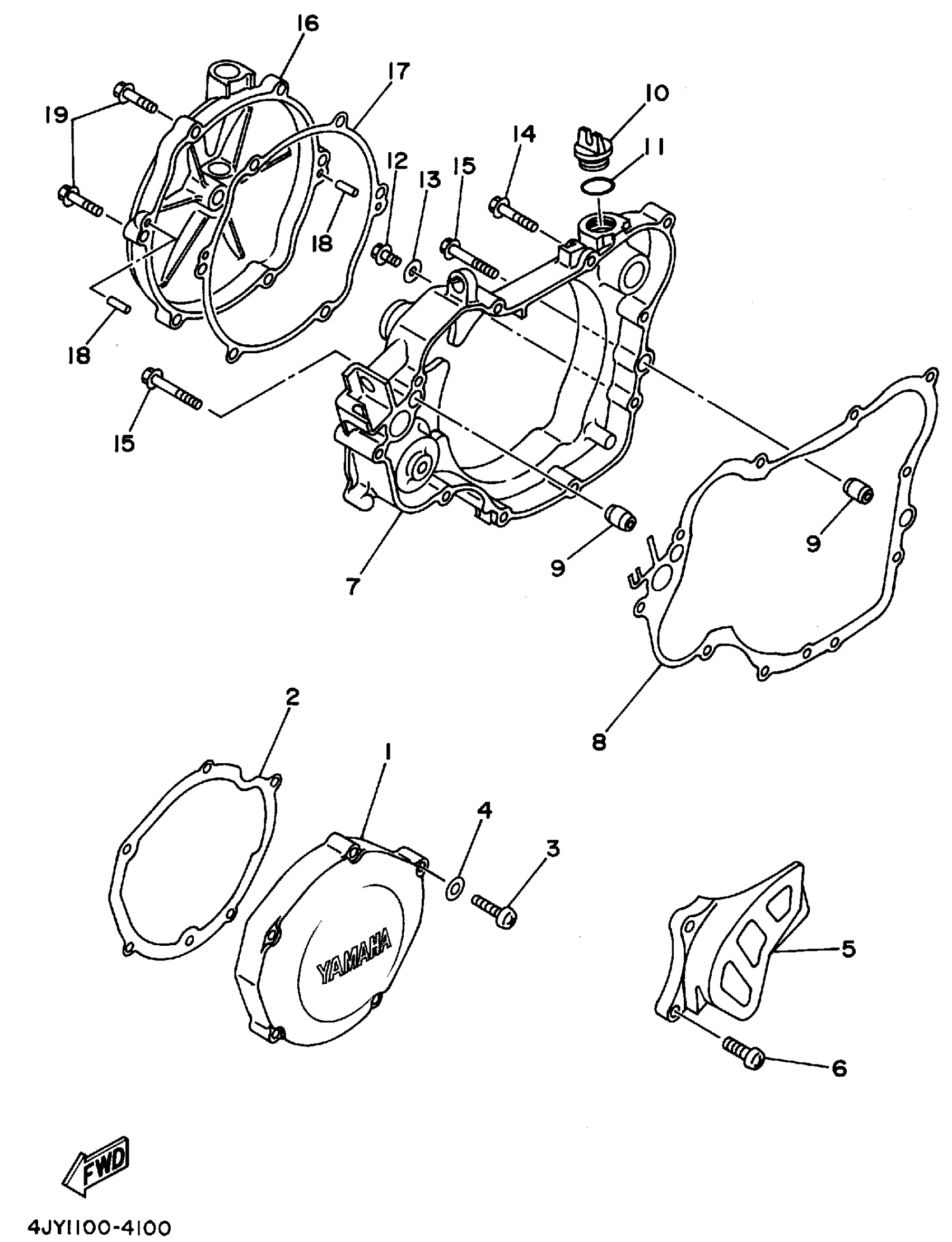

Yamaha YZ125F1 (YZ125F1) 1994 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

4JY-15411-00-00

Unavailable

GASKET, CRANKCASE COVER 1

4JY-15451-01-00

$19.99

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

COVER, CRANKCASE 2

4EX-15421-00-00

Unavailable

SCREW, PAN HEAD

98580-06016-00

Unavailable

COVER, CRANKCASE 3

4JY-15431-00-00

Unavailable

GASKET, CRANKCASE COVER 3

4JY-15462-00-00

$25.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

PLUG, OIL

3Y1-15363-10-00

$18.49

O-RING (646)

93210-19123-00

Unavailable

BOLT, FLANGE(2UJ)

95024-06010-00

$4.62

GASKET 256113960000

90430-06014-00

Unavailable

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

BOLT, FLANGE(4KM)

95024-06040-00

$9.49

COVER, GENERATOR

4JY-15415-00-00

Unavailable

GASKET, CARBURETOR COVER 2

4JY-15463-01-00

Unavailable

PIN,DOWEL (603)

93604-10011-00

Unavailable

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable
