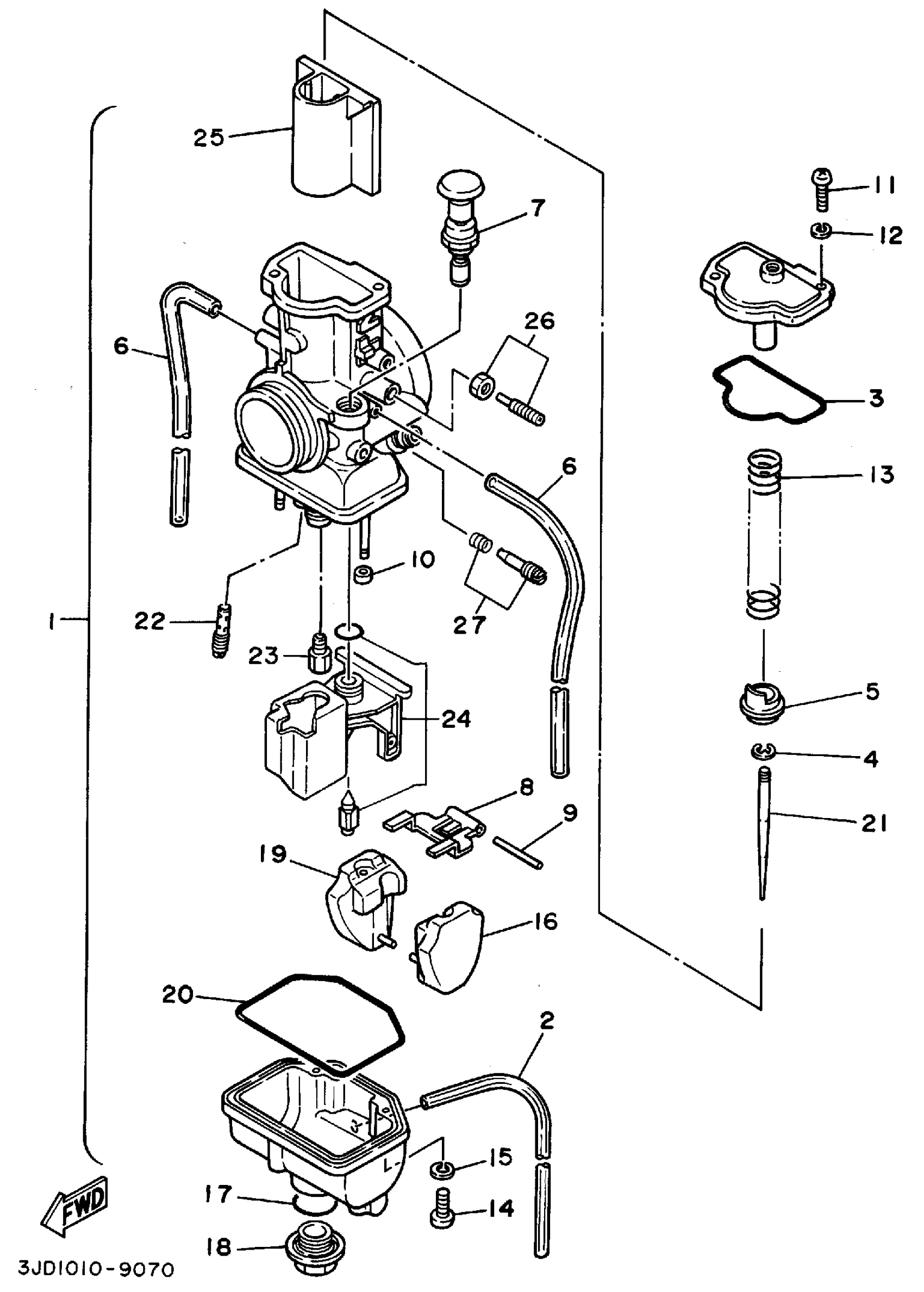

Yamaha YZ125F1 (YZ125F1) 1994 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

4JY-14101-00-00

Unavailable

2

PIPE 1

3XV-14348-20-00

$20.99

3

O-RING

3JD-14147-00-00

$11.99

4

CLIP

256-14919-00-00

$6.99

5

. RING

3JD-14194-00-00

Unavailable

6

PIPE, OVER FLOW

2J2-14196-00-00

$35.99

7

PLUNGER, STARTER

3JE-14171-00-00

$72.99

8

. ARM, FLOAT

363-14187-00-00

Unavailable

9

PIN, FLOAT

353-14186-00-00

$7.99

10

CAP

214-14118-00-00

Unavailable

11

SCREW, PAN HEAD

98517-04012-00

$3.88

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

. SPRING, THROTTLE VALVE

3JD-14131-00-00

Unavailable

14

SCREW PAN HEAD

98580-03010-00

$8.49

15

WASHER, SPRING

92990-03100-00

$8.49

16

. FLOAT

3XV-14185-10-00

Unavailable

17

O-RING

3JE-14561-00-00

Unavailable

18

. PLUG, SCREW

4DB-14115-00-00

Unavailable

19

. FLOAT

3XV-14185-00-00

Unavailable

20

O-RING

3JE-14147-00-00

Unavailable

21

. NEEDLE (J8-6EJ35-59)

3JD-14116-G0-00

Unavailable

21

. NEEDLE (J8-6EJ35-57)

3JD-14116-G1-00

Unavailable

21

. NEEDLE (J8-6EJ35-58)

3JD-14116-G2-00

Unavailable

21

. NEEDLE (J8-6EJ35-60)

3JD-14116-G3-00

Unavailable

21

. NEEDLE (J8-6EJ35-61)

3JD-14116-G4-00

Unavailable

22

. JET, PILOT (#125)

3H1-14142-12-00

Unavailable

22

JET, PILOT (# 15)

3H1-14142-15-00

Unavailable

22

JET, PILOT (# 17.5)

3H1-14142-17-00

Unavailable

22

JET, PILOT (# 20)

3H1-14142-20-00

Unavailable

23

JET, MAIN #300

137-14143-60-A0

Unavailable

23

JET, MAIN #310

137-14143-62-A1

Unavailable

23

JET, MAIN #320

137-14143-64-00

Unavailable

23

JET, MAIN #330

137-14143-66-A1

Unavailable

23

JET,MAIN #340

137-14143-68-00

Unavailable

23

JET,MAIN #350

137-14143-70-00

Unavailable

23

JET,MAIN #360

137-14143-72-00

Unavailable

24

NEEDLE VALVE SET

3JD-14107-35-00

Unavailable

25

. VALVE, THROTTLE (CA 40)

3JD-14112-40-00

Unavailable

25

. VALVE, THROTTLE (CA 45)

3JD-14112-45-00

Unavailable

25

. VALVE, THROTTLE (CA 50)

3JD-14112-50-00

Unavailable

25

. VALVE, THROTTLE (CA 55)

3JD-14112-55-00

Unavailable

25

. VALVE, THROTTLE (CA 60)

3JD-14112-60-00

Unavailable

26

THROTTLE SCREW SET

3JD-14103-00-00

Unavailable

27

AIR SCREW SET

4GL-14104-00-00

Unavailable
