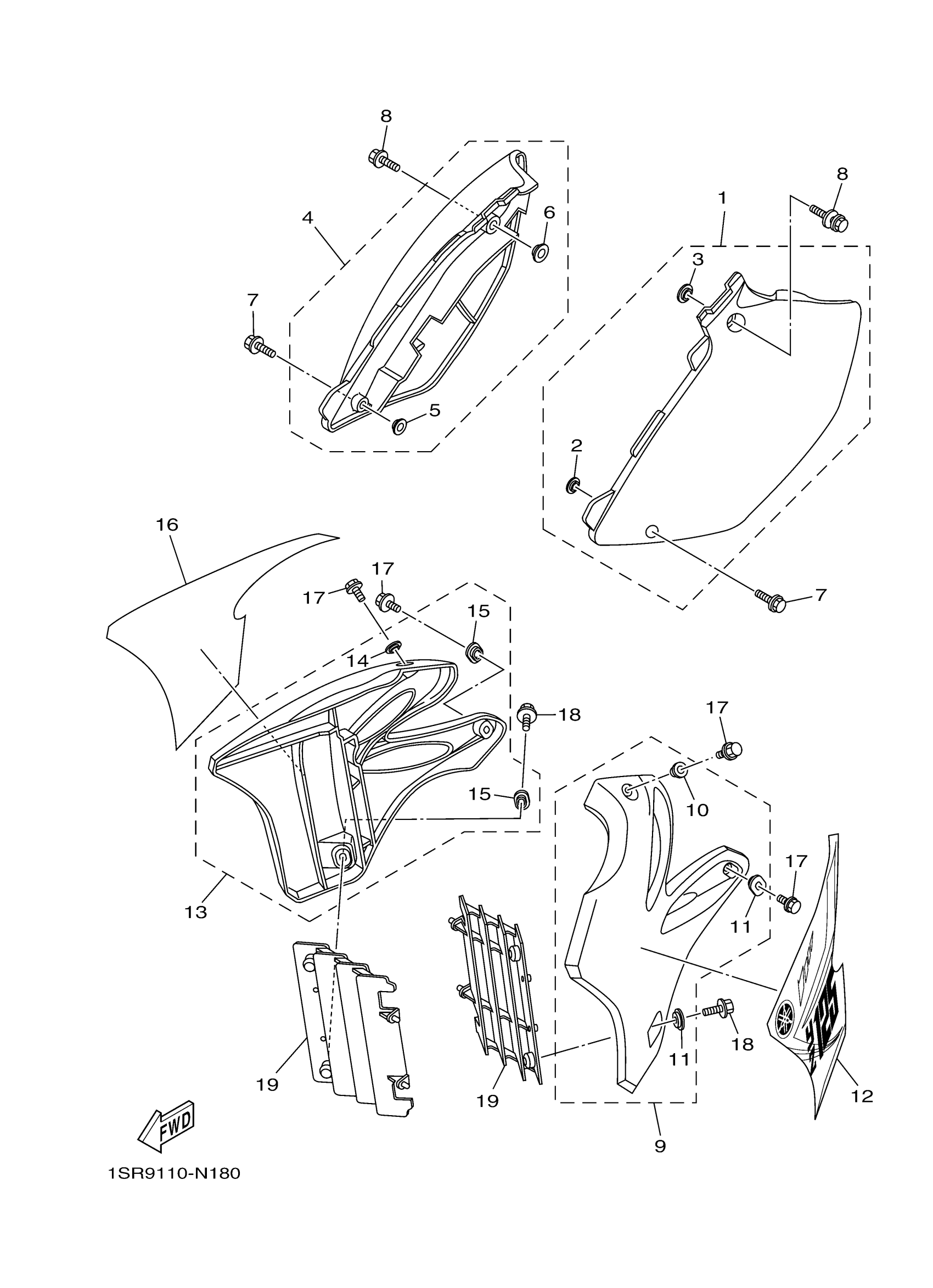

Yamaha YZ125E2 (YZ125) 1SR9 2014 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5NY-21711-00-00

$31.99

2

COLLAR

90387-06009-00

$10.49

3

COLLAR

5BE-21749-00-00

$6.99

4

COVER, SIDE 2

1C3-21721-50-00

$24.99

5

COLLAR

90387-06009-00

$10.49

6

COLLAR

5BE-21749-00-00

$6.99

7

BOLT, FLANGE

90105-06103-00

$4.88

8

BOLT, WITH WASHER

90119-08095-00

$8.49

9

SIDE COVER ASSY 3

5XE-21730-00-00

$34.99

10

COLLAR

90387-06009-00

$10.49

11

COLLAR

5TA-21749-00-00

$11.99

12

GRAPHIC 1

1SR-2173E-20-00

$44.99

13

SIDE COVER ASSY 4

5XE-21740-00-00

$32.99

14

COLLAR

90387-06009-00

$10.49

15

COLLAR

5TA-21749-00-00

$11.99

16

GRAPHIC 2

1SR-2173F-20-00

Unavailable

17

BOLT, FLANGE

90105-06064-00

Unavailable

18

SCREW, WITH WASHER

90159-06021-00

Unavailable

19

PANEL 1

5NL-2172A-20-00

Unavailable
