Description

Price

1

GEAR,IMPELLER SHAFT

4SS-12459-00-00

Unavailable

2

IMPELLER SHAFT ASSY

1LX-12450-01-00

$85.99

3

CIRCLIP

99080-07600-00

Unavailable

4

WASHER, PLATE (5F7)

90201-08512-00

$8.49

5

PIN,DOWEL (137)

93603-22028-00

$3.76

6

WASHER, PLATE (3L7)

90201-08784-00

$3.23

7

BUSH (214-17843-00)

90381-08002-00

$11.49

8

OIL SEAL

93103-10011-00

$46.99

9

BEARING

93300-60801-00

$21.99

10

COVER, HOUSING

2VN-12422-01-00

Unavailable

11

GASKET, HOUSING COVER 2

1LX-12428-01-00

$4.63

12

PIN,DOWEL (603)

93604-10011-00

$8.49

13

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

14

GASKET (4V2)

90430-06166-00

$3.76

15

BOLT, SMALL FLANGE

95027-06060-00

$2.87

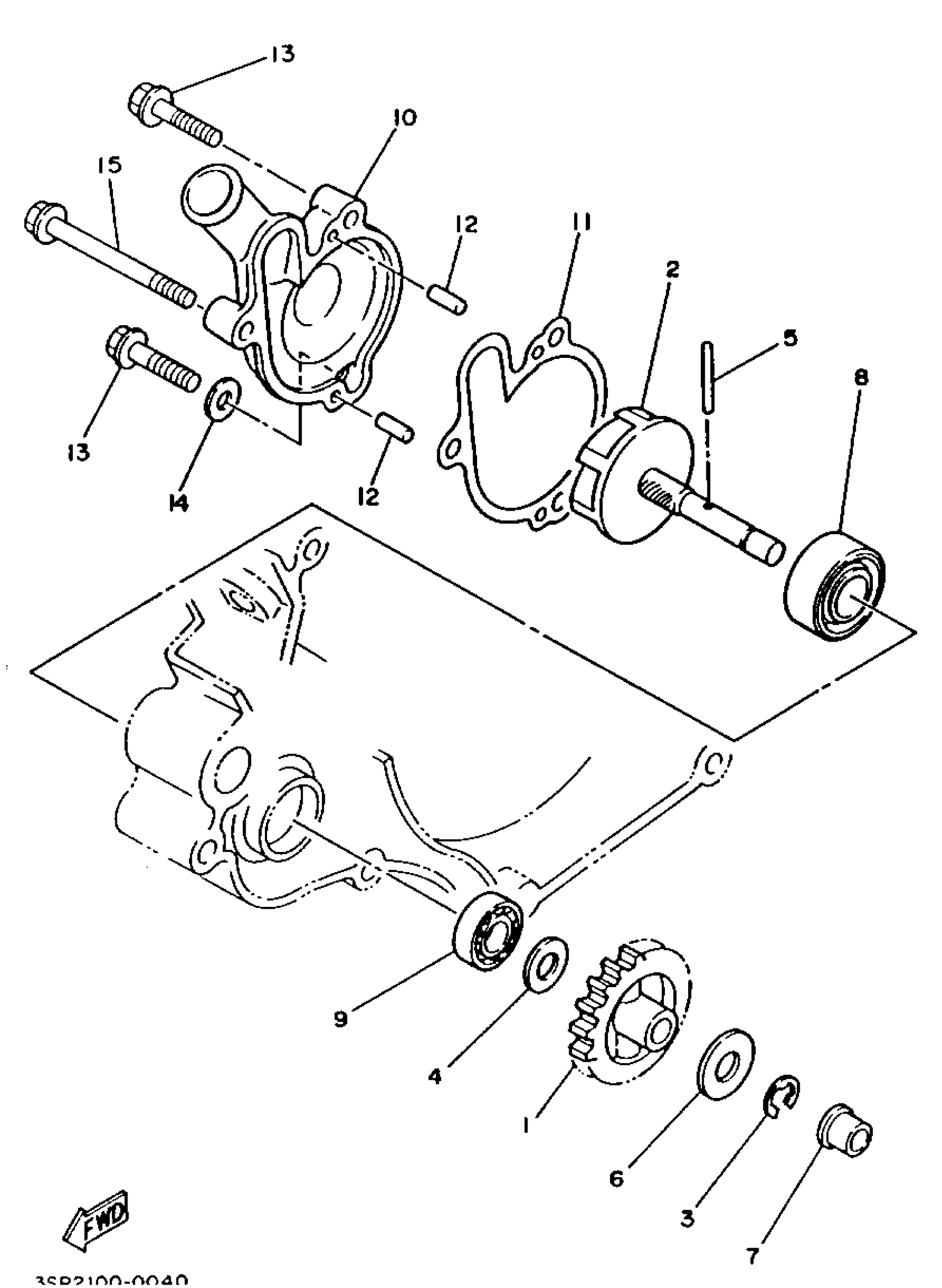

Yamaha YZ125E1 (YZ125E1) 1993 WATER PUMP Diagram

GEAR,IMPELLER SHAFT

IMPELLER SHAFT ASSY

CIRCLIP

WASHER, PLATE (5F7)

PIN,DOWEL (137)

WASHER, PLATE (3L7)

BUSH (214-17843-00)

OIL SEAL

BEARING

COVER, HOUSING

GASKET, HOUSING COVER 2

PIN,DOWEL (603)

BOLT, FLANGE(4KG)

GASKET (4V2)

BOLT, SMALL FLANGE
