1993 Yamaha YZ125E1 (YZ125E1) Frame Diagram

← All diagrams

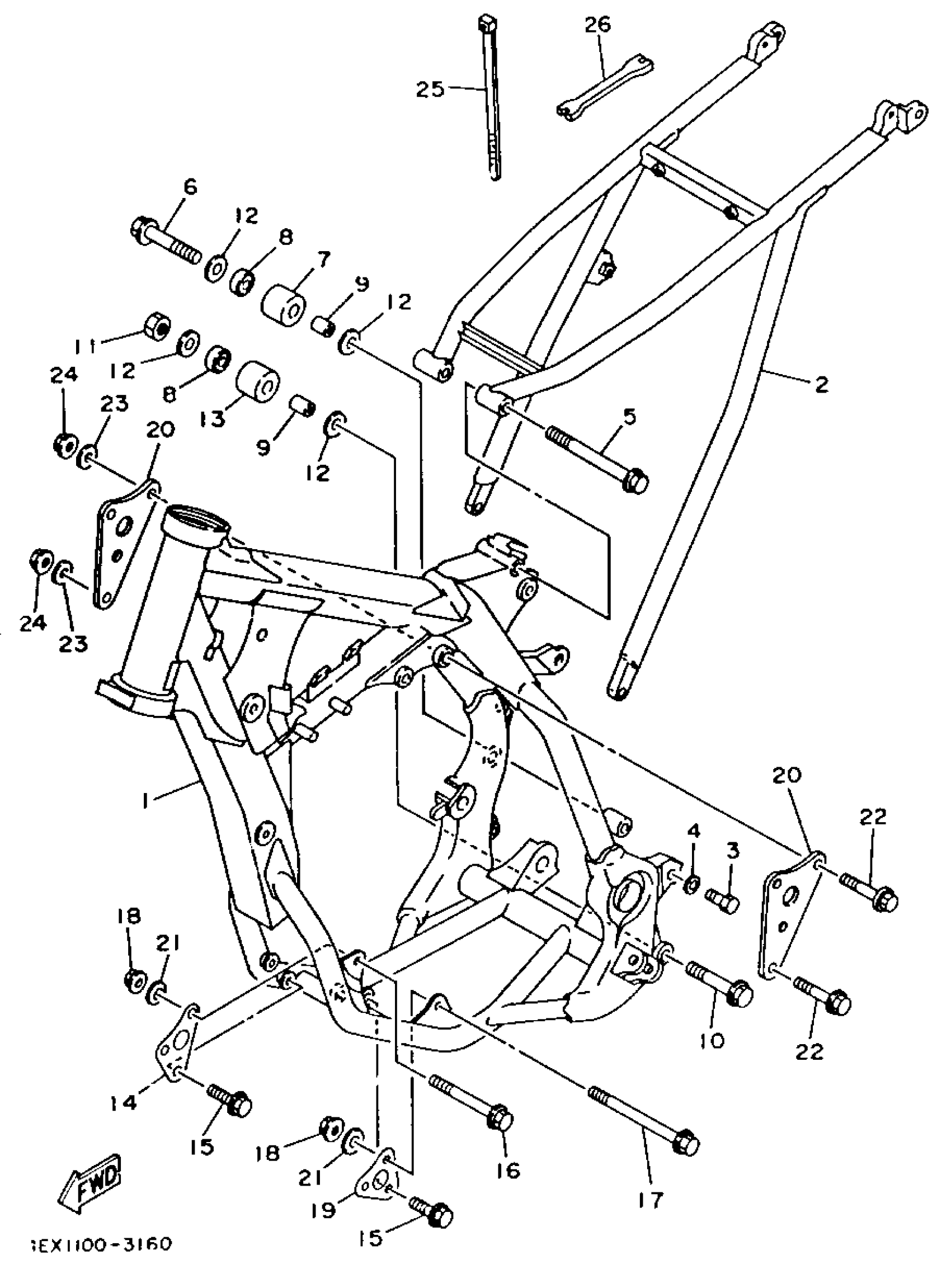

Find the part on the Frame diagram for your 1993 Yamaha YZ125E1 (YZ125E1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha YZ125E1 (YZ125E1) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

4EX-21101-00-UJ

1
Out of stock

2

REAR FRAME COMP.

4EW-21190-00-UJ

1
Out of stock

3

BOLT(4EW)

90106-08051-00

—

$19.88

In stock

4

WASHER, PLATE (7R4)

90201-080E2-00

1

$2.89

In stock

5

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

6

BOLT, FLANGE(4KG)

95024-08040-00

1

$6.17

In stock

7

TENSIONER

4EW-22178-01-00

—
Out of stock

8

BEARING (3X3)

93300-60804-00

1

$11.18

In stock

9

COLLAR(1NL)

90387-086N4-00

1

$8.31

In stock

10

BOLT, FLANGE

95027-08065-00

1
Out of stock

11

NUT, HEXAGON SMALL

95317-08700-00

1

$7.05

In stock

12

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

13

TENSIONER

3JD-22178-20-00

1

$37.74

In stock

14

BRACKET, FRONT LOWER 1

4EX-21417-00-00

1
Out of stock

15

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

16

BOLT, FLANGE

95817-08090-00

—

$3.54

In stock

17

BOLT, FLANGE(4EM)

95817-08120-00

—

$3.83

In stock

18

NUT, U

95617-08100-00

—

$6.78

In stock

19

BRACKET, REAR LOWER 1

4EX-21427-00-00

1
Out of stock

20

BRACKET, REAR UPPER 1

4EX-21425-00-00

1
Out of stock

21

WASHER (853)

90201-08326-00

—

$6.17

In stock

22

BOLT, FLANGE

95817-08050-00

—

$3.15

In stock

23

WASHER, PLATE (12X)

90201-087F0-00

—

$3.71

In stock

24

NUT, SELF-LOCKING

90185-08169-00

—

$7.09

In stock

25

BAND

1UA-82591-00-00

—
Out of stock

26

WRENCH, HEXAGON

56A-28166-00-00

1
Out of stock
