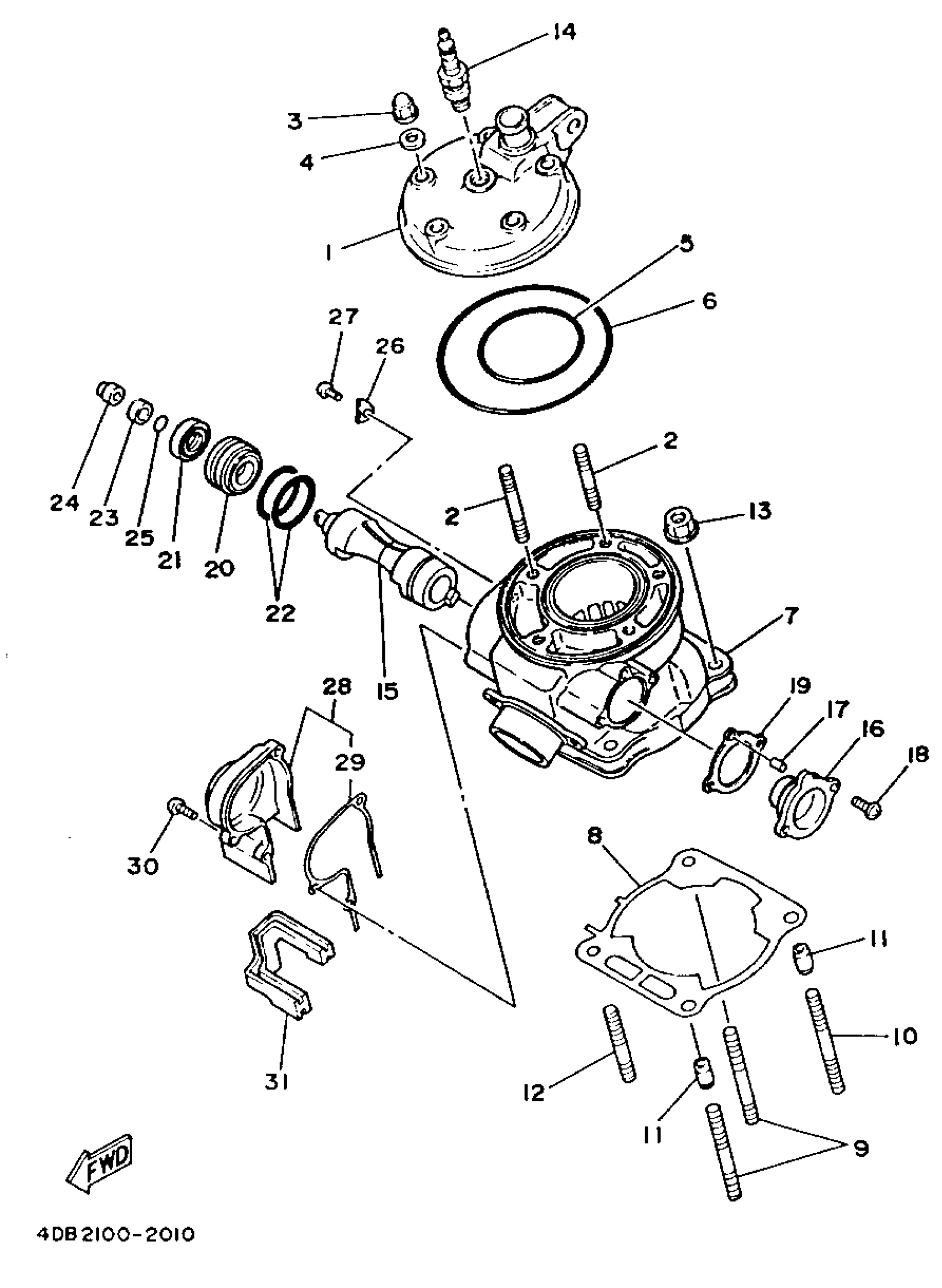

Yamaha YZ125E1 (YZ125E1) 1993 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

4EX-11111-00-00

Unavailable

2

BOLT, STUD (5V6)

90116-08394-00

$11.49

3

NUT, CROWN (4G0)

90176-08026-00

$14.99

4

WASHER, PLATE 3411117500

90201-08087-00

$3.71

5

O-RING(1LX)

93210-65721-00

$5.60

6

O-RING(1LX)

93211-07720-00

$12.49

7

CYLINDER 1

4EX-11311-20-00

Unavailable

8

GASKET, CYLINDER

1LX-11351-10-00

$8.99

9

BOLT, STUD (10V)

90116-08388-00

$9.49

10

BOLT, STUD (8H8)

90116-08302-00

$10.49

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

BOLT, STUD

90116-08533-00

Unavailable

13

NUT(55X)

90179-08491-00

$8.49

14

BR9EG NGK SPLUG 4PK

BR9-EG000-00-00

Unavailable

15

VALVE 1

4EX-1131A-00-00

Unavailable

16

HOLDER 1

4DB-W1132-00-00

Unavailable

17

PIN, DOWEL (278)

93604-08071-00

Unavailable

18

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

19

GASKET, HOLDER

4DB-1131N-00-00

Unavailable

20

HOLDER 2

4DB-1131F-00-00

Unavailable

21

OIL SEAL (5X4)

93104-16074-00

Unavailable

22

O-RING(50M)

93210-27672-00

Unavailable

23

COLLAR(3JE)

90387-102W0-00

Unavailable

24

BOSS, LEVER

3JE-11937-01-00

Unavailable

25

O-RING (341)

93210-09192-00

Unavailable

26

PLATE, THRUST 1

47X-11915-00-00

Unavailable

27

SCREW, BINDING

98907-05008-00

Unavailable

28

HOUSING 2

4DB-11992-01-00

Unavailable

29

. GASKET

4DB-11993-01-00

Unavailable

30

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

31

SEAL, HOUSING

1LX-11995-01-00

Unavailable
