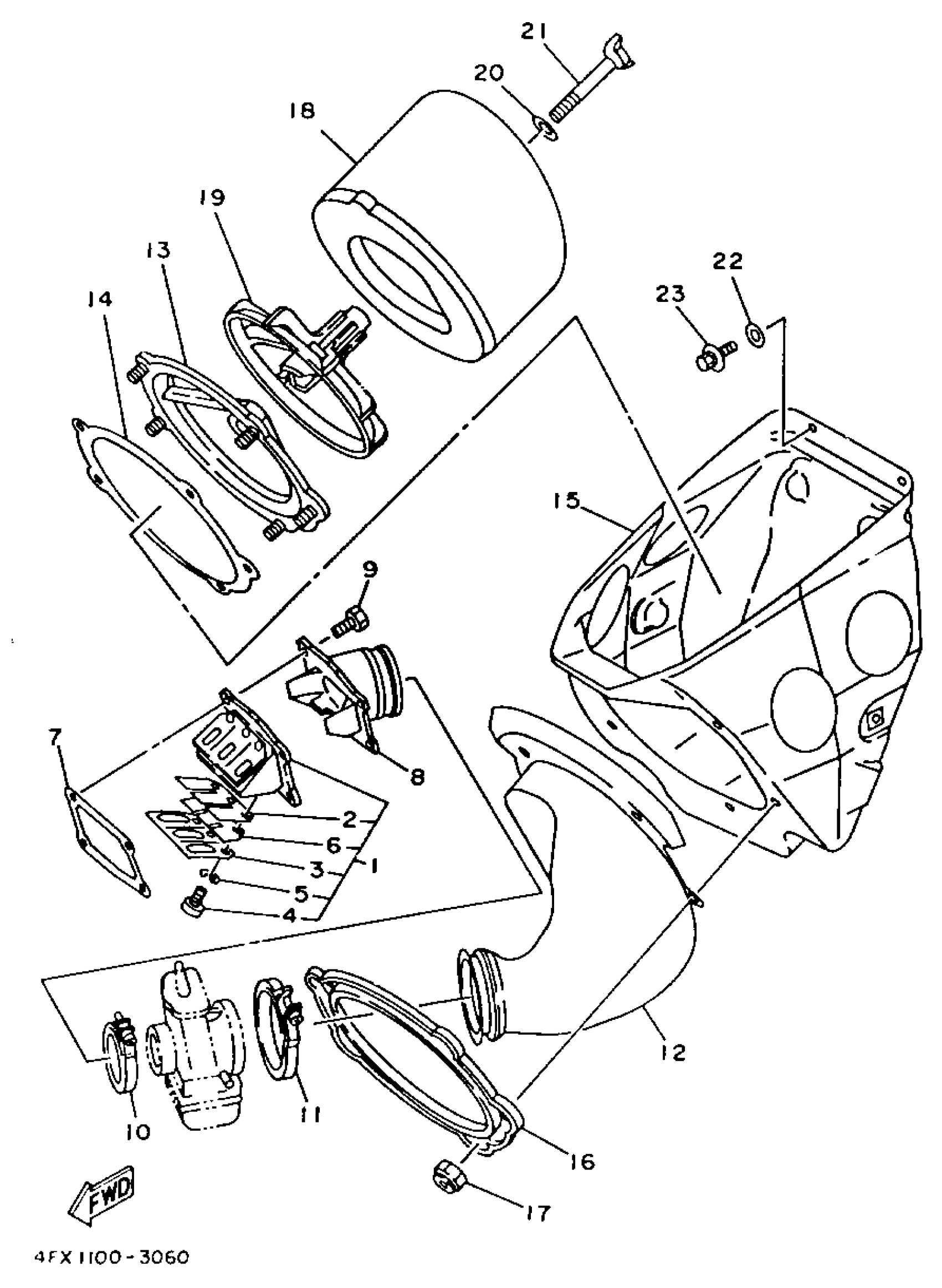

Yamaha YZ125E1 (YZ125E1) 1993 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

4EX-13610-01-00

Unavailable

2

REED, VALVE

55Y-13613-00-00

Unavailable

3

. STOPPER, REED VALVE

55Y-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

. REED, VALVE

4EX-13613-00-00

Unavailable

7

GASKET, VALVE SEAT

4TP-13621-00-00

$7.99

8

JOINT, CARBURETOR

4EX-13565-00-00

Unavailable

9

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

10

CLAMP, HOSE

90460-51109-00

Unavailable

11

CLAMP, HOSE (29L)

90460-68230-00

$16.99

12

JOINT,AIR CLEANER

4EX-14453-02-00

Unavailable

13

HOLDER,GUIDE

3JD-14459-01-00

Unavailable

14

SEAL

3JD-14462-00-00

$35.99

15

CASE, AIR CLEANER

4EW-14411-03-00

Unavailable

16

PLATE

5MV-14477-00-00

Unavailable

17

NUT, U

95617-05100-00

Unavailable

18

ELEMENT, AIR CLEANER

4PE-14451-02-00

Unavailable

19

GUIDE

3JD-14458-01-00

Unavailable

20

WASHER (4H7)

90209-06096-00

Unavailable

21

BOLT, WING

90122-06005-00

Unavailable

22

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

23

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
