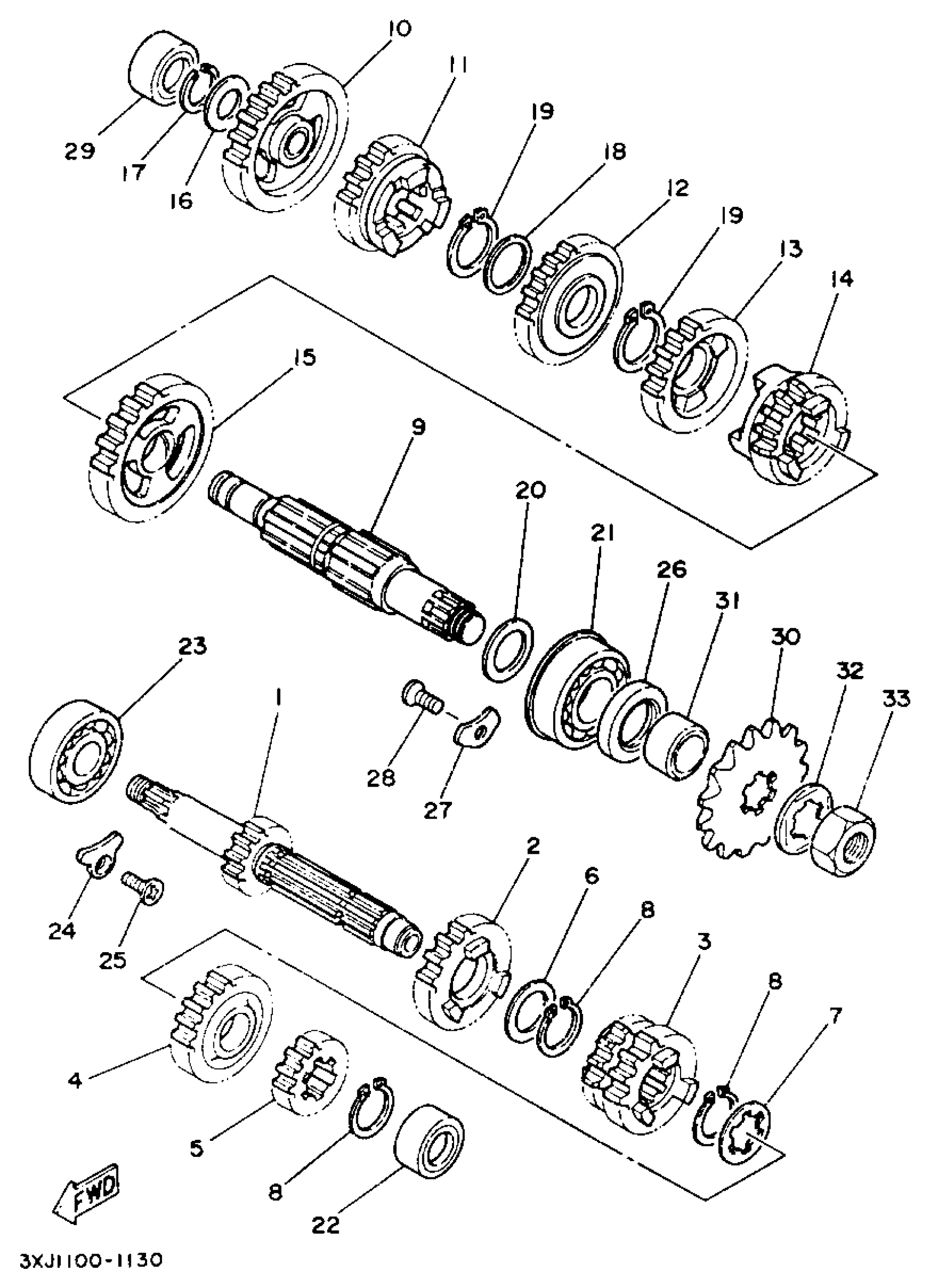

Yamaha YZ125E (YZ125E_F_G) 1978 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

3XJ-17411-00-00

Unavailable

2

GEAR, 5TH PINION (23T)

4EX-17151-00-00

Unavailable

3

GEAR, 3RD PINION

4EX-17131-01-00

Unavailable

4

GEAR, 6TH PINION

4EX-17161-00-00

Unavailable

5

GEAR,2ND PINION

99999-02968-00

Unavailable

6

WASHER, PLATE (537)

90201-22555-00

$8.49

7

WASHER (537)

90209-18135-00

$9.49

8

CIRCLIP (537)

93410-22039-00

$8.49

9

AXLE, DRIVE

3XJ-17421-00-00

Unavailable

10

GEAR, 1ST WHEEL

1LX-17211-02-00

Unavailable

11

GEAR,5TH WHEEL

4EX-17251-01-00

Unavailable

12

GEAR, 3RD WHEEL

3SR-17231-00-00

Unavailable

13

GEAR, 4TH WHEEL (27T)

4EX-17241-00-00

Unavailable

14

GEAR, 6TH WHEEL

4EX-17261-00-00

Unavailable

15

GEAR,2ND WHEEL

3XJ-17221-01-00

Unavailable

16

WASHER (566)

90201-15701-00

Unavailable

17

CIRCLIP

93440-15012-00

Unavailable

18

WASHER (5H0)

90209-18208-00

Unavailable

19

CIRCLIP (537)

93410-22039-00

$8.49

20

WASHER, PLATE

90201-206K8-00

Unavailable

21

BRG,R-B 6304 52MM 150G NT

93306-30411-00

Unavailable

22

BRG,CYL-CAL ROLLER 16G KY (1W1

93311-41530-00

Unavailable

23

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

24

PLATE, BEARING COVER

1LX-15383-00-00

Unavailable

25

SCREW, FLAT

98707-06012-00

Unavailable

26

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

27

PLATE, BEARING COVER

4XM-15383-00-00

Unavailable

28

SCREW, FLAT

98707-06012-00

Unavailable

29

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

30

SPROCKET, DRIVE (12T)

9383A-12017-00

Unavailable

30

SPROCKET,DRIVE 13T(2HG1746130)

9383A-13031-00

Unavailable

30

SPROCKET,DRIVE 14T(2HG1746140)

9383A-14054-00

Unavailable

31

COLLAR (3V3)

90387-202A0-00

Unavailable

32

WASHER, LOCK(2HG)

90215-20261-00

Unavailable

33

NUT (1L8)

90179-16226-00

Unavailable
