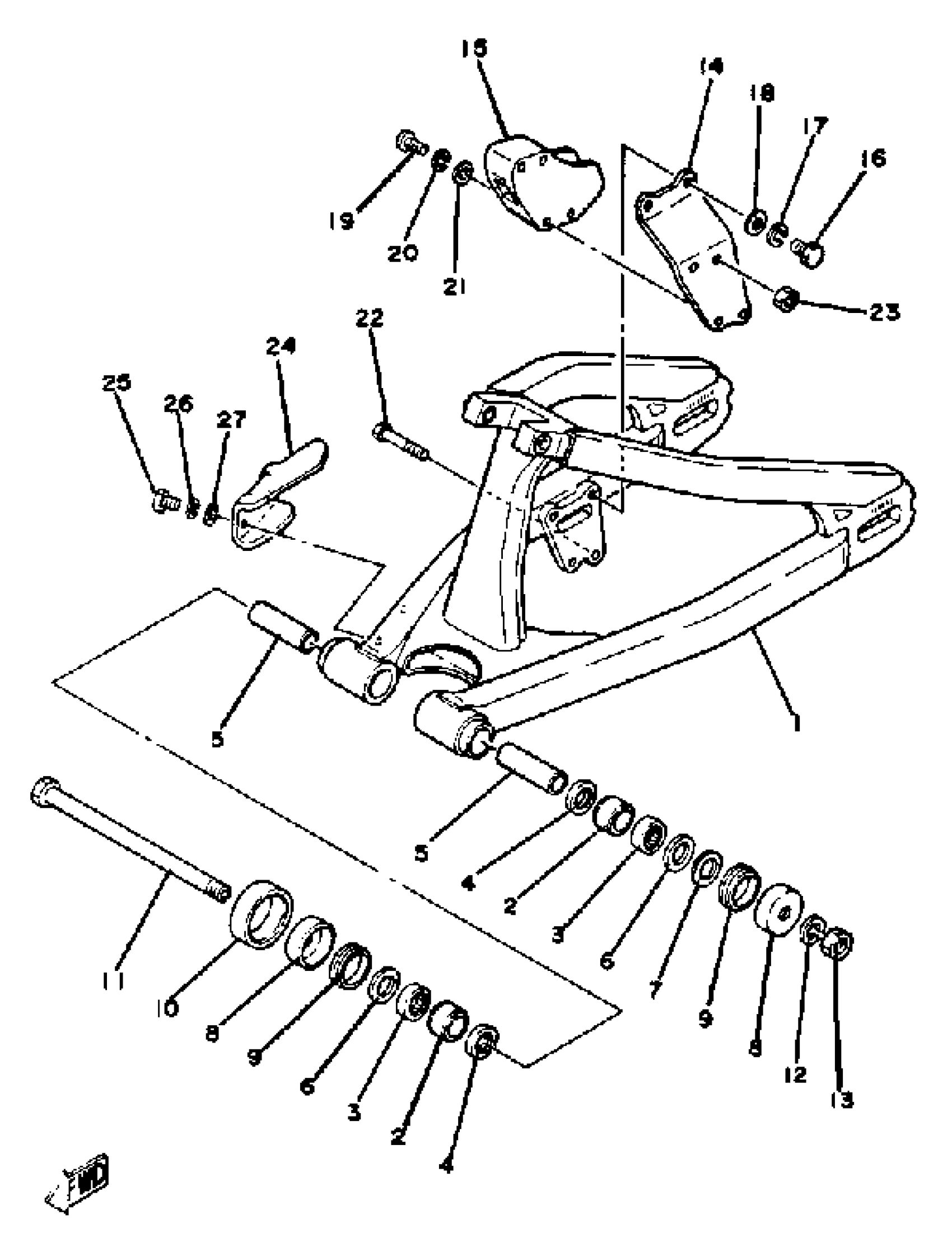

Yamaha YZ125E (YZ125E_F_G) 1978 SWING ARM YZ125G Diagram

#

Description
Price

1

REAR ARM

(3R3-22110-00-35)

Unavailable

2

BUSH, SPEC''L NYLON

90386-22097-00

Unavailable

3

BRG,CYL-CAL ROLLER 14.5G TM

93317-22214-00

$47.99

4

OIL SEAL, SDO-TYPE

93109-22018-00

Unavailable

5

BUSH, SOLID (3R4)

90380-16077-00

$42.99

6

WASHER, PLATE

90201-22680-00

Unavailable

7

SHIM,REAR ARM

240-22127-00-00

$6.99

8

COVER, THRUST

2K6-22128-01-00

$31.99

9

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

10

SEAL, GUARD

431-22151-03-00

$27.99

11

SHAFT, PIVOT

1W4-22141-00-00

Unavailable

12

WASHER(JN5)

92907-16100-00

$14.99

13

NUT

90170-16111-00

Unavailable

14

ARM, TENSIONER

3R3-22179-00-00

Unavailable

15

SUPPORT, CHAIN

3R3-22199-00-00

Unavailable

16

BOLT(JA9)

90101-08691-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

SCREW PAN HEAD

98580-06020-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

23

NUT, SELF-LOCKING

95617-06100-00

Unavailable

24

PORTECTOR, CHAIN

3R3-22147-00-00

Unavailable

25

BOLT, HEXAGON

97013-05010-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

. WASHER, PLAIN

92990-05200-00

Unavailable
