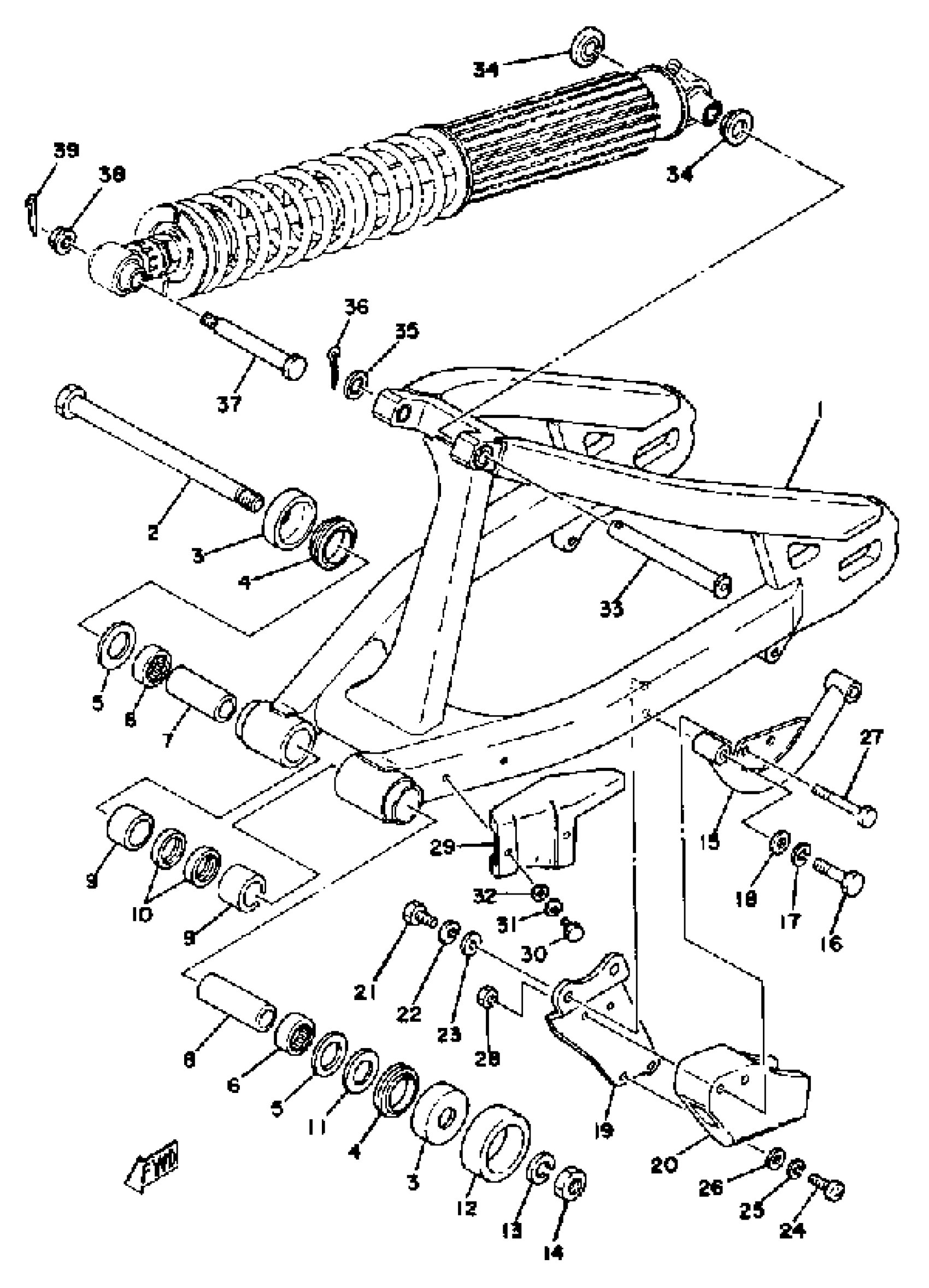

Yamaha YZ125E (YZ125E_F_G) 1978 SWING ARM YZ125F Diagram

#

Description
Price

1

REAR ARM

(2X3-22110-00-35)

Unavailable

2

SHAFT, PIVOT

1W1-22141-00-00

Unavailable

3

COVER, THRUST

2K6-22128-01-00

$31.99

4

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

5

WASHER, PLATE

90201-22680-00

Unavailable

6

BRG,CYL-CAL ROLLER 14.5G TM

93317-22214-00

$47.99

7

BUSH, SOLID

90380-16063-00

Unavailable

8

BUSH, SOLID

90380-16056-00

Unavailable

9

BUSH, SPEC''L NYLON

90386-22097-00

Unavailable

10

OIL SEAL, SDO-TYPE

93109-22018-00

Unavailable

11

SHIM,REAR ARM

240-22127-00-00

$6.99

12

SEAL, GUARD

431-22151-03-00

$27.99

13

WASHER(JN5)

92907-16100-00

$14.99

14

NUT

90170-16111-00

Unavailable

15

GUARD, CHAIN

3R5-22153-00-00

Unavailable

16

BOLT

97013-08035-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

ARM, TENSIONER

2X4-22179-00-00

Unavailable

20

SUPPORT, CHAIN

2X4-22199-00-00

Unavailable

21

BOLT(JA9)

90101-08691-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

SCREW PAN HEAD

98580-06020-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

BOLT, HEXAGON

97013-06050-00

Unavailable

28

NUT, SELF-LOCKING

95617-06100-00

Unavailable

29

PROTECTOR, CHAIN

3R4-22147-00-00

Unavailable

30

BOLT, HEXAGON

97013-05010-00

Unavailable

31

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

32

. WASHER, PLAIN

92990-05200-00

Unavailable

33

PIN,CLEVIS

90240-12059-00

Unavailable

34

COVER, THRUST

1W1-22128-00-00

Unavailable

35

WASHER, PLATE(663)

92990-12600-00

Unavailable

36

PIN, COTTER

91490-30030-00

Unavailable

37

BOLT

90109-08480-00

Unavailable

38

NUT, SPEC''L SHAPE

90179-08243-00

Unavailable

39

PIN, COTTER

91490-20025-00

Unavailable
