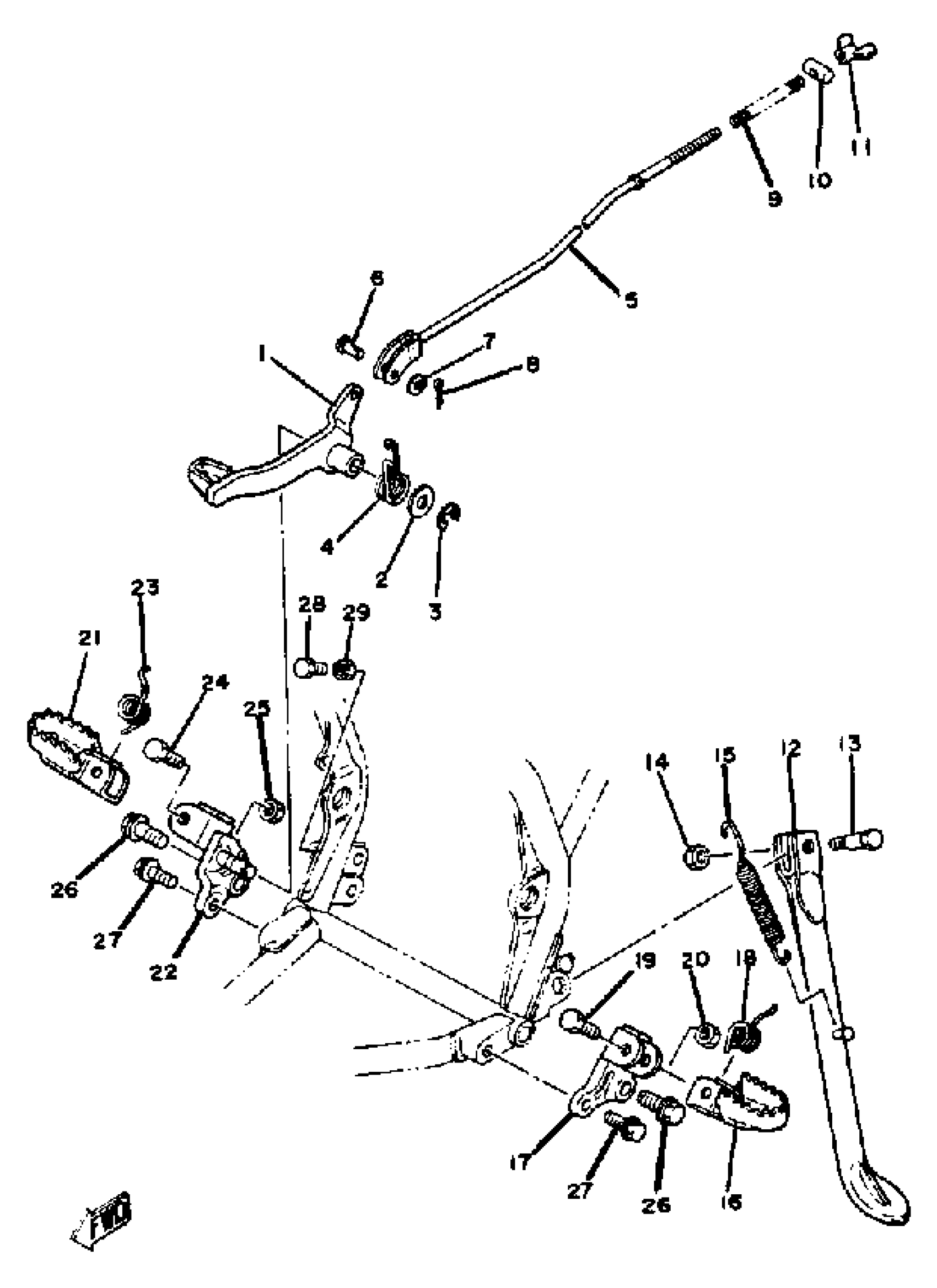

Yamaha YZ125E (YZ125E_F_G) 1978 STAND - FOOTREST YZ125G Diagram

#

Description
Price

1

PEDAL, BRAKE

(5X4-27211-00-90)

Unavailable

2

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

3

CIRCLIP(J51)

99080-09600-00

$2.55

4

SPRING, TORSION

90508-32438-00

Unavailable

5

ROD, BRAKE

3R3-27231-00-00

Unavailable

6

PIN, CLEVIS (24X)

90240-06103-00

$7.49

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING, (180-27236-00)

90501-10245-00

$8.49

10

PIN 1562723700

90249-12008-00

$8.49

11

NUT (25K)

90179-06411-00

$8.49

12

STAND, SIDE

3R3-27311-00-33

Unavailable

13

BOLT

90109-10473-00

$8.49

14

NUT (682)

95380-10700-00

Unavailable

15

SPRING (434)

90507-29008-00

$28.99

16

UNAVAILABLE IN PRICE BOOK (3R4-27411-00-33)

3R3-27411-00-00

Unavailable

17

BRACKET, FOOTREST 1

3R3-27412-00-00

Unavailable

18

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

19

BOLT (2W6)

90101-08428-00

Unavailable

20

NUT, U

95617-08100-00

Unavailable

21

FOOTREST 2

22W-27421-01-90

Unavailable

22

BRACKET, FOOTREST 2

3R3-27422-00-00

Unavailable

23

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

24

BOLT (2W6)

90101-08428-00

Unavailable

25

NUT, U

95617-08100-00

Unavailable

26

BOLT, WASHER BASED

90105-12096-00

Unavailable

27

BOLT, FLANGE

95817-10020-00

Unavailable

28

BOLT, HEXAGON

97017-06020-00

Unavailable

29

NUT(650)

95380-06700-00

Unavailable
