STAND - FOOTREST - BRAKE PEDAL YZ125E - F

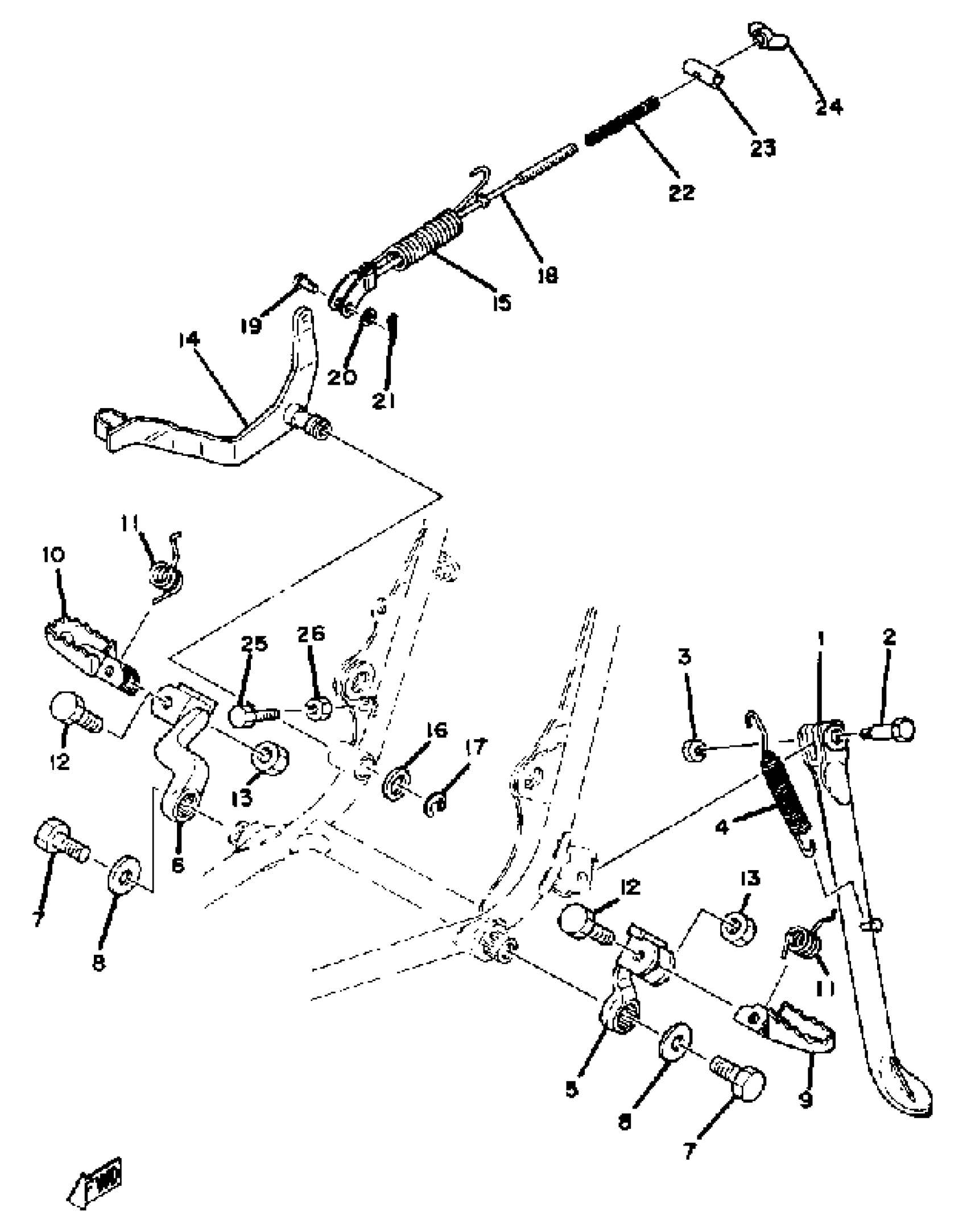

Yamaha YZ125E (YZ125E_F_G) 1978 STAND - FOOTREST - BRAKE PEDAL YZ125E - F Diagram
#
1
STAND, SIDE
1W1-27311-10-00
Unavailable
3
NUT (682)
95380-10700-00
Unavailable
5
. UNAVAILABLE IN PRICE BOOK
1W1-27412-11-00
Unavailable
5
BRACKET, FOOTREST 1
(2W6-27412-00-00)
Unavailable
5
BOLT (2W6)
90101-08428-00
Unavailable
5
BRACKET FOOTREST
(99999-01340-00)
Unavailable
6
. UNAVAILABLE IN PRICE BOOK
1W1-27422-13-00
Unavailable
6
BRACKET, FOOTREST 2
2W6-27422-00-00
Unavailable
6
BOLT (2W6)
90101-08428-00
Unavailable
6
BRACKET FOOTREST
(99999-01109-00)
Unavailable
7
BOLT,HEXAGON
97017-10016-00
Unavailable
9
FOOTREST 1
1W4-27411-00-00
Unavailable
9
FOOTREST 1
22W-27411-01-90
Unavailable
10
FOOTREST 2
1W4-27421-00-00
Unavailable
10
FOOTREST 2
22W-27421-01-90
Unavailable
11
SPRING, TORSION (214-27426-00)
90508-20023-00
Unavailable
12
BOLT
90101-08371-00
Unavailable
12
BOLT (2W6)
90101-08428-00
Unavailable
13
NUT, U
95617-08100-00
Unavailable
14
PEDAL, BRAKE
(1W1-27211-01-33)
Unavailable
14
PEDAL, BRAKE (2X3-27211-00-33)
2X3-27211-01-33
Unavailable
15
SPRING, TENSION
90506-18289-00
Unavailable
15
SPRING, TENSION (2X3)
90506-20193-00
Unavailable
16
WASHER PLATE 611441260000
90201-14212-00
Unavailable
16
WASHER, PLATE(663)
92990-12600-00
Unavailable
17
CIRCLIP (137)
93430-10015-00
Unavailable
17
CIRCLIP(J51)
99080-09600-00
Unavailable
18
ROD, BRAKE
2K6-27231-00-00
Unavailable
18
ROD, BRAKE
2X3-27231-00-00
Unavailable
19
PIN, CLEVIS (24X)
90240-06103-00
Unavailable
20
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
21
PIN, COTTER
91490-20025-00
Unavailable
22
SPRING, (180-27236-00)
90501-10245-00
Unavailable
23
PIN 1562723700
90249-12008-00
Unavailable
24
NUT (25K)
90179-06411-00
Unavailable
25
BOLT, HEXAGON
97017-06020-00
Unavailable
26
NUT(650)
95380-06700-00
Unavailable
